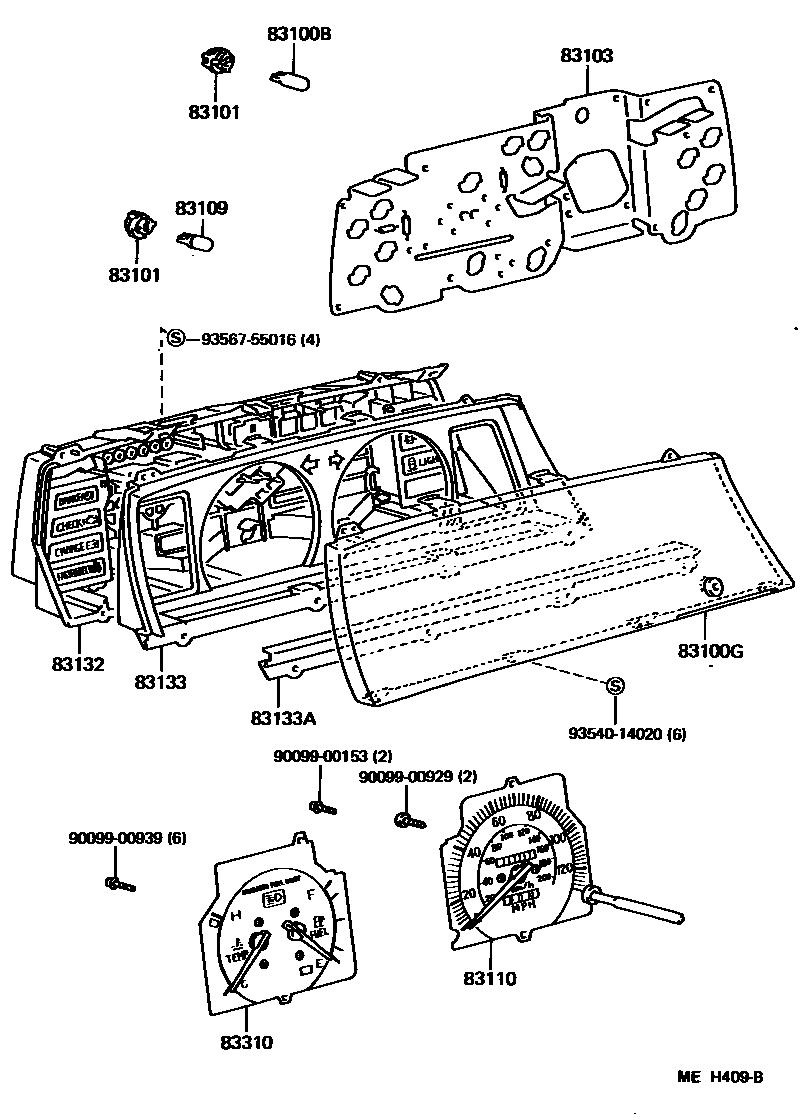

Toyota CAMRY — METER

0001 1W/O(TACHOMETER) 0002 1W(TACHOMETER) 0003 1W(DIGITAL SPEEDMETER) 0004 1SOCKET & BULB 0005 1

83100BBULB, COMBINATION METER, NO.1

main83109-10010iSV21..SED..LE;SV25,VZV21..LE198710-198808

12V 1.4W,ORANGE CAP,12V 1.4W ORANGE CAP

main90981-11018iSV2#,VZV21..LE..CND¥140198710-198808

12V 1.2W W/O SOCKET,W(TACHOMETER)

main90981-11018iSV21..SED..LE;SV25,VZV21..LE¥140198710-198808

12V 1.2W W/O SOCKET,W(DIGITAL SPEEDOMETER)

main90981-11018iSV21..SED..LE;SV25,VZV21..LE¥140198710-198808

12V 1.2W W/O SOCKET

main90981-11018iSV21¥140198608-198710

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034iSV2#..SED..(DX,STD)¥100198710-198808

12V 3.4W,W(TACHOMETER)

main99132-12034iSV21..SED..LE;SV25,VZV21..LE¥100198710-198808

12V 3.4W

main99132-12034iSV21..SED..LE;SV25,VZV21..LE¥100198710-198808

12V 3.4W,12V 3.4W

main99132-12034iVZV21..DX¥100198802-198808

12V 3.4W

main99132-12034iSV21¥100198608-198710

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83133-32390iSV2#,VZV21..LE..USA198710-198808

W(DIGITAL SPEEDOMETER)

main83133-32390iSV21..LE198608-198710

W/*DS

main83138-32050iSV2#,VZV21198710-198808

main83138-32050iSV21198608-198710

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iSV21..WG..LE;SV21,VZV21..DX198710-198808

12V 3.4W BULB

main83101-14030iSV21..WG198710-198808

12V 1.4W BULB

main83101-14030iSV21..WG198710-198808

W(TACHOMETER),12V 1.4W BULB

main83101-14030iSV21198608-198710

12V 3.4W BULB

main83101-14030iVZV21..DX198802-198808

main83101-14040iSV21,VZV21..DX198710-198808

12V 3.4W BULB

main83101-14040iSV21198608-198710

12V 1.4W BULB

main83101-32010iSV2#,VZV21..LE..USA198710-198808

W(DIGITAL SPEEDOMETER),12V 1.4W BULB

main83101-32010iSV21..LE198608-198710

W/*DS

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-32360iSV21198608-198708

W/TACHOMETER

main83247-32480iSV21..WG198608-198710

main83247-32480iSV21..WG..LE;SV2#,VZV21..DX,STD198710-198808

main83247-32880iSV21..SED..LE;SV25,VZV21..LE198710-198808

W(TACHOMETER)

main83247-32880iSV21..DX,LE198708-198710

W/TACHOMETER

83109BULB, COMBINATION METER, NO.2

main83109-20030iSV21..LE198608-198710

12V 1.4W,BLUE CAP,W/*DS

main83109-20030iSV2#,VZV21..LE..USA198710-198808

12V 1.4W,BLUE CAP

main83109-24020iSV21198608-198710

12V3.4W W(GREEN CAP),12V 3.4W,GREEN

main83109-24020iSV2#,VZV21198710-198808

12V3.4W W(GREEN CAP)

83110SPEEDOMETER ASSY

main83110-32400iSV21..SED..(DX,STD)..USA¥29,100198608-198710

sub83110-32401

main83110-32400iSV21..WG..USA;SV2#..SED..(DX,STD)..USA¥29,100198710-198804

sub83110-32401

main83110-32401iSV21..WG..USA;SV2#..SED..(DX,STD)..USA198804-198808

main83110-32410iSV21..WG..USA;SV21..SED..DX..USA¥29,100198710-198804

W(TACHOMETER)

sub83110-32411

main83110-32410iSV21..(DX,LE)..USA¥29,100198608-198710

W/TACHOMETER

sub83110-32411

main83110-32411iSV21..WG..USA;SV21..SED..DX..USA198804-198808

W(TACHOMETER)

main83110-32420iSV21..WG..LE..CND;SV21..(DX,STD)..CND¥29,100198710-198806

sub83110-32630¥29,100

main83110-32420iSV21..WG..CND¥29,100198608-198710

sub83110-32630¥29,100

main83110-32420iSV21..WG..LE..CND;SV21..(DX,STD)..CND¥29,100198608-198806

sub83110-32630¥29,100

main83110-32430iSV2#..SED..LE..CND¥29,100198710-198806

W(TACHOMETER)

sub83110-32640¥29,100

main83110-32430iSV21..(DX,LE)..CND¥29,100198608-198710

W/TACHOMETER

sub83110-32640¥29,100

main83110-32520iVZV21..LE..USA198802-198804

W(TACHOMETER)

sub83110-32600¥27,400

main83110-32530iVZV21..CND198802-198806

sub83110-32650¥29,100

main83110-32560iVZV21..DX¥31,100198802-198804

sub83110-32610

main83110-32600iVZV21..LE..USA¥27,400198804-198808

W(TACHOMETER)

main83110-32610iVZV21..DX198804-198808

main83110-32630iSV21..WG..LE..CND;SV21..(DX,STD)..CND¥29,100198806-198808

main83110-32640iSV2#..SED..LE..CND¥29,100198806-198808

W(TACHOMETER)

main83110-32650iVZV21..CND¥29,100198806-198808

83132CASE, COMBINATION METER

main83132-32040iSV2#,VZV21..LE..CND198710-198808

W(DIGITAL SPEEDOMETER)

main83132-32040iSV21..LE198608-198710

W/*DS

main83132-32120iSV21..WG198608-198710

main83132-32120iSV21..WG..LE;SV2#,VZV21..DX198710-198808

main83132-32300iSV21..WG..LE;SV21,VZV21..DX198710-198808

W(TACHOMETER)

main83132-32300iSV21..DX,LE198608-198710

W/TACHOMETER

main83132-32400iSV21..STD198708-198710

BASE GRADE

main83132-32400iSV21..STD198710-198808

main83132-32400iSV21..SED..DX198612-198708

BASE GRADE

83133PLATE, COMBINATION METER, NO.1

main83133-32330iSV2#,VZV21..LE..CND198710-198808

W(DIGITAL SPEEDOMETER)

main83133-32330iSV21..LE198608-198710

W/*DS

main83133-32550iSV21..WG198608-198710

main83133-32550iSV21..WG..LE;SV2#,VZV21..DX,STD198710-198808

main83133-32570iSV21..WG..LE;SV21,VZV21..DX198710-198808

W(TACHOMETER)

main83133-32570iSV21..DX,LE198608-198710

W/TACHOMETER

83133APLATE, COMBINATION METER, NO.2

main83133-32450iSV2#,VZV21..LE..CND198710-198808

W(DIGITAL SPEEDOMETER)

main83133-32450iSV21..LE198608-198710

W/*DS

main83133-32610iSV2#,VZV21198710-198808

main83133-32610iSV21198608-198710

83310GAGE ASSY, FUEL RECEIVER

main83243-32330iSV21..WG..USA¥9,100198608-198710

main83243-32330iSV21..WG..USA;SV25,VZV21..DX;SV21..SED..(DX,STD)..USA¥9,100198710-198808

main83243-32350iSV21..WG..LE..CND;SV21..(DX,STD)..CND¥9,100198710-198808

main83243-32350iSV21..WG..CND¥9,100198608-198710

main83243-32350iSV21..WG..LE..CND;SV21..(DX,STD)..CND¥9,100198608-198808

main83243-32450iVZV21..DX¥4,360198802-198808

W(TACHOMETER)

main83243-32450iSV21..(DX,LE)..USA¥4,360198608-198710

W/TACHOMETER

main83243-32470iVZV21..CND¥4,360198802-198808

main83243-32470iSV21..(DX,LE)..CND¥4,360198608-198710

W/TACHOMETER

main83243-32590iSV2#..SED..LE..USA198710-198808

W(TACHOMETER)

main83243-32610iSV21..DX..CND;SV21..WG..LE..CND198710-198808

W(TACHOMETER)

9009900153

main90099-00153

9009900929

main90099-00929

9009900939

main90099-00939¥140

9354014020

main93540-14020¥120

9356755016

main93567-55016¥110

15 parts on this diagram · 5 diagrams in section
