Toyota CAMRY — MAT & CARPET

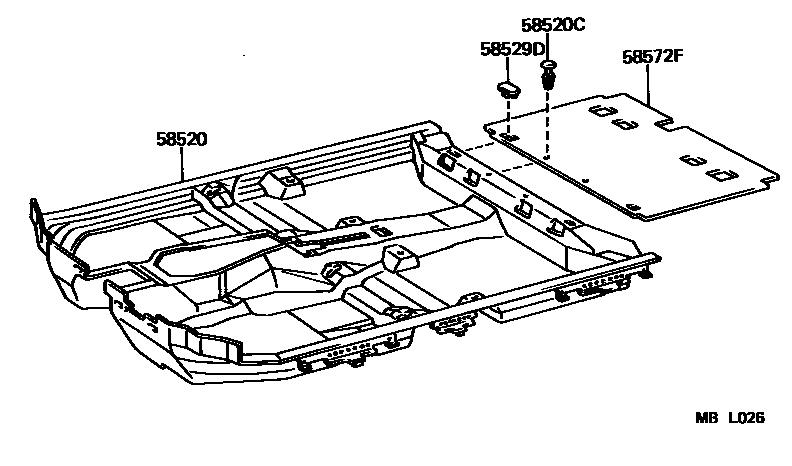

Parts diagram
58520CARPET ASSY, FRONT FLOOR
main58510-32150-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
main58510-32150-03i198710-198808
MEDIUM GRAY,TRIM1#
main58510-32150-04i198608-198710
BLUE,DARK BLUE,TRIM8#
main58510-32150-04i198710-198808
DARK BLUE,TRIM8#
main58510-32150-05i198710-198808
DARK BEIGE,TRIM4#
main58510-32150-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
main58510-32170-02i198710-198808
MAROON,TRIM3#
sub58510-32210¥85,300
main58510-32170-02i198612-198708
BASE GRADE,MAROON,MAROON,TRIM3#
sub58510-32210¥85,300
main58510-32170-02i198708-198710
MAROON,MAROON,TRIM3#
sub58510-32210¥85,300
main58510-32170-03i198710-198808
MEDIUM GRAY,TRIM1#
sub58510-32210¥85,300
main58510-32170-03i198612-198708
BASE GRADE,GRAY,MEDIUM GRAY,TRIM1#
sub58510-32210¥85,300
main58510-32170-03i198708-198710
GRAY,MEDIUM GRAY,TRIM1#
sub58510-32210¥85,300
main58510-32170-04i198708-198710
BLUE,DARK BLUE,TRIM8#
sub58510-32210¥85,300
main58510-32170-04i198612-198708
BASE GRADE,BLUE,DARK BLUE,TRIM8#
sub58510-32210¥85,300
main58510-32170-04i198710-198808
DARK BLUE,TRIM8#
sub58510-32210¥85,300
main58510-32170-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
sub58510-32210¥85,300
main58510-32170-05i198612-198708
BASE GRADE,BEIGE,DARK BEIGE,TRIM4#
sub58510-32210¥85,300
main58510-32170-05i198710-198808
DARK BEIGE,TRIM4#
sub58510-32210¥85,300
main58510-32190-02i198710-198808
MAROON,TRIM3#
sub58510-32210¥85,300
sub58510-32190¥85,300
main58510-32190-02i198608-198710
MAROON,MAROON,TRIM3#
sub58510-32210¥85,300
sub58510-32190¥85,300
main58510-32190-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub58510-32210¥85,300
sub58510-32190¥85,300
main58510-32190-03i198710-198808
MEDIUM GRAY,TRIM1#
sub58510-32210¥85,300
sub58510-32190¥85,300
main58510-32190-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub58510-32210¥85,300
sub58510-32190¥85,300
main58510-32190-04i198710-198808
DARK BLUE,TRIM8#
sub58510-32210¥85,300
sub58510-32190¥85,300
main58510-32190-05i198710-198808
DARK BEIGE,TRIM4#
sub58510-32210¥85,300
sub58510-32190¥85,300
main58510-32190-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub58510-32210¥85,300
sub58510-32190¥85,300
main58510-32200-03i198710-198808
MEDIUM GRAY,TRIM1#
main58510-32200-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
main58510-32200-04i198710-198808
DARK BLUE,TRIM8#
main58510-32200-04i198608-198710
BLUE,DARK BLUE,TRIM8#
main58510-32200-05i198710-198808
DARK BEIGE,TRIM4#
main58510-32200-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
main58510-32210-02i198710-198808
MAROON,TRIM3#
sub58510-32210¥85,300
main58510-32210-02i198608-198710
MAROON,MAROON,TRIM3#
sub58510-32210¥85,300
main58510-32210-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub58510-32210¥85,300
main58510-32210-03i198710-198808
MEDIUM GRAY,TRIM1#
sub58510-32210¥85,300
main58510-32210-04i198710-198808
DARK BLUE,TRIM8#
sub58510-32210¥85,300
main58510-32210-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub58510-32210¥85,300
main58510-32210-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub58510-32210¥85,300
main58510-32210-05i198710-198808
DARK BEIGE,TRIM4#
sub58510-32210¥85,300
main58510-32220-03i198708-198710
GRAY,MEDIUM GRAY,TRIM1#
sub58510-32150¥71,500
main58510-32220-03i198612-198708
BASE GRADE,GRAY,MEDIUM GRAY,TRIM1#
sub58510-32150¥71,500
main58510-32220-03i198710-198808
MEDIUM GRAY,TRIM1#
sub58510-32150¥71,500
main58510-32220-04i198708-198710
BLUE,DARK BLUE,TRIM8#
sub58510-32150¥71,500
main58510-32220-04i198612-198708
BASE GRADE,BLUE,DARK BLUE,TRIM8#
sub58510-32150¥71,500
main58510-32220-04i198710-198808
DARK BLUE,TRIM8#
sub58510-32150¥71,500
main58510-32220-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
sub58510-32150¥71,500
main58510-32220-05i198710-198808
DARK BEIGE,TRIM4#
sub58510-32150¥71,500
main58510-32220-05i198612-198708
BASE GRADE,BEIGE,DARK BEIGE,TRIM4#
sub58510-32150¥71,500
main58510-32240-02i198710-198808
MAROON,TRIM3#
main58510-32240-03i198710-198808
MEDIUM GRAY,TRIM1#
main58510-32240-04i198710-198808
DARK BLUE,TRIM8#
main58510-32260-02i198710-198808
MAROON,TRIM3#
sub58510-32240¥73,600
main58510-32260-03i198710-198808
MEDIUM GRAY,TRIM1#
sub58510-32240¥73,600
main58510-32260-04i198710-198808
DARK BLUE,TRIM8#
sub58510-32240¥73,600
main58510-32260-05i198710-198808
DARK BEIGE,TRIM4#
sub58510-32240¥73,600
main58510-32280-03i198710-198808
MEDIUM GRAY,TRIM1#
sub58510-32300¥46,000
main58510-32280-04i198710-198808
DARK BLUE,TRIM8#
sub58510-32300¥46,000
main58510-32280-05i198710-198808
DARK BEIGE,TRIM4#
sub58510-32300¥46,000
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-06016-01i198608-198710
BLACK,BLACK
sub90467-06016¥230
sub90467-07049¥90
main90467-06016-01i198710-198808
BLACK,TRIM1#,3#,4#,8#
sub90467-06016¥230
sub90467-07049¥90
58529DHOOK, FLOOR CARPET, NO.3
main58529-32020-02i198608-198710
MAROON,MAROON,TRIM3#
sub58529-32020¥930
main58529-32020-02i198710-198808
MAROON,TRIM3#
sub58529-32020¥930
main58529-32020-14i198710-198808
DARK BLUE,TRIM8#
sub58529-32020¥930
main58529-32020-14i198608-198710
BLUE,DARK BLUE,TRIM8#
sub58529-32020¥930
main58529-32020-15i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub58529-32020¥930
main58529-32020-15i198710-198808
DARK BEIGE,TRIM4#
sub58529-32020¥930
main58529-32020-23i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub58529-32020¥930
main58529-32020-23i198710-198808
MEDIUM GRAY,TRIM1#
sub58529-32020¥930
58572FCARPET, REAR FLOOR, FRONT
main58572-32020-02i198608-198710
MAROON,MAROON,TRIM3#
main58572-32020-02i198710-198808
MAROON,TRIM3#
main58572-32020-03i198710-198808
MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main58572-32020-03i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
main58572-32020-04i198608-198710
BLUE,DARK BLUE,TRIM8#
main58572-32020-04i198710-198808
DARK BLUE,DARK BLUE,TRIM8#
main58572-32020-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
main58572-32020-05i198710-198808
DARK BEIGE,TRIM4#

4 parts on this diagram · 1 diagram in section
