Toyota CAMRY — HORN

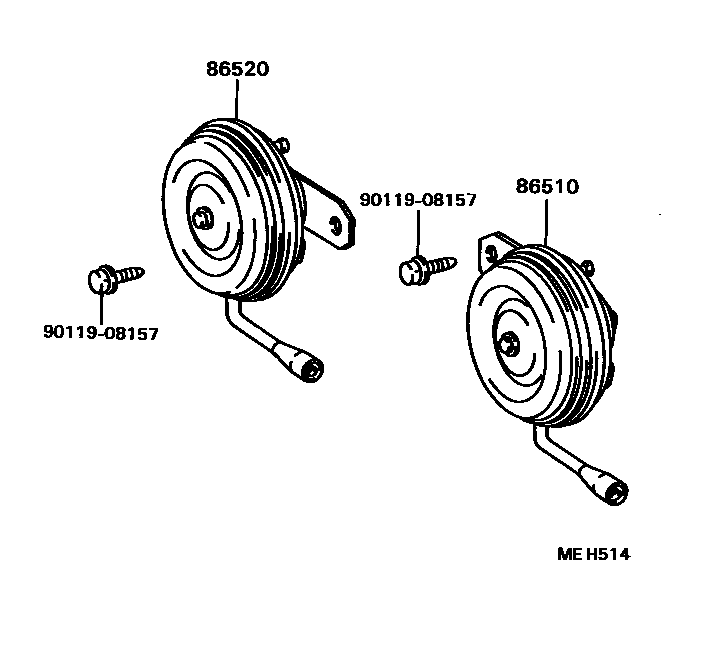

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-14220i¥3,760198608-198710

MARUKO

main86510-14220i¥3,760198710-198808

MARUKO

main86510-32020i¥3,440198608-198710

DENSO

sub86510-32H90¥3,750

main86510-32020i¥3,440198710-198808

DENSO

sub86510-32H90¥3,750

86520HORN ASSY, LOW PITCHED

main86520-14220i¥3,750198608-198710

MARUKO

main86520-14220i¥3,750198710-198808

MARUKO

main86520-32020i¥3,440198710-198808

DENSO

main86520-32020i¥3,440198608-198710

DENSO

9011908157

main90119-08157¥140

3 parts on this diagram · 1 diagram in section
