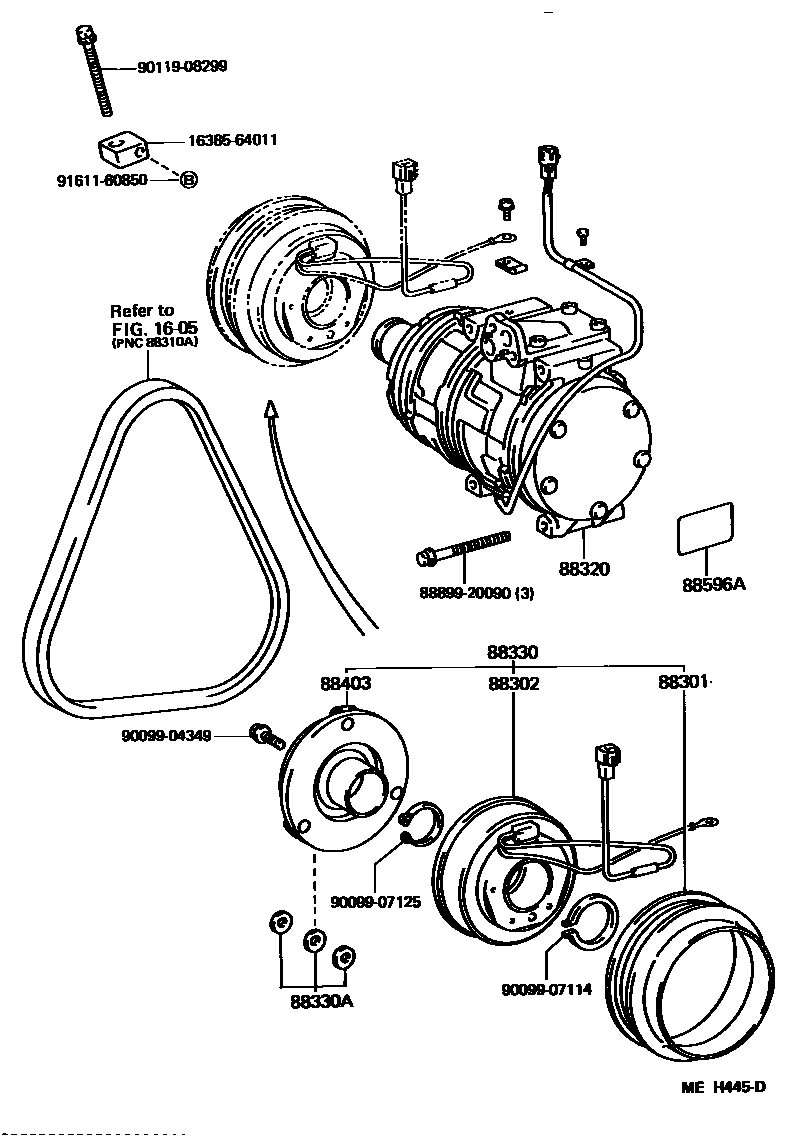

Toyota CAMRY — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20090iSV21198709-198808

sub88412-2B030

main88412-32020iSV21198608-198709

sub88412-20090

main88412-32030iVZV21..DX198802-198808

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-32020iSV21198608-198709

sub88411-32021

main88411-32021iSV2#198709-198808

main88411-32031iVZV21..LE198802-198808

sub88411-35050

88320COMPRESSOR ASSY, COOLER

main88320-32070iSV21198608-198808

sub88320-32080

main88320-32090iVZV21..LE198802-198808

sub88320-32091

88330CLUTCH ASSY, MAGNET

main88410-32030iSV21¥41,300198608-198808

sub88410-32060¥41,200

main88410-32040iVZV21..LE¥44,000198802-198808

sub88410-32050¥44,000

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iSV21198608-198808

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16010iSV21198608-198709

sub88403-16011

main88403-16011iSV21198709-198808

88596APLATE, CAUTION

main88356-12010iSV21198608-198808

1638564011SLIDER, FAN BELT ADJUSTING

main16385-64011¥910

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125¥250

9011908299

main90119-08299¥190

9161160850

main91611-60850¥120

15 parts on this diagram · 4 diagrams in section
