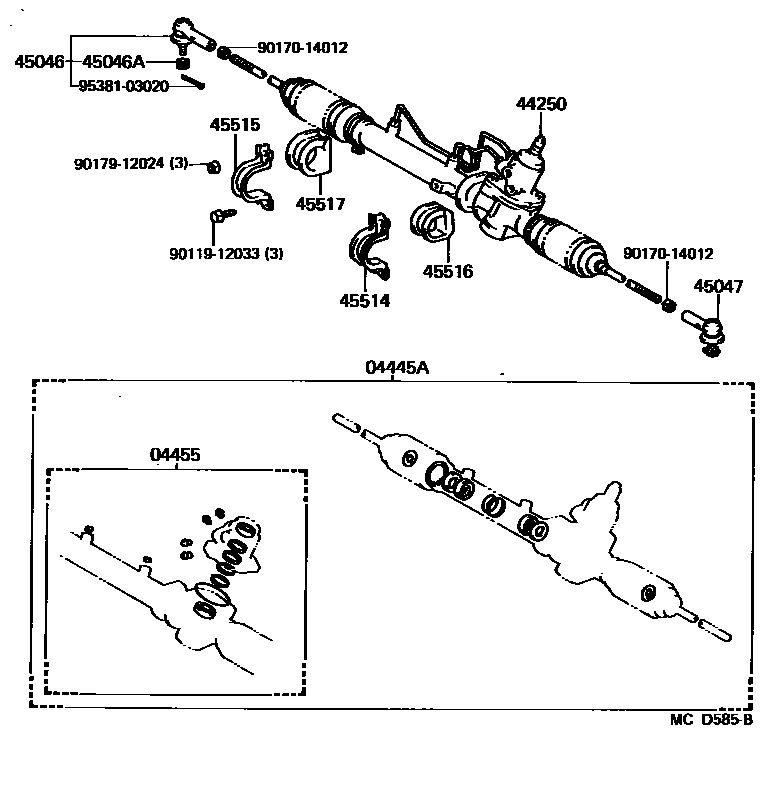

Toyota CAMRY — FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-32030iSV21¥6,300198608-198808

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-32020iSV21¥3,090198608-198808

sub04455-32022¥3,100

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20161iVZV21198802-198808

sub44250-20162¥97,600

sub45517-32050¥2,460

main44250-32070iSV21¥108,000198608-198808

sub44250-32071¥108,000

sub45517-32050¥2,460

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iSV21¥3,030198608-198808

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iSV21¥130198608-198808

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iSV21¥3,030198608-198808

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-32090iSV2#,VZV21¥860198608-198808

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-32080iSV21¥850198608-198808

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-32020iSV21¥880198608-198808

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-32030iSV21¥1,190198608-198808

9011912033

main90119-12033¥350

9017014012

main90170-14012¥110

9017912024

main90179-12024¥100

9538103020

main95381-03020¥90

14 parts on this diagram · 2 diagrams in section
