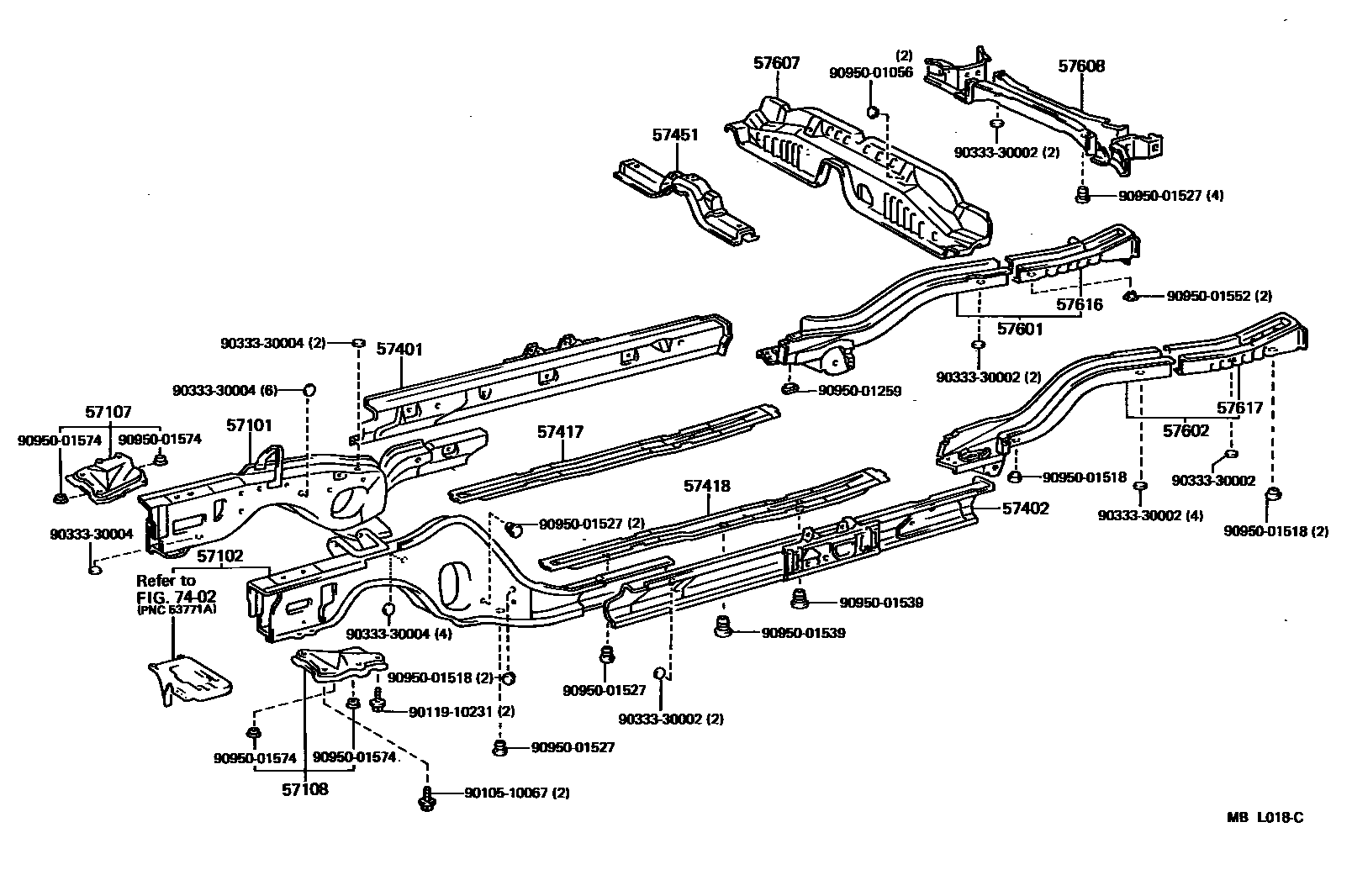

Toyota CAMRY — FLOOR SIDE MEMBER

0001 1 0002 1

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-32040iSV21¥67,700198608-198710

sub57101-32041¥68,000

main57101-32041iSV2#¥68,000198801-198808

main57101-32070iVZV21¥82,700198802-198808

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-32040iSV21¥67,700198608-198710

sub57102-32041¥68,000

main57102-32041iSV2#,VZV21¥68,000198801-198808

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-32020iSV2#,VZV21¥6,300198608-198808

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-32020iSV21¥6,300198608-198808

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-32030iSV21..USA¥15,900198608-198808

main57401-32040iSV21..CND¥15,900198608-198808

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-32030iSV2#,VZV21..USA¥15,900198608-198808

main57402-32040iSV2#,VZV21..CND¥15,900198608-198808

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-32030iSV21¥2,820198608-198808

sub57417-32031¥5,800

sub90950-01527¥110

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-32030iSV21..5F¥2,820198608-198808

sub57417-32031¥5,800

sub90950-01527¥110

57451MEMBER, FRONT FLOOR CROSS

main57408-32020iSV21,VZV21¥11,300198608-198808

main57408-32030iSV25¥11,300198710-198808

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-32040iSV21..WG¥29,300198608-198708

sub57601-32041¥29,400

sub57815-32010¥2,140

main57601-32041iSV21..WG¥29,400198708-198808

main57601-32070iSV21..SED¥29,300198608-198708

sub57601-32071¥28,800

sub57815-32010¥2,140

main57601-32071iSV21,VZV21..SED¥28,800198708-198808

main57601-32120iSV25¥66,100198710-198808

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-32040iSV21..WG¥29,300198608-198708

sub57602-32041¥29,400

sub57816-32010¥2,140

main57602-32041iSV21..WG¥29,400198708-198808

main57602-32070iSV21..SED¥29,300198608-198708

sub57602-32071¥28,800

sub57816-32010¥2,140

main57602-32071iSV21..SED¥28,800198708-198808

sub57602-32130¥29,200

main57602-32110iSV25198710-198808

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-32020iSV21¥15,600198608-198808

main57605-32040iSV25¥16,400198710-198808

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-32030iSV21..SED¥15,600198608-198808

sub57606-32040¥15,600

main57606-32040iSV21,VZV21..WG¥15,600198608-198808

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-32904iSV21,VZV21..WG¥10,300198608-198808

main57615-32906iSV21,VZV21..SED¥8,900198608-198808

main57615-32910iSV25198710-198808

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-32904iSV21..WG¥10,400198608-198712

sub57616-32911¥11,400

sub77216-32030¥940

sub77217-32021¥930

sub90119-10502¥150

sub90159-60357¥110

main57616-32906iSV21..SED¥9,200198608-198712

sub57616-32912¥8,900

sub77216-32030¥940

sub77217-32021¥930

sub90119-10502¥150

sub90159-60357¥110

main57616-32910iSV25198710-198808

main57616-32911iSV21,VZV21..WG¥11,400198712-198808

main57616-32912iSV21,VZV21..SED¥8,900198712-198808

7402

9010510067

main90105-10067¥320

9011910231

main90119-10231¥520

9033330002

main90333-30002¥70

9033330004

main90333-30004¥60

9095001056

main90950-01056¥230

9095001259

main90950-01259¥120

9095001518

main90950-01518¥110

9095001527

main90950-01527¥110

9095001539

main90950-01539¥110

9095001552

main90950-01552¥120

9095001574

main90950-01574¥200

27 parts on this diagram · 2 diagrams in section
