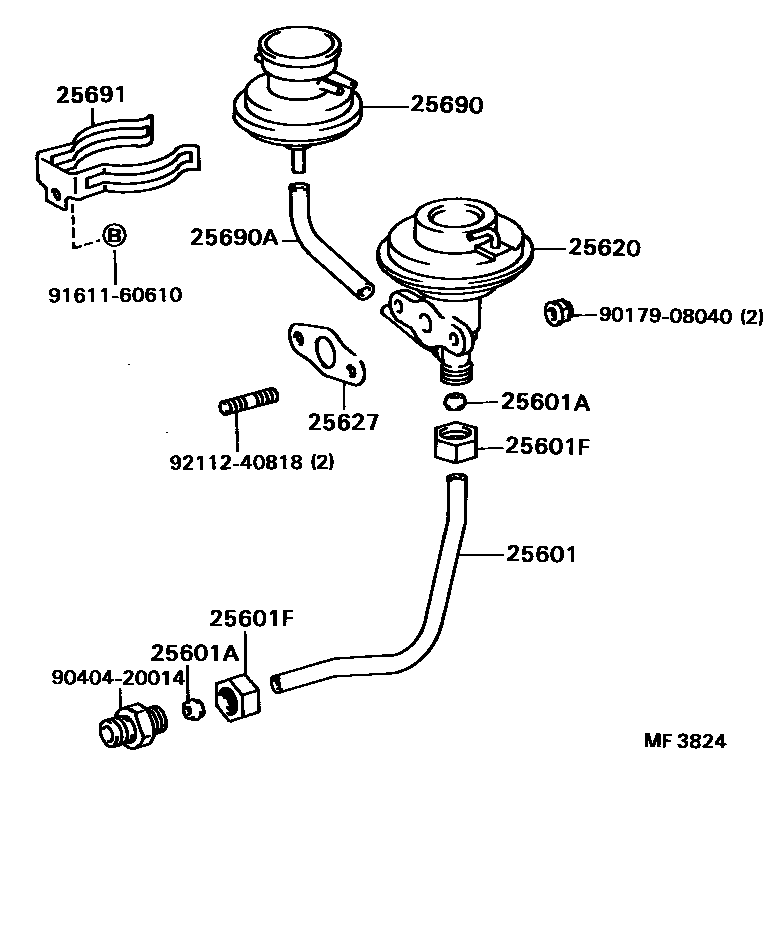

Toyota CAMRY — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-62010i2VZFE..VZV21¥6,400198802-198808

main25611-74030i3SFE..SV21¥1,080198608-198808

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i3SFE..SV21¥700198608-198808

main90410-16001i2VZFE..VZV21¥990198802-198808

25601FUNION(FOR EGR PIPE, NO.1)

main90402-20073i3SFE..SV21¥1,170198608-198808

main90404-22003i2VZFE..VZV21¥1,880198802-198808

25620VALVE ASSY, EGR

main25620-62010i2VZFE..VZV21..5F¥28,900198802-198808

main25620-62020i2VZFE..VZV21..4FC¥28,900198802-198808

main25620-74110i3SFE..SV21..5F¥19,700198608-198808

main25620-74120i3SFE..SV21..4FC¥19,700198608-198808

main25620-74140i3SFE..SV25..USA¥20,100198710-198808

CALIFORNIA SPEC

25627GASKET, EGR VALVE

main25627-62010i2VZFE..VZV21¥370198802-198808

main25627-74010i3SFE..SV21¥190198608-198808

sub25627-74011¥140

25690MODULATOR ASSY, EGR VACUUM

main25870-62010i2VZFE..VZV21¥7,900198802-198808

main25870-74090i3SFE..SV21..5F¥7,600198608-198808

main25870-74100i3SFE..SV21..4FC¥7,500198608-198808

sub25870-74090¥7,600

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-62010i2VZFE..VZV21¥800198802-198808

main90445-11065i3SFE..SV21¥320198608-198808

25691BRACKET, EGR VACUUM MODULATOR

main25691-62010i2VZFE..VZV21¥620198802-198808

main25691-74040i3SFE..SV21¥550198608-198808

sub25691-74080¥460

9017908040

main90179-08040¥100

9040420014

main90404-20014¥600

9161160610

main91611-60610¥120

9211240818

main92112-40818¥210

12 parts on this diagram · 2 diagrams in section
