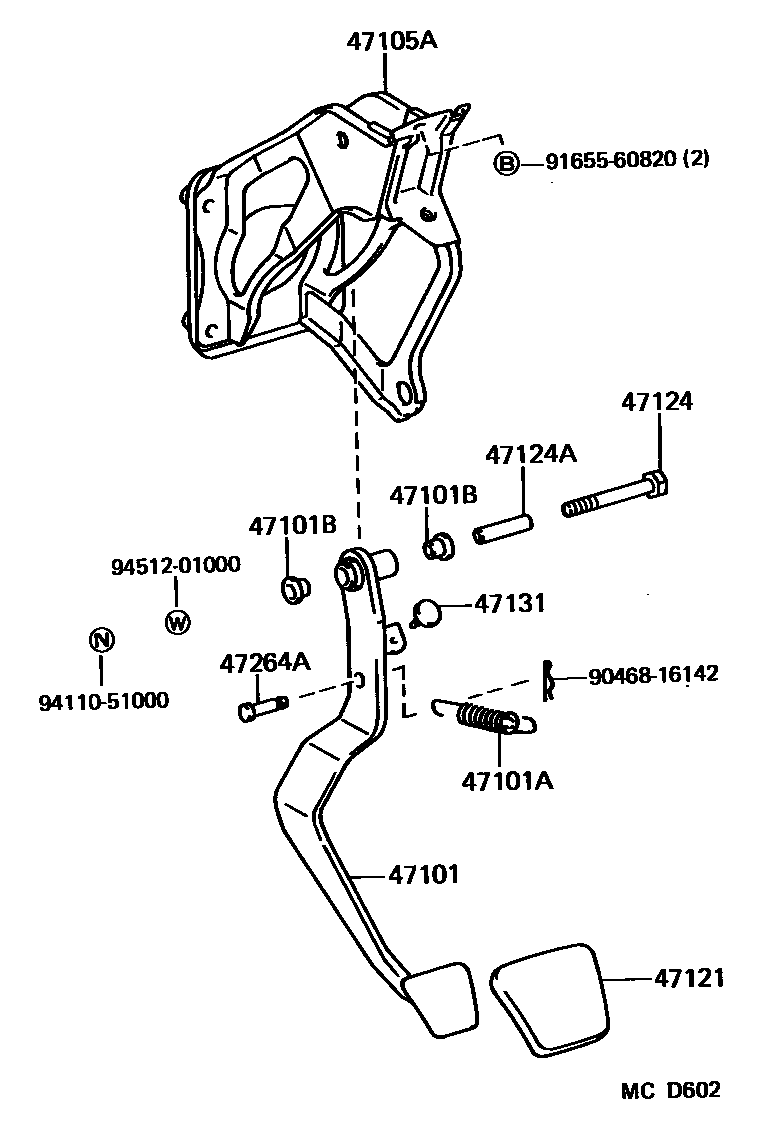

Toyota CAMRY — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-32110iSV21..5F¥3,070198608-198710

main47101-32110iSV2#,VZV21..5F¥3,070198710-198808

main47101-32120iSV21..4FC¥3,270198608-198710

main47101-32120iSV21,VZV21..4FC¥3,270198710-198808

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14024iSV21¥260198608-198710

main90507-14024iSV2#,VZV21¥260198710-198808

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iSV21¥120198608-198710

main90386-13015iSV2#,VZV21¥120198710-198808

47105ASUPPORT SUB-ASSY, BRAKE PEDAL

main55106-32040iSV21¥3,440198608-198710

main55106-32040iSV2#,VZV21¥3,440198710-198808

47121PAD, BRAKE PEDAL

main31321-14020iSV21..5F¥200198608-198710

main31321-14020iSV2#,VZV21..5F¥200198710-198808

main47121-14010iSV21..4FC¥490198608-198710

main47121-14010iSV21,VZV21..4FC¥490198710-198808

47124SHAFT, BRAKE PEDAL

main90101-10039iSV21¥160198608-198710

main90101-10039iSV2#,VZV21¥160198710-198808

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iSV21¥370198608-198710

main90387-10003iSV2#,VZV21¥370198710-198808

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iSV21¥210198608-198710

sub90541-06036¥110

main90541-06032iSV2#,VZV21¥210198710-198808

sub90541-06036¥110

47264APIN(FOR PUSH ROD)

main90249-08051iSV21¥170198608-198710

main90249-08051iSV2#,VZV21¥170198710-198808

9046816142

main90468-16142¥70

9165560820

main91655-60820¥170

9411051000

main94110-51000¥130

9451201000

main94512-01000¥90

13 parts on this diagram · 1 diagram in section
