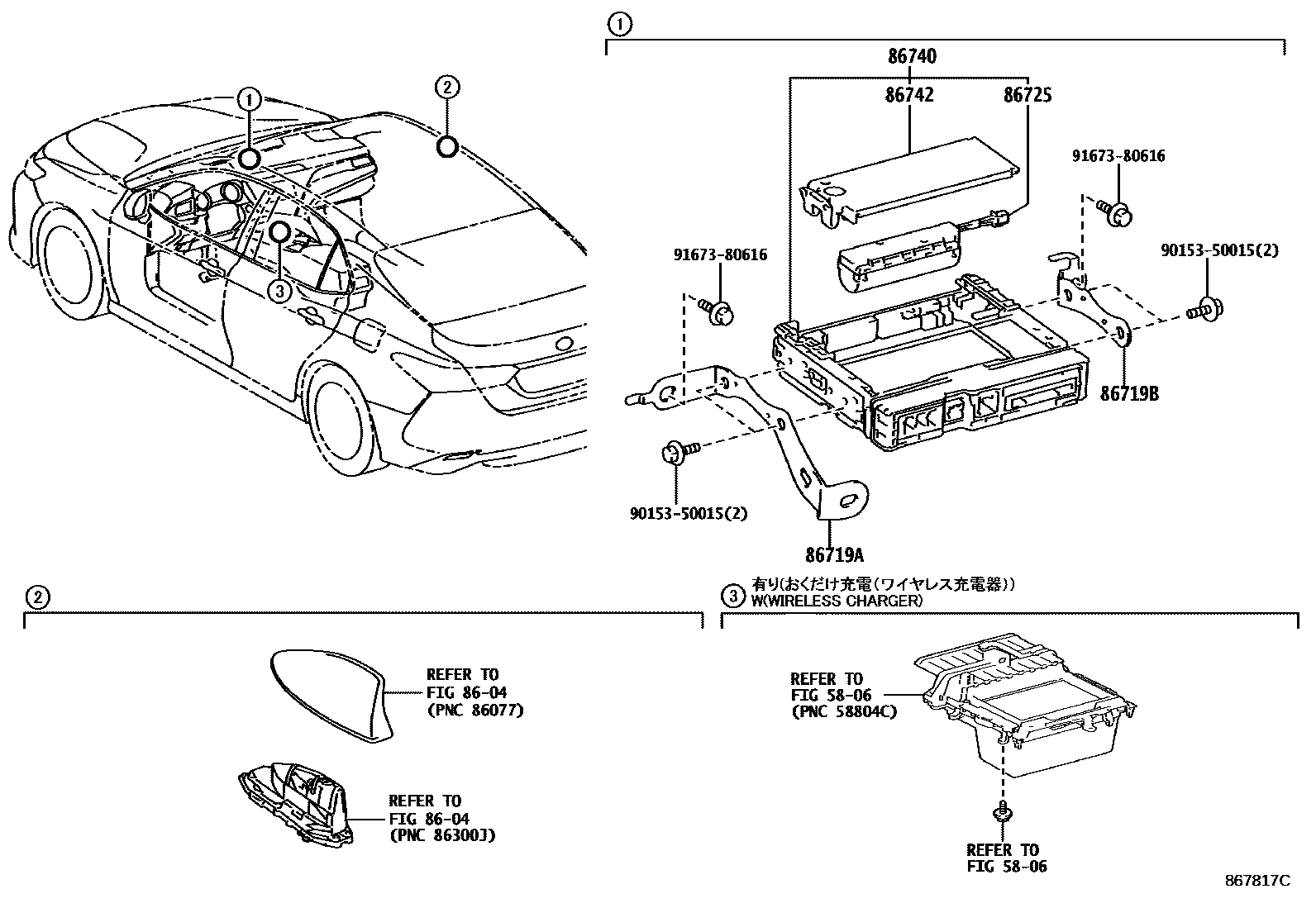

Toyota CAMRY — TELEPHONE & MAYDAY

0001 1 0002 1

5806

8604

86719ABRACKET, TELEPHONE NO.1

main86719-33220iAXVH7#¥570201910-202101

main86719-33290iAXVH7#¥610202102

86719BBRACKET, TELEPHONE NO.2

main86719-33190iAXVH7#¥380201910-202101

main86719-33300iAXVH7#¥570202102

86725BATTERY, MOBILEPHONE

main86725-26010iAXVH7#¥7,500202102

main86725-26010iAXVH7#¥7,500201910-202101

86740TRANSCEIVER ASSY, TELEPHONE

main86741-33121iAXVH7#..X¥37,900202102-202105

sub86741-33122¥38,000

main86741-33122iAXVH7#¥38,000202106

main86741-K0011iAXVH7#¥37,900201910-202101

sub86741-11041¥37,900

86742COVER, TRANSCEIVER

main86742-26010iAXVH7#¥720201910-202101

main86742-26010iAXVH7#¥720202102

9015350015

main90153-50015¥60

9167380616

main91673-80616¥60

9 parts on this diagram · 2 diagrams in section
