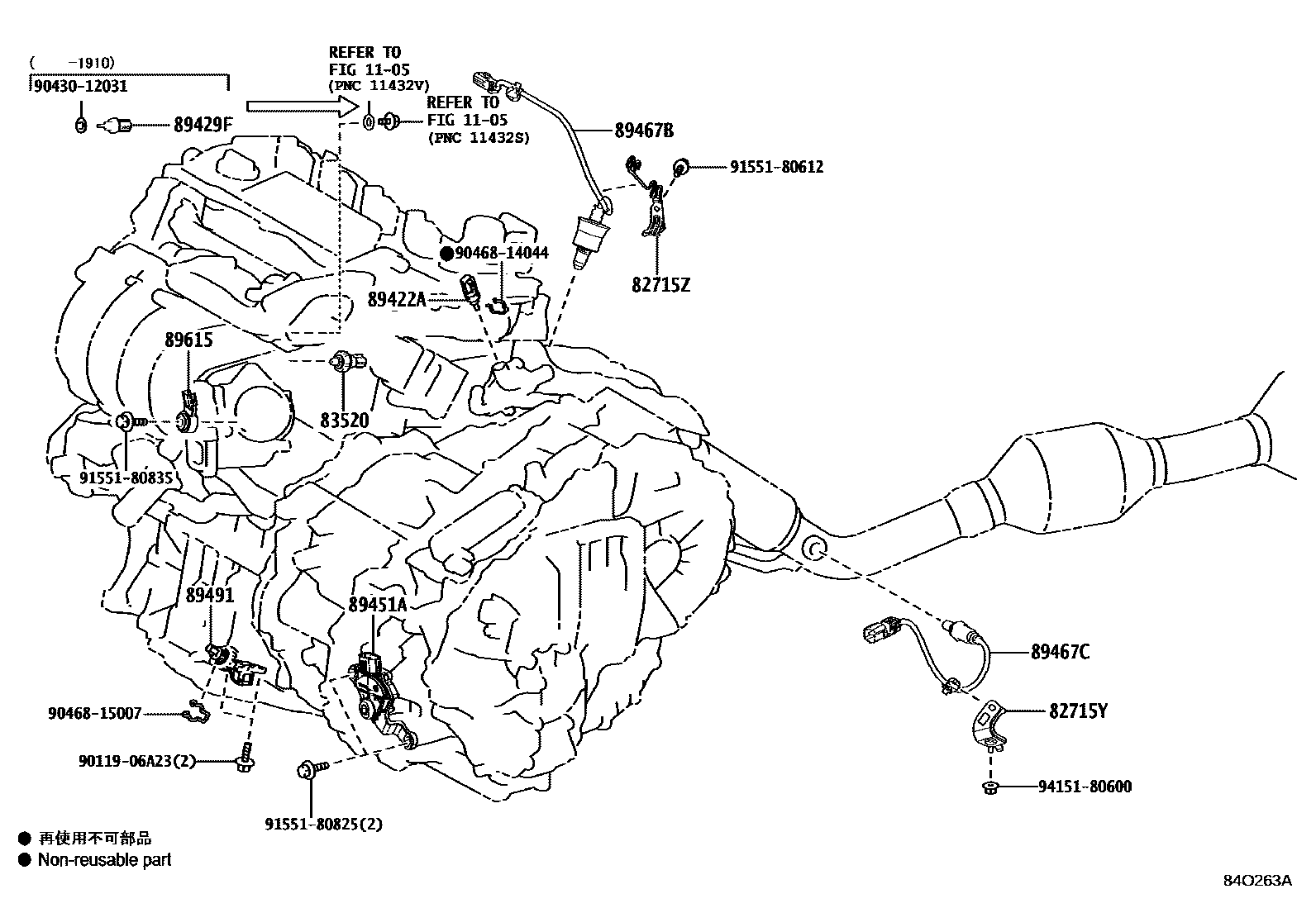

1105

82715BRACKET,WIRING HARNESS CLAMP

main82715-33T30iAXVH7#¥1,450201706-202101

main82715-33T30iAXVH7#¥1,450202102

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-33K30iAXVH7#¥230201706-202101

main82715-33K30iAXVH7#¥230202208

82715ZBRACKET, WIRING HARNESS CLAMP

main82715-33K10iAXVH70¥390201706-201707

sub82715-33K11¥300

main82715-33K11iAXVH7#¥300201707-202101

main82715-33K11iAXVH7#¥300202102

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-33010iAXVH70¥2,710201706-201910

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXVH7#¥2,410201706-202101

main89422-33040iAXVH7#¥2,410202102

89429FSENSOR, TEMPERATURE

main89429-12010iAXVH70¥3,380201706-201910

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iAXVH7#¥5,900201706-202101

main89451-10010iAXVH7#¥5,900202102

89467BSENSOR, AIR FUEL RATIO

main89467-33290iAXVH7#¥9,900201706-202101

main89467-33290iAXVH7#¥9,900202102

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-33210iAXVH7#¥9,900201706-202101

main89467-33210iAXVH7#¥9,900202102

89491SENSOR, ENGINE OIL LEVEL

main89491-33050iAXVH70¥4,400201706-201805

sub89491-33051¥3,670

main89491-33051iAXVH7#¥3,670201806-202101

sub89491-33052¥3,330

main89491-33051iAXVH7#¥3,670202102-202204

sub89491-33052¥3,330

main89491-33052iAXVH7#¥3,330202205

89615SENSOR, KNOCK CONTROL

main89615-20090iAXVH7#¥2,370201706-202101

main89615-20090iAXVH7#¥2,370202102

9011906A23

main90119-06A23¥60

9043012031

main90430-12031¥90

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180612

main91551-80612¥60

9155180825

main91551-80825¥80

9155180835

main91551-80835¥80

9415180600

main94151-80600¥60

20 parts on this diagram · 10 diagrams in section
