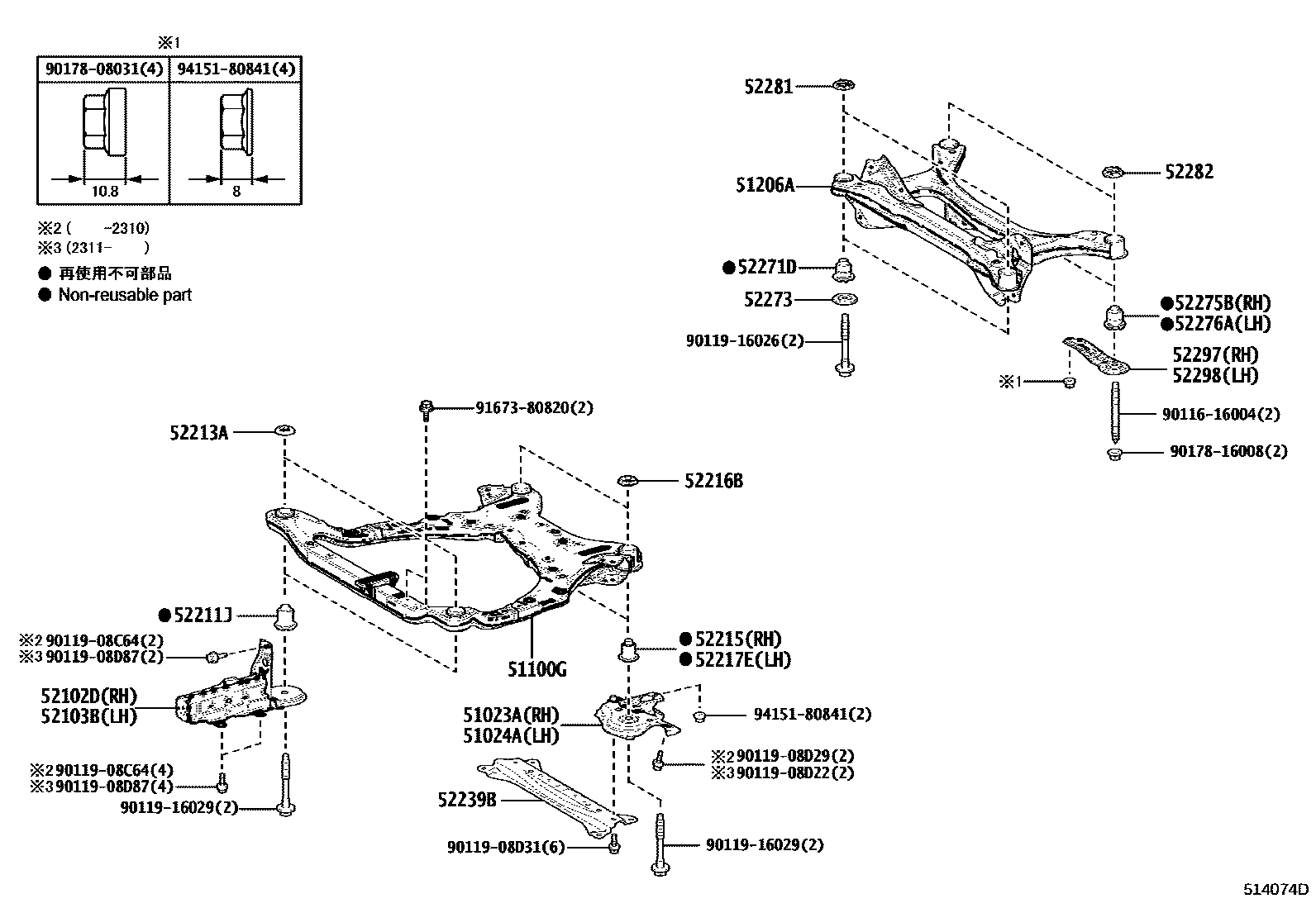

Toyota CAMRY — SUSPENSION CROSSMEMBER & UNDER COVER

0001 1��������������� 0002 1��������������� 0003 1�������� 0004 1��������

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-33070iAXVH7#¥2,700201706-202101

main51023-33070iAXVH7#¥2,700202102

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-33080iAXVH7#¥2,660201706-202101

main51024-33080iAXVH7#¥2,660202102

51100GFRAME ASSY, FRONT

main51100-33130iAXVH7#¥49,900202201

main51100-33170iAXVH7#¥55,000201706-202101

sub51100-33130¥49,900

main51100-33170iAXVH7#¥55,000202102-202112

sub51100-33130¥49,900

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33120iAXVH70¥53,700202102

main51206-33120iAXVH70¥53,700201706-202101

main51206-33140iAXVH75¥59,400201912-202101

main51206-33140iAXVH75¥59,400202102

52102DEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-33010iAXVH7#¥4,030202102

main52102-33010iAXVH7#¥4,030201706-202101

52103BEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-33010iAXVH7#¥4,030201706-202101

main52103-33010iAXVH7#¥4,030202102

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33100iAXVH7#¥2,340201706-202101

main52211-33100iAXVH7#¥2,340202102

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33100iAXVH7#¥430201706-202101

main52213-33100iAXVH7#¥430202102

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33110iAXVH7#¥2,750202102

main52215-33110iAXVH7#¥2,750201706-202101

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33090iAXVH7#¥630201706-202101

main52216-33090iAXVH7#¥630202102

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-33040iAXVH7#¥2,750201706-202101

main52217-33040iAXVH7#¥2,750202102

52239BPLATE, BODY MOUNTING

main52239-33020iAXVH7#¥2,070201706-202101

main52239-33020iAXVH7#¥2,070202102

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-33070iAXVH75;AXVH70..G,X¥2,570201706-202101

main52271-33070iAXVH75;AXVH70..G,X¥2,570202102

main52271-33080iAXVH70..WS¥2,750202102

main52271-33080iAXVH70..WS¥2,750201808-202101

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33030iAXVH7#¥820202102

main52273-33030iAXVH7#¥820201706-202101

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-33080iAXVH75;AXVH70..G,X¥2,920202102

main52275-33080iAXVH75;AXVH70..G,X¥2,920201706-202101

main52275-33090iAXVH70..WS¥2,920201808-202101

main52275-33090iAXVH70..WS¥2,920202102

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-33010iAXVH75;AXVH70..G,X¥2,750201706-202101

main52276-33010iAXVH75;AXVH70..G,X¥2,750202102

main52276-33020iAXVH70..WS¥2,750201808-202101

main52276-33020iAXVH70..WS¥2,750202102

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-33020iAXVH7#¥430202102

main52281-33020iAXVH7#¥430201706-202101

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52281-33020iAXVH70..WS¥430201808-202101

main52281-33020iAXVH70..WS¥430202102

main52282-33060iAXVH75;AXVH70..G,X¥430201706-202101

main52282-33060iAXVH75;AXVH70..G,X¥430202102

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-33020iAXVH70¥1,580201706-202101

main52297-33020iAXVH70¥1,580202102

main52297-33040iAXVH75¥1,460201912-202101

main52297-33040iAXVH75¥1,460202102

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-33020iAXVH70¥1,570201706-202101

main52298-33020iAXVH70¥1,570202102

main52298-33040iAXVH75¥1,690201912-202101

main52298-33040iAXVH75¥1,690202102

9011616004

main90116-16004¥610

9011908C64

main90119-08C64¥90

9011908D22

main90119-08D22¥80

9011908D29

main90119-08D29¥100

9011908D31

main90119-08D31¥80

9011908D87

main90119-08D87¥100

9011916026

main90119-16026¥610

9011916029

main90119-16029¥490

9017808031

main90178-08031¥100

9017816008

main90178-16008¥190

9167380820

main91673-80820¥80

9415180841

main94151-80841¥80

32 parts on this diagram · 4 diagrams in section
