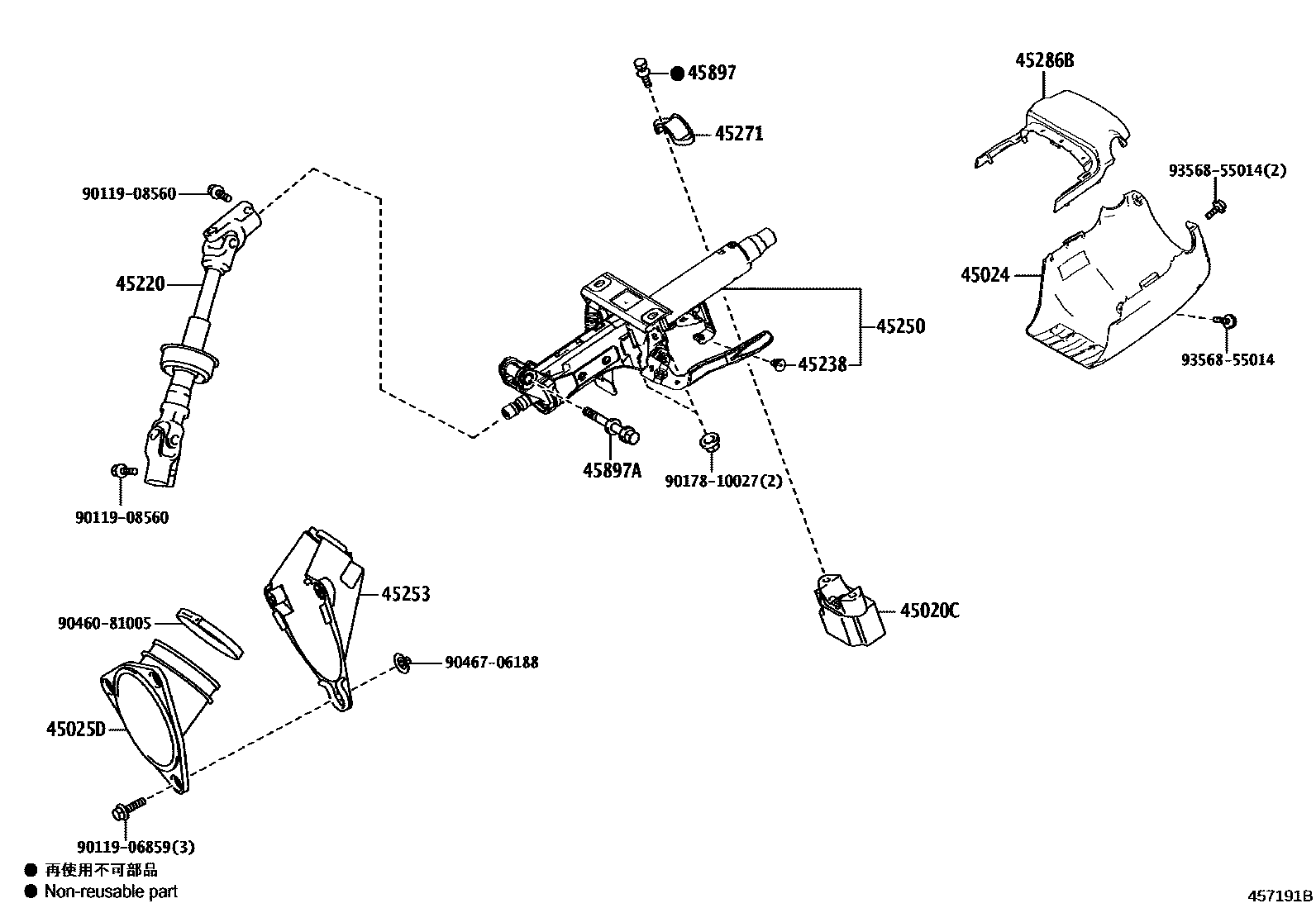

Toyota CAMRY — STEERING COLUMN & SHAFT

0001 1MANUAL TILT & TELESCOPIC 0002 1ELECTRIC TILT & TELESCOPIC

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-33240iAXVH7#¥13,500201706-202208

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-33230-C0iAXVH7#..X201706-202101

BLACK,TRIM2#

main45024-33230-C0iAXVH7#..X201706-202101

BLACK,TRIM2#,4#

main45024-33230-C0iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-33150iAXVH7#¥2,750201706-202101

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-33360iAXVH70¥15,500201706-201908

sub45220-33361¥15,500

main45220-33361iAXVH7#¥15,500201909-202011

sub45220-33362¥11,700

main45220-33362iAXVH7#¥11,700202012-202101

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iAXVH7#¥70201706-202101

45250COLUMN ASSY, STEERING

main45250-33D40iAXVH7#¥46,700201706-202101

45253COVER, STEERING COLUMN HOLE

main45253-33100iAXVH7#¥700201706-202101

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iAXVH7#¥440201706-202208

45286BCOVER, STEERING COLUMN, UPR

main45286-33290-C0iAXVH7#..X201706-202101

BLACK,TRIM2#

main45286-33290-C0iAXVH7#..X201706-202101

BLACK,TRIM2#,4#

main45286-33290-C0iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

45897BOLT, STEERING LOCK SET

main45897-12020iAXVH7#¥210201706-202208

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAXVH7#¥190201706-202101

9011906859

main90119-06859¥130

9011908560

main90119-08560¥110

9017810027

main90178-10027¥100

9046081005

main90460-81005¥310

9046706188

main90467-06188¥160

9356855014

main93568-55014¥70

17 parts on this diagram · 2 diagrams in section
