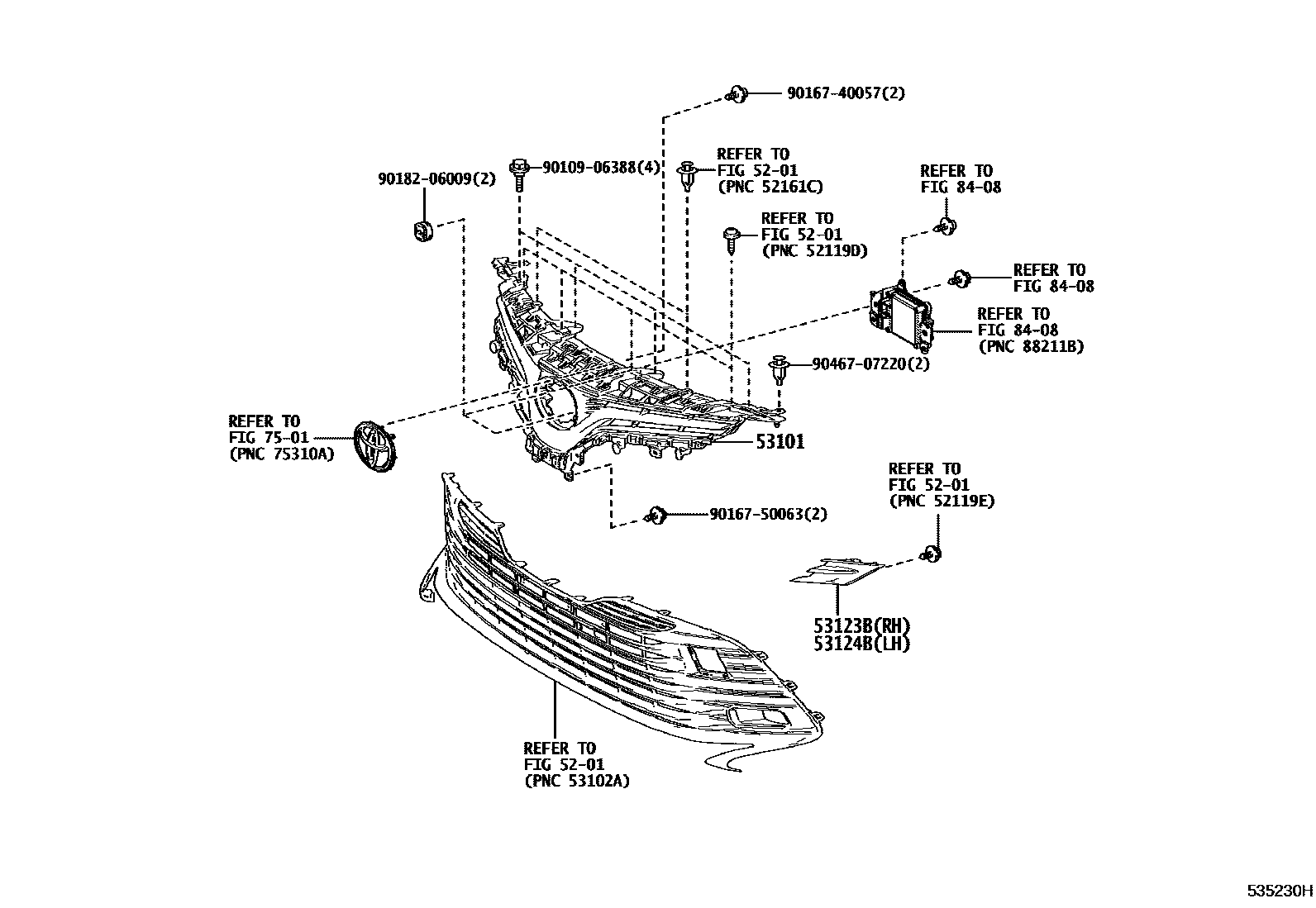

Toyota CAMRY — RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1

5201

53101GRILLE SUB-ASSY, RADIATOR

main53101-33410iAXVH7#..X¥27,100201706-202101

main53101-33540iAXVH7#..G¥27,100201706-202101

main53101-33570iAXVH7#..WS¥26,400201808-202101

main53101-33620iAXVH7#..G,X¥20,000202102

main53101-33640iAXVH7#..WS¥22,000202102

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-33050iAXVH7#..G¥1,240201706-202101

main53123-33100iAXVH7#..X¥1,240201706-202101

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53124-33070iAXVH7#..G¥1,240201706-202101

main53124-33120iAXVH7#..X¥1,240201706-202101

7501

8408

9010906388

main90109-06388¥70

9016740057

main90167-40057¥60

9016750063

main90167-50063¥60

9018206009

main90182-06009¥100

9046707220

main90467-07220¥80

11 parts on this diagram · 4 diagrams in section
