Toyota CAMRY — PARKING BRAKE & CABLE

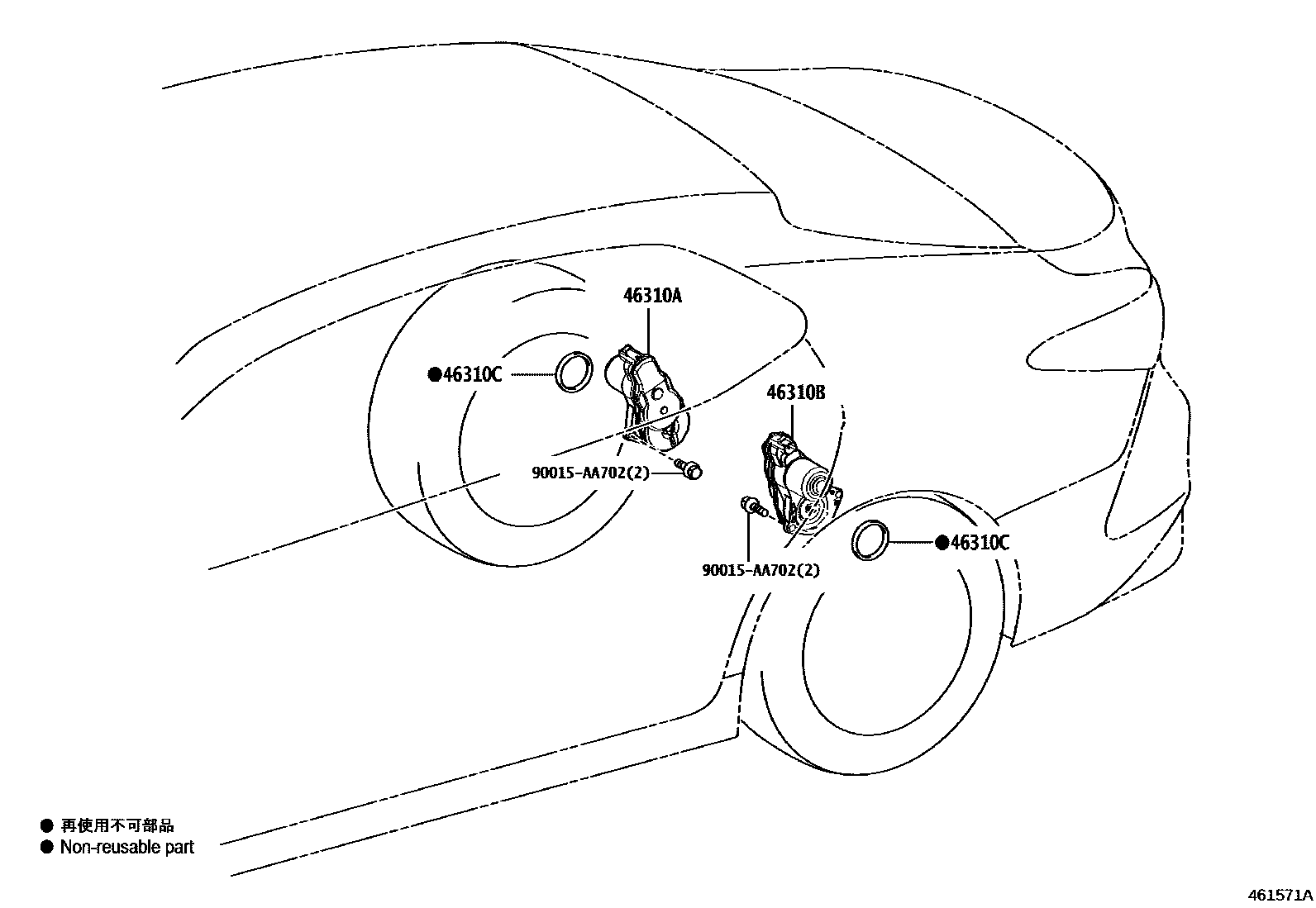

Parts diagram

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-33010i¥14,400201706-202101

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-33010i¥14,400201706-202101

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005i¥130201706-202210

90015AA702

main90015-AA702¥270

4 parts on this diagram · 1 diagram in section
