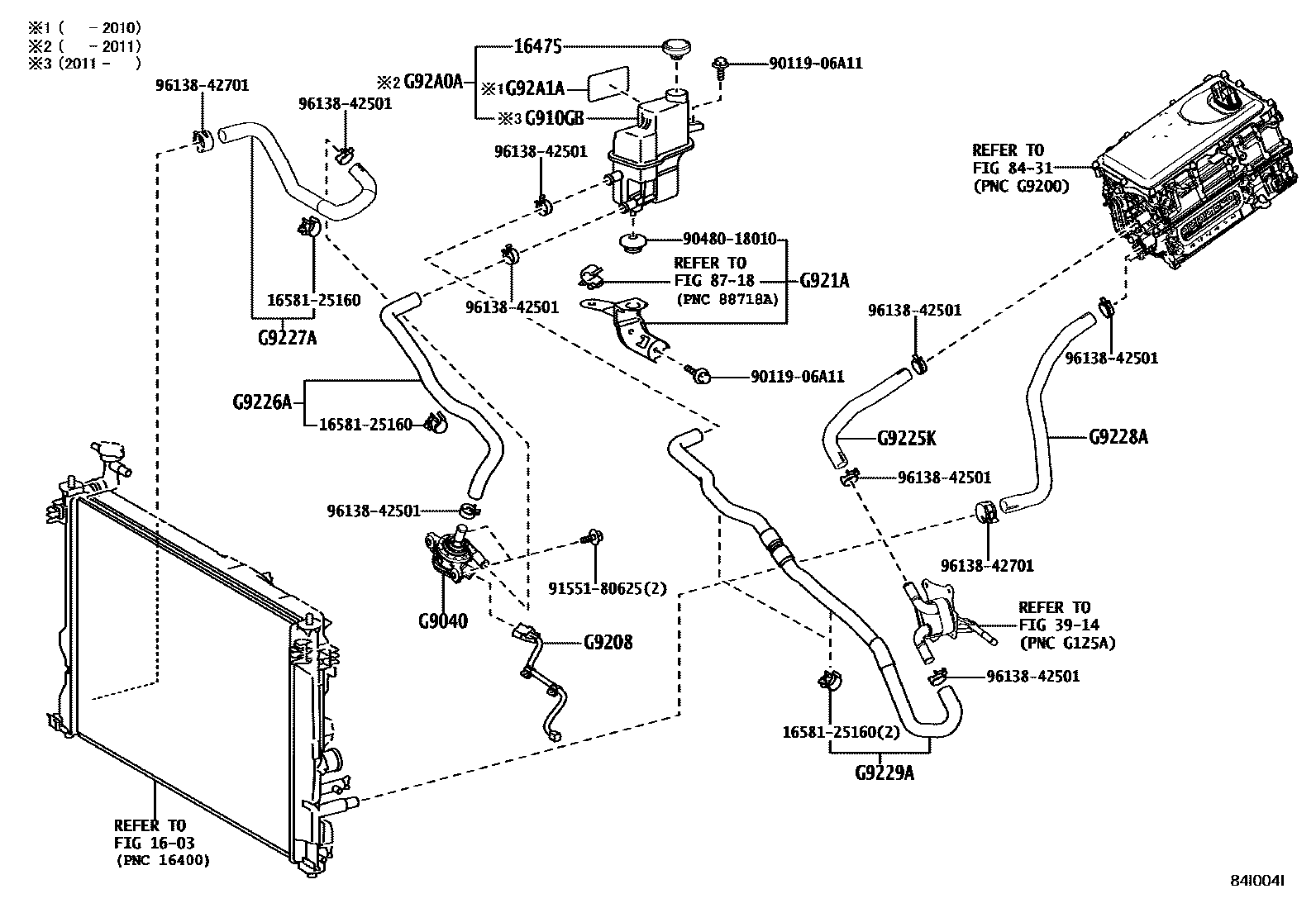

Toyota CAMRY — INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXVH7#¥1,200201706-202101

3914

8431

8718

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904028020iAXVH7#202208-202303

subG9040-48060¥27,900

mainG904033050iAXVH7#201706-202208

mainG904048060iAXVH7#202304

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G33010iAXVH7#202011-202101

G9208WIRE SUB-ASSY, INVERTER

mainG920833020iAXVH7#201706-202101

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H233010iAXVH7#201706-202310

mainG91H233011iAXVH7#202311

G9225KHOSE, INVERTER COOLING, NO.1

mainG922533080iAXVH7#201706-202101

G9226AHOSE, INVERTER COOLING, NO.2

mainG922633021iAXVH70201706-201908

mainG922633022iAXVH7#201909-202101

G9227AHOSE, INVERTER COOLING, NO.3

mainG922733020iAXVH70201706-201908

subG9227-33021¥1,860

mainG922733021iAXVH7#201909-202101

G9228AHOSE, INVERTER COOLING, NO.4

mainG922833030iAXVH7#201706-202101

G9229AHOSE, INVERTER COOLING, NO.5

mainG922933031iAXVH70201706-201908

mainG922933032iAXVH7#201909-202101

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H033010iAXVH7#201706-202011

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iAXVH7#201706-202010

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

9011906A11

main90119-06A11¥60

9048018010

main90480-18010¥130

9155180625

main91551-80625¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

22 parts on this diagram · 1 diagram in section
