Toyota CAMRY — HEV INVERTER

0001 1����(���������������) 0002 1����(������ASSY) 1/2 0003 1����(������ASSY) 2/2 0004 1��

3901

8202

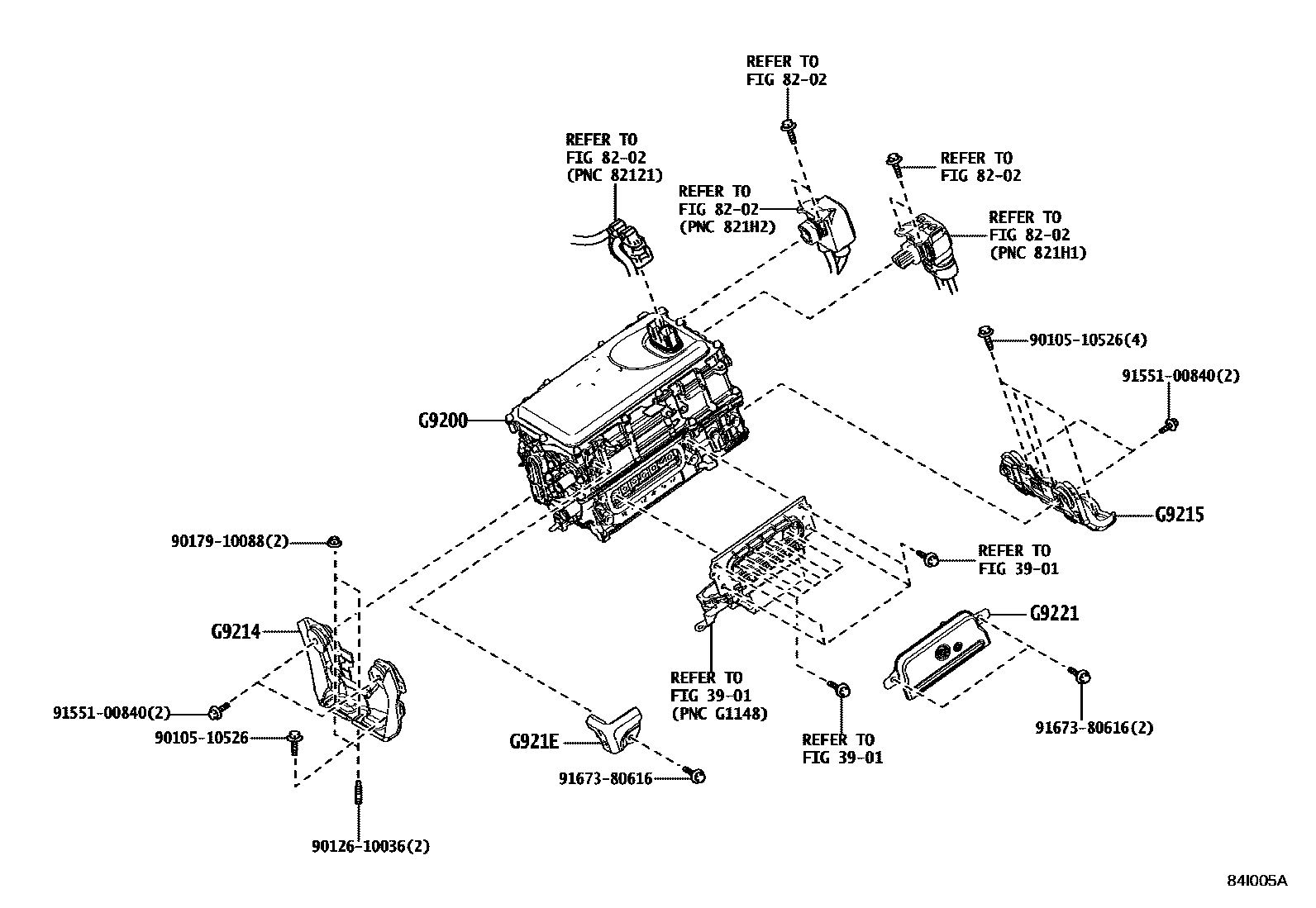

G9200INVERTER ASSY, W/CONVERTER

mainG920039015iAXVH70201706-202205

subG9200-39016¥340,000

mainG920039016iAXVH70202205

mainG920039025iAXVH75201912-202311

subG9200-39026¥340,000

mainG920039026iAXVH75202311

G9214BRACKET, INVERTER, NO.1

mainG921433040iAXVH7#201706-202101

G9215BRACKET, INVERTER, NO.2

mainG921533040iAXVH7#201706-202101

G921EPROTECTOR, INVERTER

mainG921E47010iAXVH7#201706-202101

G9221COVER, INVERTER

mainG902247050iAXVH7#201706-202101

9010510526

main90105-10526¥100

9012610036

main90126-10036¥100

9017910088

main90179-10088¥100

9155100840

main91551-00840¥80

9167380616

main91673-80616¥60

12 parts on this diagram · 4 diagrams in section
