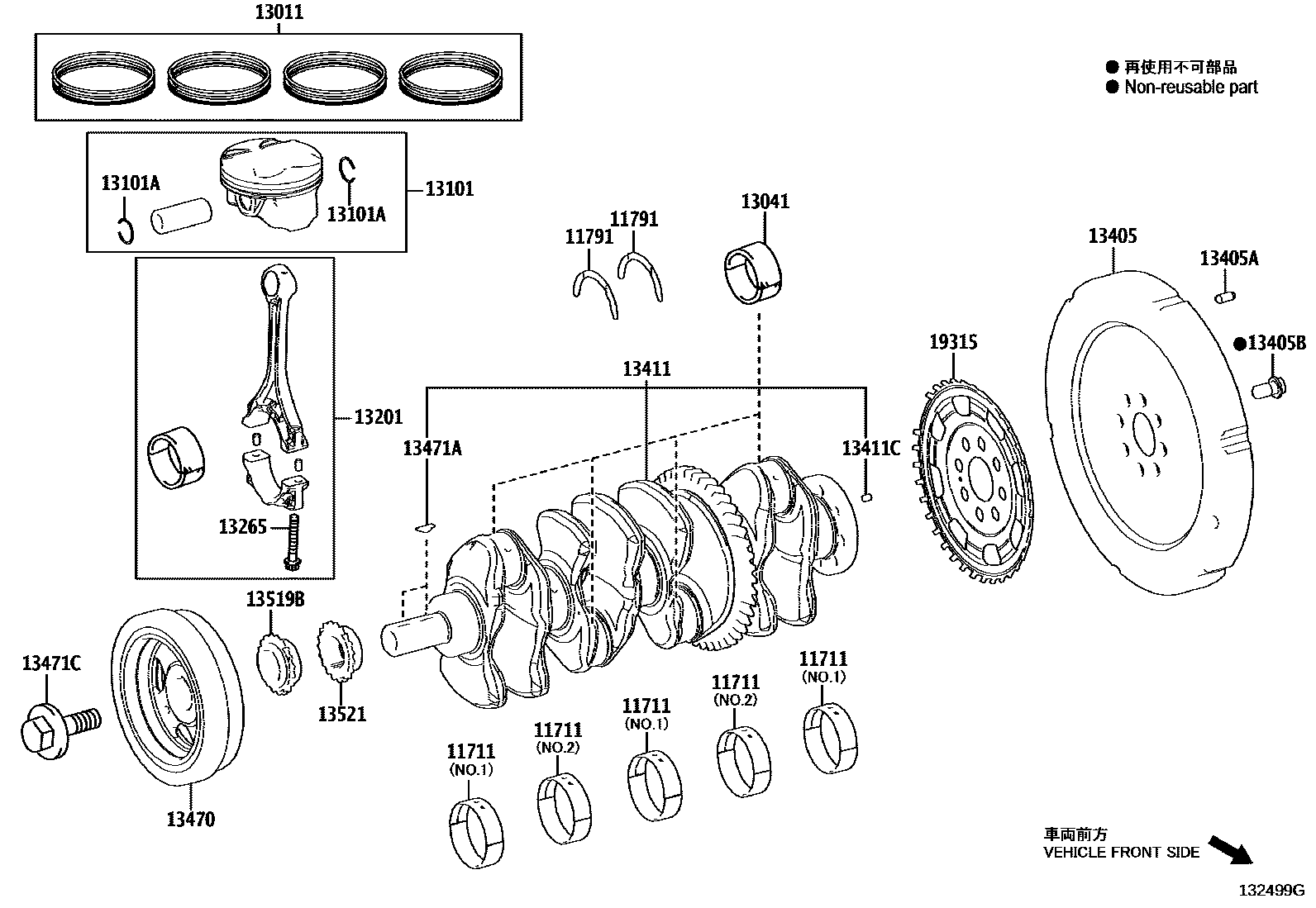

Toyota CAMRY — CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-25010-01iA25AFXS..AXVH7#202111

main11701-25010-01iA25AFXS..AXVH7#201906-202111

main11701-25010-01iA25AFXS..AXVH70201706-201906

main11701-25010-02iA25AFXS..AXVH70201706-201906

main11701-25010-02iA25AFXS..AXVH7#201906-202111

main11701-25010-02iA25AFXS..AXVH7#202111

main11701-25010-03iA25AFXS..AXVH70201706-201906

main11701-25010-03iA25AFXS..AXVH7#201906-202111

main11701-25010-03iA25AFXS..AXVH7#202111

main11701-25010-04iA25AFXS..AXVH7#201906-202111

main11701-25010-04iA25AFXS..AXVH70201706-201906

main11701-25010-04iA25AFXS..AXVH7#202111

main11701-25010-05iA25AFXS..AXVH70201706-201906

main11701-25010-05iA25AFXS..AXVH7#202111

main11701-25010-05iA25AFXS..AXVH7#201906-202111

main11701-25020-01iA25AFXS..AXVH7#201906-202111

main11701-25020-02iA25AFXS..AXVH7#201906-202111

main11701-25020-03iA25AFXS..AXVH7#201906-202111

main11701-25020-04iA25AFXS..AXVH7#201906-202111

main11701-25020-05iA25AFXS..AXVH7#201906-202111

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-25030iA25AFXS..AXVH7#¥1,930201706-202103

sub11791-25040¥1,740

main11791-25040iA25AFXS..AXVH7#¥1,740202103

13011RING SET, PISTON

main13011-25070iA25AFXS..AXVH70¥16,100201706-201803

main13011-25080iA25AFXS..AXVH7#¥12,100201803-202101

13041BEARING, CONNECTING ROD

main13041-25020-01iA25AFXS..AXVH7#201706-202101

main13041-25020-02iA25AFXS..AXVH7#201706-202101

main13041-25020-03iA25AFXS..AXVH7#201706-202101

13101PISTON SUB-ASSY, W/PIN

main13101-25040iA25AFXS..AXVH7#¥4,320201706-202101

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-21024iA25AFXS..AXVH7#¥90201706-202101

13201ROD SUB-ASSY, CONNECTING

main13201-29815-A0iA25AFXS..AXVH7#201706-202101

main13201-29815-B0iA25AFXS..AXVH7#201706-202101

main13201-29815-C0iA25AFXS..AXVH7#201706-202101

13265BOLT, CONNECTING ROD

main13265-25020iA25AFXS..AXVH7#¥310201706-202101

13405FLYWHEEL SUB-ASSY

main13451-25030iA25AFXS..AXVH7#¥16,100201706-202101

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120iA25AFXS..AXVH7#¥140201706-202101

13405BBOLT, FLYWHEEL SETTING

main90105-12404iA25AFXS..AXVH7#¥100201706-202101

13411CRANKSHAFT

main13401-25010iA25AFXS..AXVH7#¥80,000201706-202101

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035iA25AFXS..AXVH7#¥70201706-202101

13470PULLEY ASSY, CRANKSHAFT

main13470-25020iA25AFXS..AXVH7#¥5,500201706-202101

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001iA25AFXS..AXVH7#¥80201706-202101

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020iA25AFXS..AXVH7#¥490201706-202101

13519BSPROCKET, OIL PUMP DRIVE

main13519-25010iA25AFXS..AXVH7#¥850201706-202101

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-25010iA25AFXS..AXVH7#¥800201706-202101

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-25010iA25AFXS..AXVH70¥3,050201706-201911

sub19315-25011¥2,810

main19315-25011iA25AFXS..AXVH7#¥2,810201912-202101

19 parts on this diagram · 1 diagram in section
