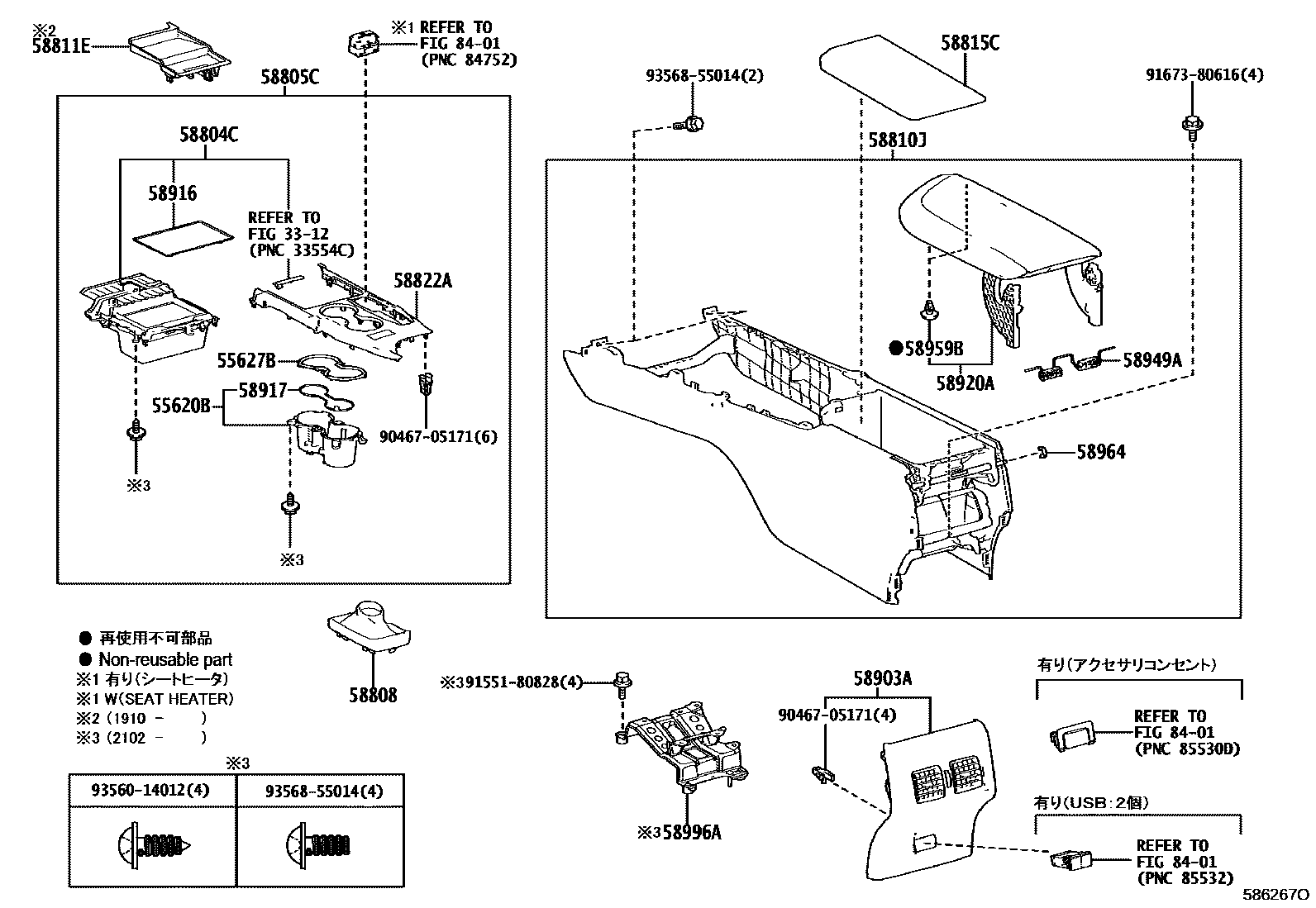

Toyota CAMRY — CONSOLE BOX & BRACKET
3312
55620BHOLDER, INSTRUMENT PANEL CUP
55627BRAIL, CONSOLE BOX CUP HOLDER
�g���U�[�p�b�P�[�W�h���t�����g�V�[�g�A�W���X�^�|���c�q�o�F�S�E�F�C�|�p���[�����������[�d�i���C�����X�[�d���j�|�L��
�t�����g�V�[�g�A�W���X�^�|���c�q�o�F�S�E�F�C�|�p���[
58804CINSERT SUB-ASSY, CONSOLE BOX, FRONT
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
BLACK,TRIM2#
TIGER EYE,TRIM2#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58810JBOX ASSY, CONSOLE
SOFT BLACK,TRIM2#
SOFT BLACK,TRIM2#
SENSUAL RED,TRIM3#
SOFT BLACK/GRAY,TRIM2#
SOFT BLACK/GRAY,TRIM2#
58811EBOX, CONSOLE, UPPER
58822APANEL, CONSOLE, UPPER REAR
BLACK,TRIM2#
TIGER EYE,TRIM2#
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#
BLACK,TRIM2#
FROMAGE,TRIM4#
FROMAGE,TRIM40
BLACK,TRIM2#,41
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
58920AARMREST ASSY, REAR CONSOLE
SOFT BLACK,TRIM2#
SOFT BLACK,TRIM2#
SOFT BLACK/GRAY,TRIM2#
SOFT BLACK/GRAY,TRIM2#
SENSUAL RED,TRIM3#
58949ASPRING, CONSOLE BOX MOUNTING BRACKET
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8401
9046705171
9155180828
9167380616
9356014012
9356855014
24 parts on this diagram · 1 diagram in section
