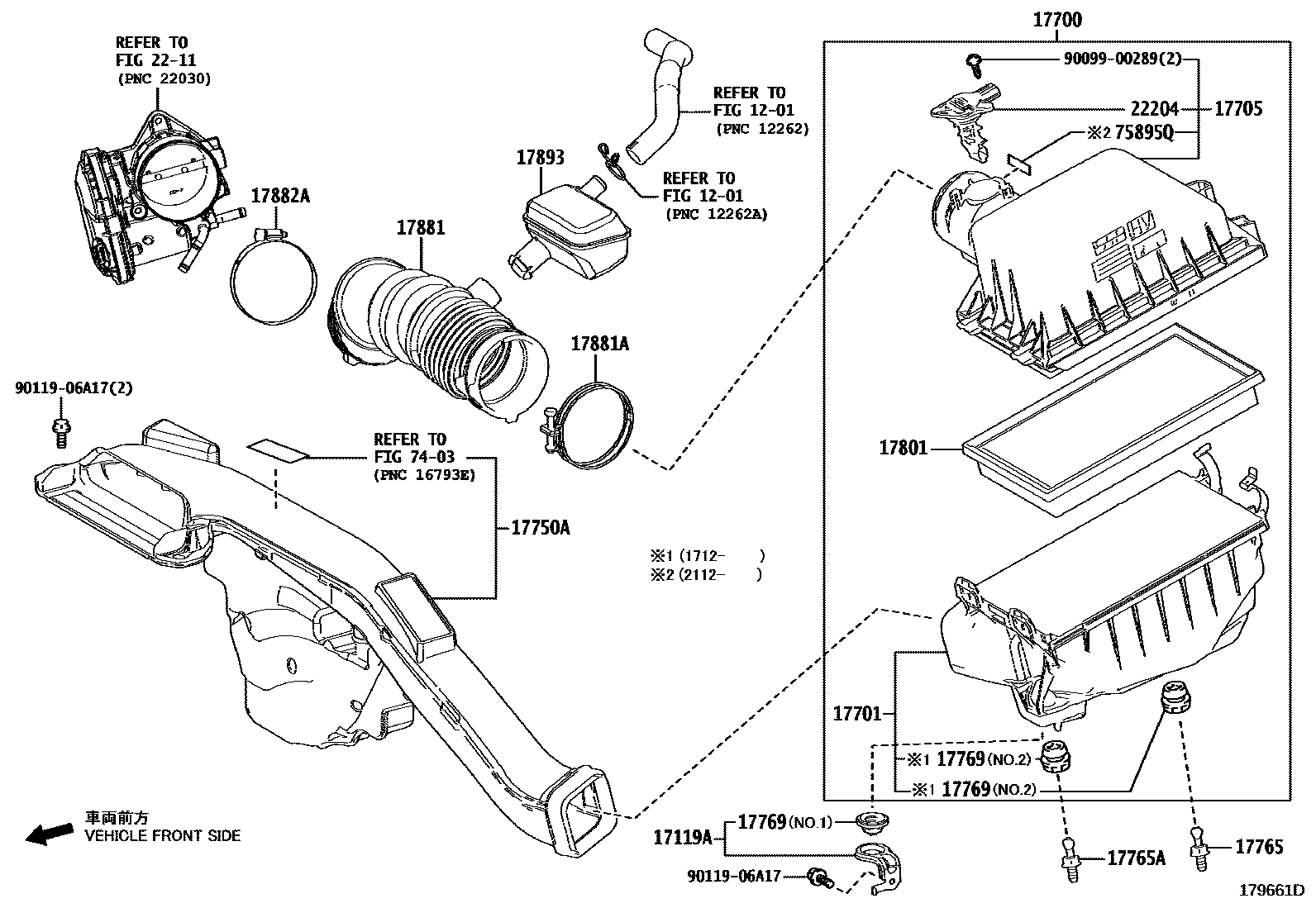

Toyota CAMRY — AIR CLEANER

1201

17119ABRACKET, AIR CLEANER

main17119-25010iA25AFXS..AXVH7#¥350201706-202101

17700CLEANER ASSY, AIR

main17700-25100iA25AFXS..AXVH7#¥20,800201706-202005

sub17700-25101¥17,300

main17700-25101iA25AFXS..AXVH7#¥17,300202006-202101

17701CASE SUB-ASSY, AIR CLEANER

main17701-25080iA25AFXS..AXVH7#201706-202006

sub17701-25081

main17701-25081iA25AFXS..AXVH7#202006-202101

17705CAP SUB-ASSY, AIR CLEANER

main17705-25070iA25AFXS..AXVH7#201706-202101

17750AINLET ASSY, AIR CLEANER

main17750-25020iA25AFXS..AXVH7#¥6,700201706-202101

17765STAY, AIR CLEANER, NO.1

main17765-25010iA25AFXS..AXVH7#¥230201706-202101

17765ASTAY, AIR CLEANER, NO.1

main17765-25010iA25AFXS..AXVH7#¥230201706-202101

17769SUPPORT, AIR CLEANER

main17769-25020iA25AFXS..AXVH7#¥160201709-202101

main17769-25030iA25AFXS..AXVH7#¥200201712-202101

main17769-38020iA25AFXS..AXVH70¥230201706-201708

sub17769-25010¥170

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-77050iA25AFXS..AXVH7#¥2,700201706-202101

17881HOSE, AIR CLEANER, NO.1

main17881-25030iA25AFXS..AXVH7#¥2,840201706-202101

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25AFXS..AXVH7#¥240201706-202101

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25AFXS..AXVH7#¥710201706-202101

17893RESONATOR, INTAKE AIR

main17893-25010iA25AFXS..AXVH7#¥860201706-202101

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iA25AFXS..AXVH7#¥9,400201706-202101

7403

75895QTAPE, MOULDING, NO.1

main75895-52050iAXVH7#¥260202112

9009900289

main90099-00289¥60

9011906A17

main90119-06A17¥60

20 parts on this diagram · 1 diagram in section
