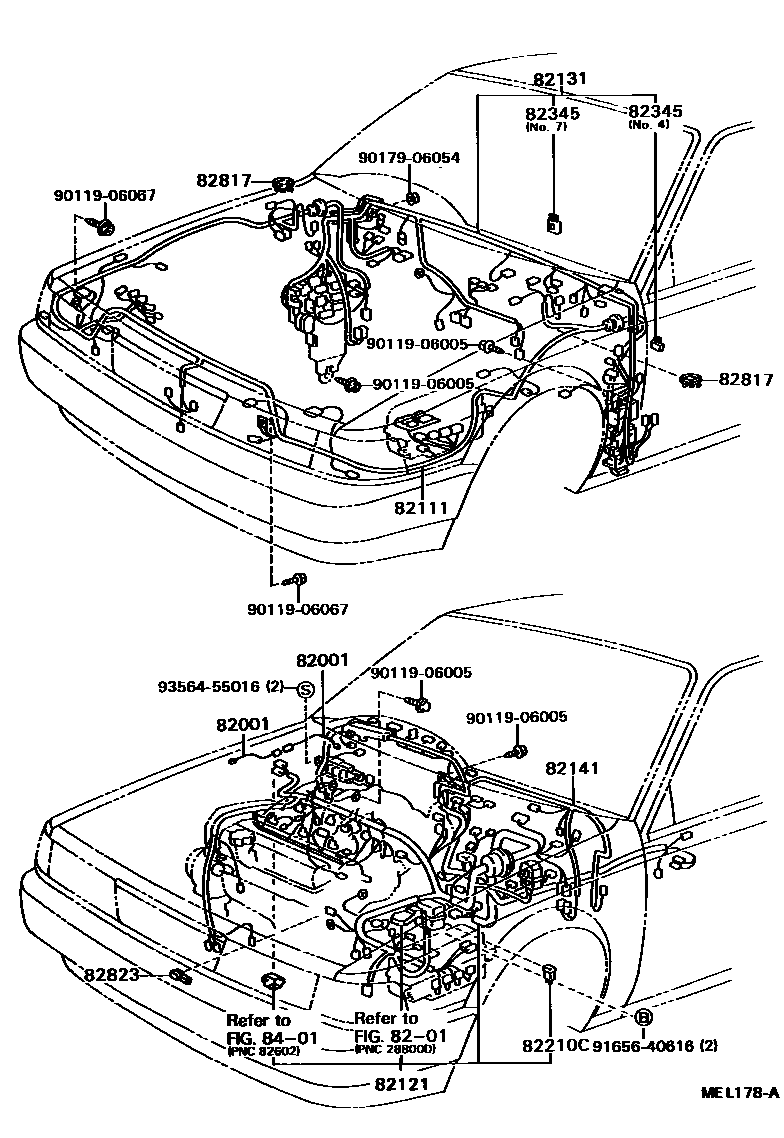

Toyota CAMRY — WIRING & CLAMP

0001 1 0002 1 0003 1CLAMP & GROMMET 0004 1REPAIR WIRE 0005 1DIODE

82001CABLE, BOND, NO.1

main90980-07270iVZV21¥410198808-199106

ENGINE

main90980-07287iVZV21¥610198808-199106

SUSPENSION TOWER

8201

82111WIRE, ENGINE ROOM MAIN

main82111-32420iVZV21¥59,200198808-198905

main82111-32421iVZV21¥59,300198905-199106

82121WIRE, ENGINE

main82121-3H380iVZV21¥112,000198808-198905

main82121-3H381iVZV21¥112,000198905-198908

main82121-3H382iVZV21¥112,000198908-199003

main82121-3H383iVZV21¥112,000199003-199008

main82121-3H384iVZV21¥112,000199008-199106

82131WIRE, COWL

main82131-3H860iVZV21¥66,600198808-198905

main82131-3H861iVZV21¥66,800198905-198912

sub82131-3H862¥66,800

main82131-3H862iVZV21¥66,800198912-199106

82141WIRE, INSTRUMENT PANEL

main82141-32380iVZV21¥46,000198808-199106

main82141-32390iVZV21¥46,000198808-199106

W(DIGITAL SPEEDOMETER)

82210CFUSIBLE LINK

main90982-08188iVZV21¥710198808-199106

30A,TERM.:FEMALE,PNK

main90982-08189iVZV21¥440198808-199106

40A,TERM.:FEMALE,GRN

main90982-08203iVZV21¥460198808-199106

80A,TERM.:MALE,BLK

main90982-08253iVZV21¥730198812-198912

80A,TERM.:MALE,BLK

sub90982-08203¥460

82345DIODE

main82345-20060iVZV21¥850198808-199106

COWL WIRE,NO.1

main82345-32020iVZV21¥1,030198808-199106

COWL WIRE,NO.7

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-32420iVZV21¥310198808-199106

82823CAP, TERMINAL, NO.1

main82823-20030iVZV21¥670198808-199003

main82823-22050iVZV21¥390199003-199008

main82823-22060iVZV21¥910199008-199106

8401

9011906005

main90119-06005¥80

9011906067

main90119-06067¥90

9017906054

main90179-06054¥100

9165640616

main91656-40616¥100

9356455016

main93564-55016

16 parts on this diagram · 5 diagrams in section
