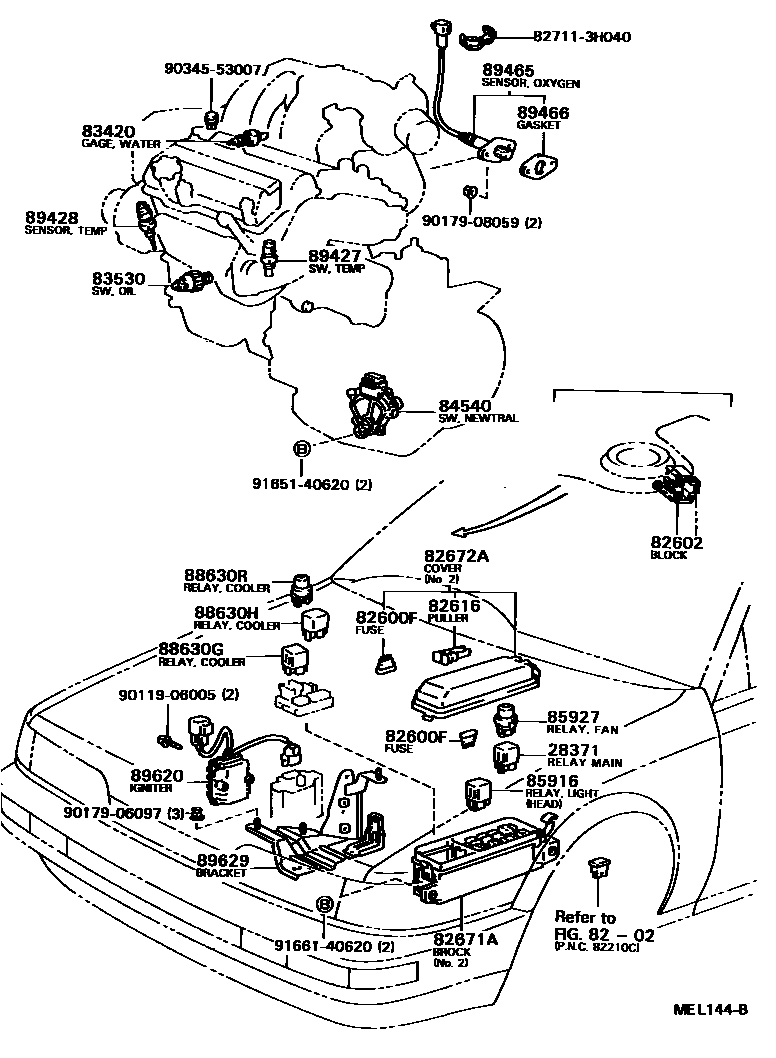

Toyota CAMRY — SWITCH & RELAY & COMPUTER
28371RELAY, IGNITION, NO.1
8202
82600FFUSE, FUSE BLOCK
10A
15A
20A,YELLOW
7.5A
82602BLOCK SUB-ASSY, RELAY
82616PULLER, FUSE
82671ABLOCK, JUNCTION
NO.1
NO.2
82672ACOVER, JUNCTION BLOCK
NO.3
NO.1
NO.1
NO.2
NO.2
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84540SWITCH ASSY, NEUTRAL START
85916RELAY, LIGHT CONTROL
NIPPONDENSO,TAIL LAMP
HEADLAMP
85927RELAY, COOLING FAN
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
88630RRELAY ASSY, COOLER, NO.3
89427SWITCH, TEMPERATURE DETECT
89428SWITCH, TEMPERATURE DETECT, NO.2
89465SENSOR, OXYGEN
89466GASKET, OXYGEN SENSOR
89620IGNITER ASSY
89629BRACKET, IGNITER ASSY
827113H040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9011906005
9017906097
9017908059
9034553007
9165140620
9166140620
28 parts on this diagram · 6 diagrams in section
