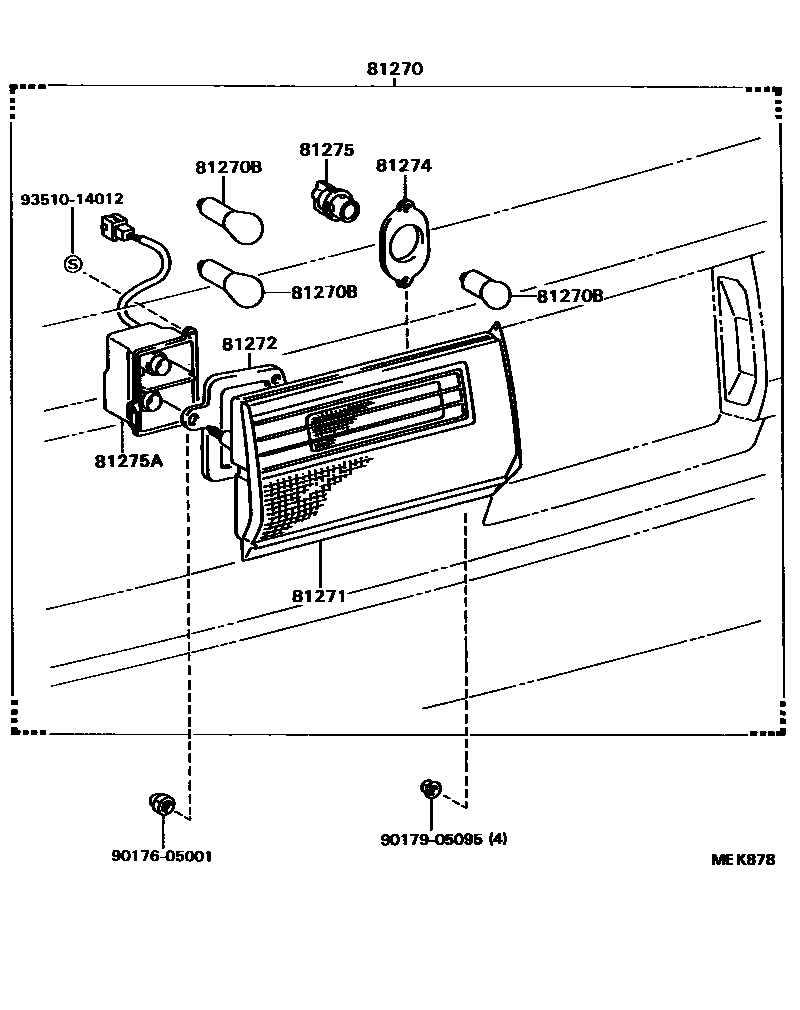

Toyota CAMRY — REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-32060iVZV21¥16,400198808-198905

RH

main81270-32061iVZV21¥16,600198905-199106

RH

main81690-32030iVZV21¥16,400198808-198905

LH

main81690-32031iVZV21¥16,600198905-199106

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12012iVZV21¥220198808-199106

12V 7.5W

sub90981-12026¥220

main90981-12019iVZV21¥260198808-199106

12V 21/5W

sub99132-21210¥190

main99132-11210iVZV21¥170198905-199106

12V 21W

main99132-11230iVZV21198808-198905

12V 23W

81271LENS, LICENSE PLATE LAMP

main81271-32060iVZV21¥10,100198808-198905

RH

main81271-32061iVZV21¥10,300198905-199106

RH

main81691-32030iVZV21¥10,100198808-198905

LH

main81691-32031iVZV21¥10,300198905-199106

LH

81272GASKET, LICENSE PLATE LAMP LENS

main81272-32060iVZV21¥580198808-199106

81274GASKET, LICENSE PLATE LAMP BODY

main81274-32060iVZV21¥400198808-199106

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12260iVZV21¥510198808-199106

81275ACORD, LICENSE PLATE LAMP

main81275-32060iVZV21¥1,480198808-198905

RH

main81275-32061iVZV21¥1,490198905-199106

RH

main81695-32030iVZV21¥1,480198808-198905

LH

main81695-32031iVZV21¥1,490198905-199106

LH

9017605001

main90176-05001¥200

9017905095

main90179-05095¥240

9351014012

main93510-14012¥230

10 parts on this diagram · 2 diagrams in section
