Toyota CAMRY — RADIO RECEIVER & AMPLIFIER & CONDENSER

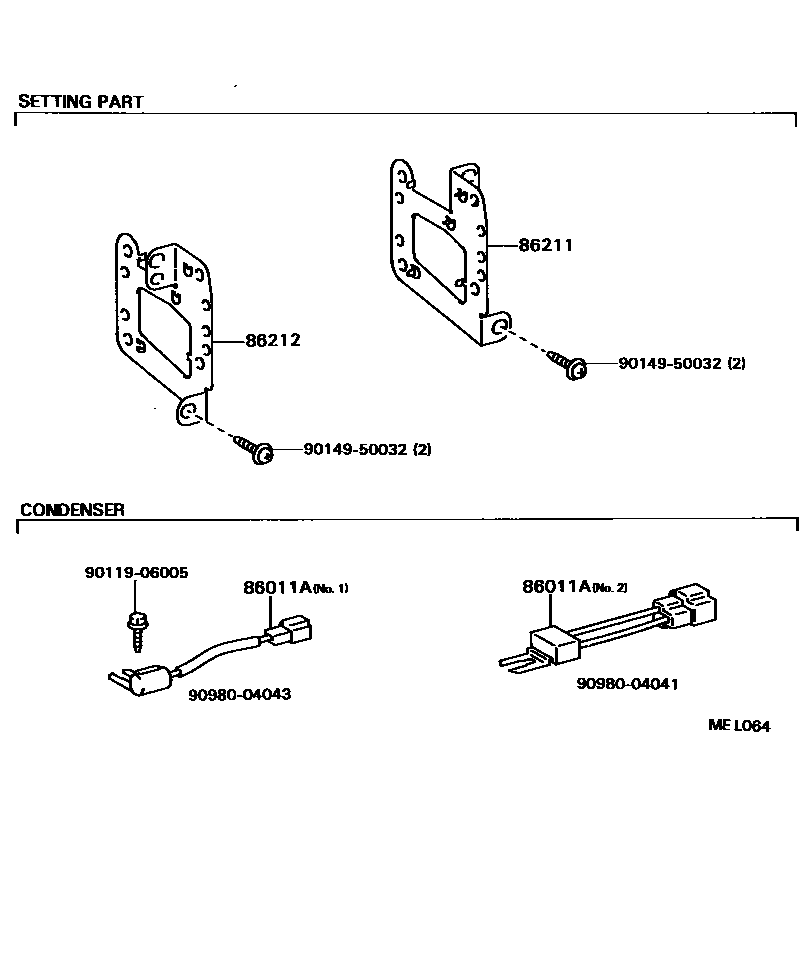

86011ACONDENSER, RADIO SETTING

main90980-04041iVZV21¥880198808-199106

NO.2

main90980-04043iVZV21¥640198808-199106

NO.1

86211BRACKET, RADIO, NO.1

main86211-32050iVZV21¥530198808-198810

sub86211-32051¥520

main86211-32051iVZV21¥520198810-199106

86212BRACKET, RADIO, NO.2

main86212-32050iVZV21¥530198808-198810

sub86212-32051¥520

main86212-32051iVZV21¥520198810-199106

9011906005

main90119-06005¥80

9014950032

main90149-50032¥80

9098004041

main90980-04041¥880

9098004043

main90980-04043¥640

7 parts on this diagram · 1 diagram in section
