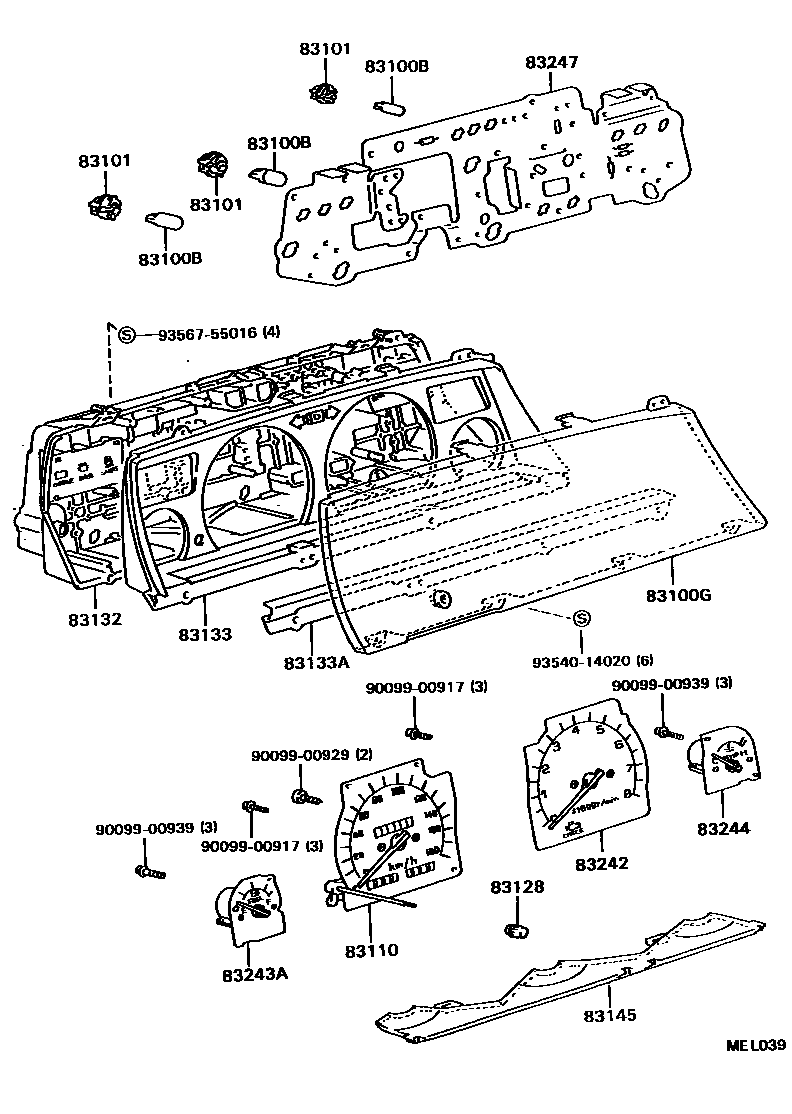

Toyota CAMRY — METER

0001 1ANALOG 0002 1DIGITAL 0003 1SOCKET & BULB 0004 1

83100BBULB, COMBINATION METER, NO.1

main83109-20030iVZV21198808-199106

12V 1.4W,BLUE CAP

main83109-24020iVZV21198808-199106

12V3.4W W(GREEN CAP)

main90981-11018iVZV21¥140198808-199106

12V 1.2W W/O SOCKET

main99132-12034iVZV21¥100198808-199106

12V 3.4W

83100GGLASS, COMBINATION METER

main83133-32350iVZV21198808-199106

W(DIGITAL SPEEDOMETER)

main83138-32010iVZV21198808-199106

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iVZV21198808-199106

NO.1

main83101-14040iVZV21198808-199106

NO.2

main83101-32010iVZV21198808-199106

W(DIGITAL SPEEDOMETER),NO.1

83110SPEEDOMETER ASSY

main83110-32551iVZV21¥29,300198808-199106

83128KNOB, TRIP COUNTER

main83128-14510iVZV21198808-199106

main83128-32130iVZV21198808-199106

W(DIGITAL SPEEDOMETER)

83132CASE, COMBINATION METER

main83132-32800iVZV21198808-199106

main83132-32890iVZV21198808-199106

W(DIGITAL SPEEDOMETER)

83133PLATE, COMBINATION METER, NO.1

main83133-32330iVZV21198808-199106

W(DIGITAL SPEEDOMETER)

main83133-32730iVZV21198808-199106

83133APLATE, COMBINATION METER, NO.2

main83133-32430iVZV21198808-199106

W(DIGITAL SPEEDOMETER)

main83133-32590iVZV21198808-199106

83145LENS, METER, NO.1

main83145-32330iVZV21198808-199106

W(DIGITAL SPEEDOMETER)

main83145-32350iVZV21198808-199106

83242TACHOMETER ASSY, ENGINE

main83242-32160iVZV21¥38,100198808-199106

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-3H050iVZV21¥9,200198808-199106

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-32590iVZV21¥6,800198808-199106

83247PLATE, METER CIRCUIT

main83149-32010iVZV21198808-199106

W(DIGITAL SPEEDOMETER)

main83247-3H090iVZV21198808-199106

9009900917

main90099-00917

9009900929

main90099-00929

9009900939

main90099-00939¥140

9354014020

main93540-14020¥120

9356755016

main93567-55016¥110

18 parts on this diagram · 4 diagrams in section
