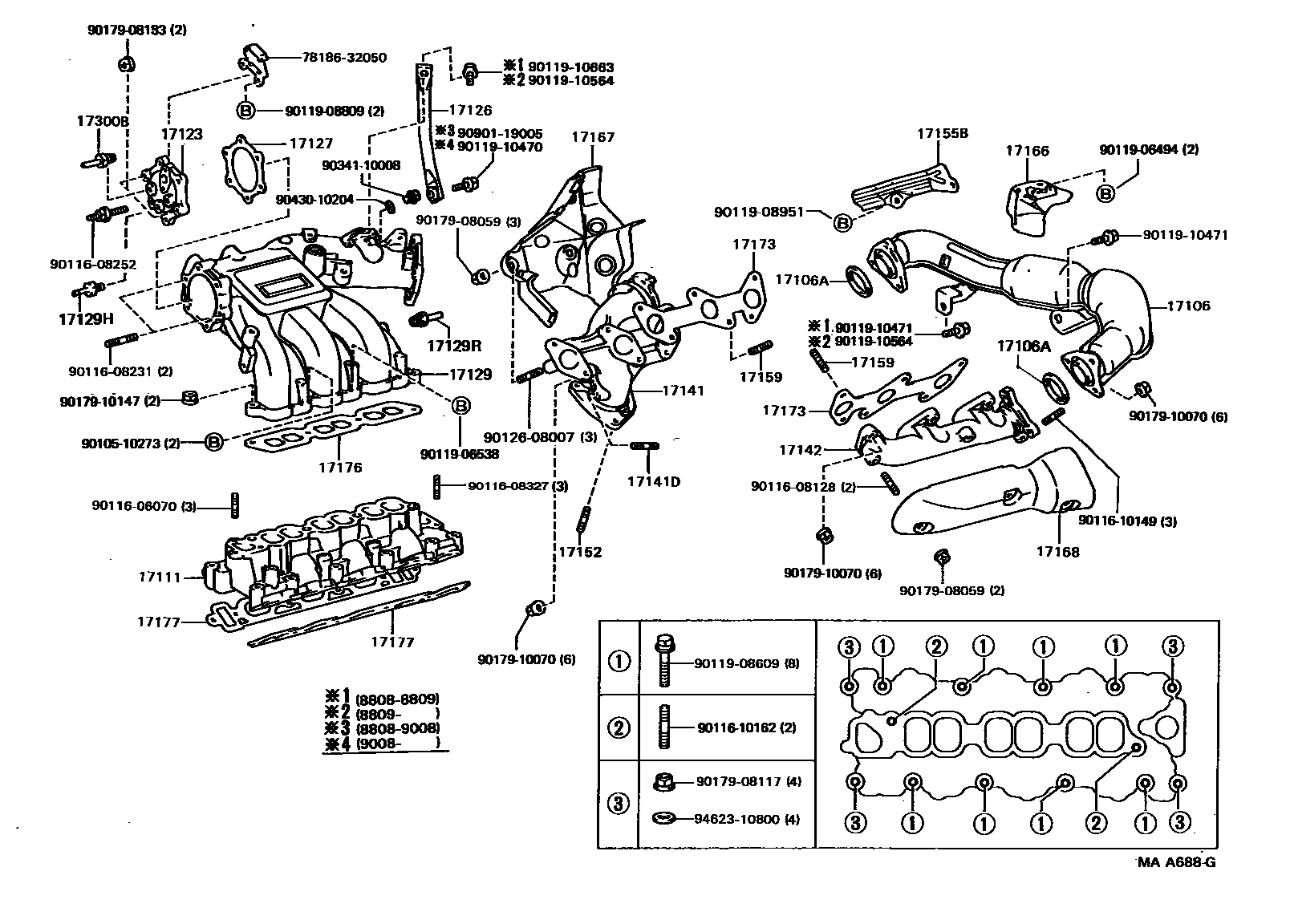

Toyota CAMRY — MANIFOLD
17106PIPE SUB-ASSY, EXHAUST CROSSOVER
17106AGASKET, EXHAUST PIPE
17111MANIFOLD, INTAKE
17123COVER, SURGE TANK
17126STAY, SURGE TANK, NO.2
17127GASKET, SURGE TANK COVER
17129TANK, INTAKE AIR SURGE
17129HUNION, NO.4
17129RPLUG, W/HEAD TAPER SCREW(FOR INTAKE AIR SURGE TANK)
17141MANIFOLD, EXHAUST
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17142CASE, EXHAUST MANIFOLD, NO.2
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17155BINSULATOR, EXHAUST MANIFOLD HEAT, NO.5
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
EXHAUST MANIFOLD
17166INSULATOR, EXHAUST MANIFOLD HEAT,NO.4
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17300BUNION(FOR INTAKE AIR CONTROL VALVE)
7818632050SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
9010510273
9011606070
9011608128
9011608231
9011608252
9011608327
9011610149
9011610162
9011906494
9011906538
9011908609
9011908809
9011908951
9011910470
9011910471
9011910564
9011910663
9012608007
9017908059
9017908117
9017908183
9017910070
9017910147
9034110008
9043010204
9090119005
9462310800
50 parts on this diagram · 1 diagram in section
