Toyota CAMRY — IGNITION COIL & SPARK PLUG / GLOW PLUG

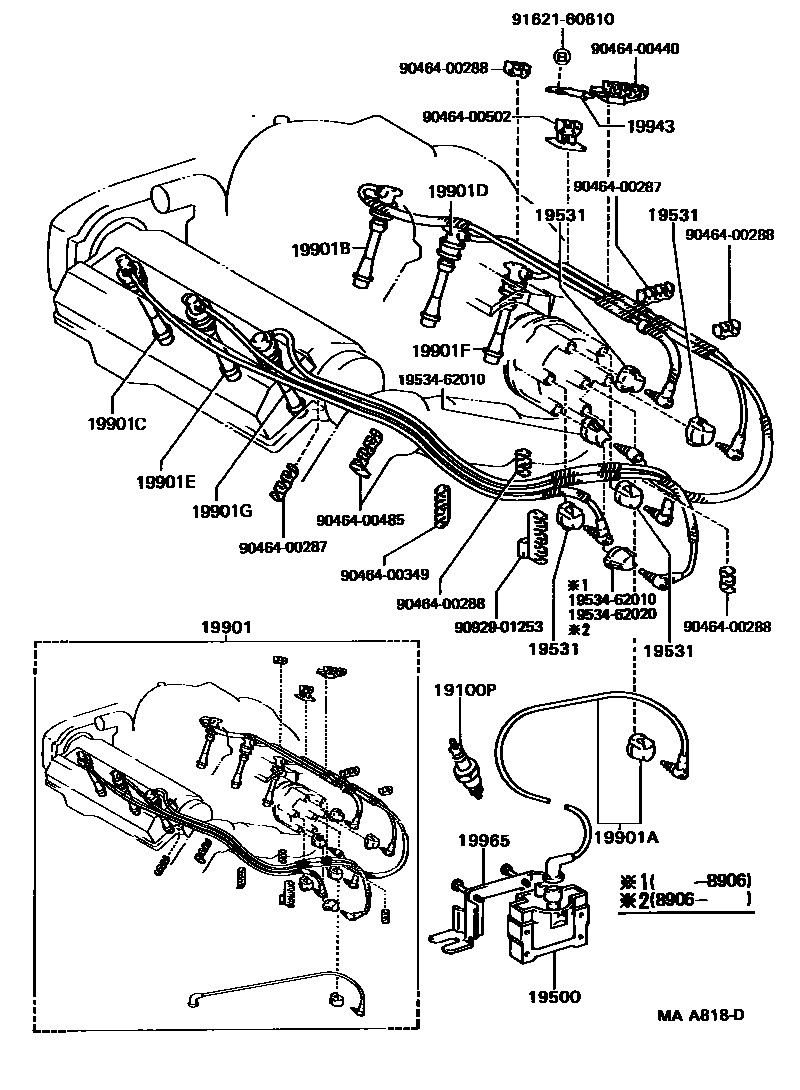

Parts diagram
19100PPLUG, SPARK
main90919-01127i¥1,500198808-199106
PQ20R
19500COIL ASSY, IGNITION
main90919-02185i¥11,900198808-199106
19531HOLDER, RESISTIVE CORD, NO.1
main19531-62010i¥680198808-198906
main19531-62020i¥710198906-199106
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-21414i¥12,600198808-198906
sub90919-21482¥10,700
main90919-21482i¥10,700198906
sub90919-21538¥10,700
19901ACORD, COIL RESISTIVE
main19590-62010i¥2,010198808-198906
main19590-62020i¥2,010198906-199102
sub19590-62040¥2,010
main19590-62040i¥2,010199102-199106
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-12811i¥1,750198808-199102
sub90919-15251¥1,750
main90919-15251i¥1,750199102-199106
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90919-12812i¥1,750198808-199102
sub90919-15252¥1,750
main90919-15252i¥1,750199102-199106
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-12813i¥1,750198808-199102
sub90919-15253¥1,750
main90919-15253i¥1,750199102-199106
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90919-12814i¥1,750198808-199102
sub90919-15254¥1,750
main90919-15254i¥1,750199102-199106
19901FCORD, SPARK PLUG RESISTIVE, NO.5
main90919-12815i¥1,600198808-199102
sub90919-15255¥1,600
main90919-15255i¥1,600199102-199106
19901GCORD, SPARK PLUG RESISTIVE, NO.6
main90919-12816i¥1,750198808-199102
sub90919-15256¥1,750
main90919-15256i¥1,750199102-199106
19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
main19943-62010i¥460198808-199106
19965BAND, IGNITION COIL, NO.1
main90919-03110i¥930198808-199106
1953462010HOLDER, RESISTIVE CORD, NO.4
main19534-62010¥680
1953462020HOLDER, RESISTIVE CORD, NO.4
main19534-62020¥710
9046400287
main90464-00287¥540
9046400288
main90464-00288¥460
9046400349
main90464-00349¥310
9046400440
main90464-00440¥270
9046400485
main90464-00485¥270
9046400502
main90464-00502¥210
9092901253
main90929-01253¥350
9162160610
main91621-60610¥100

23 parts on this diagram · 1 diagram in section
