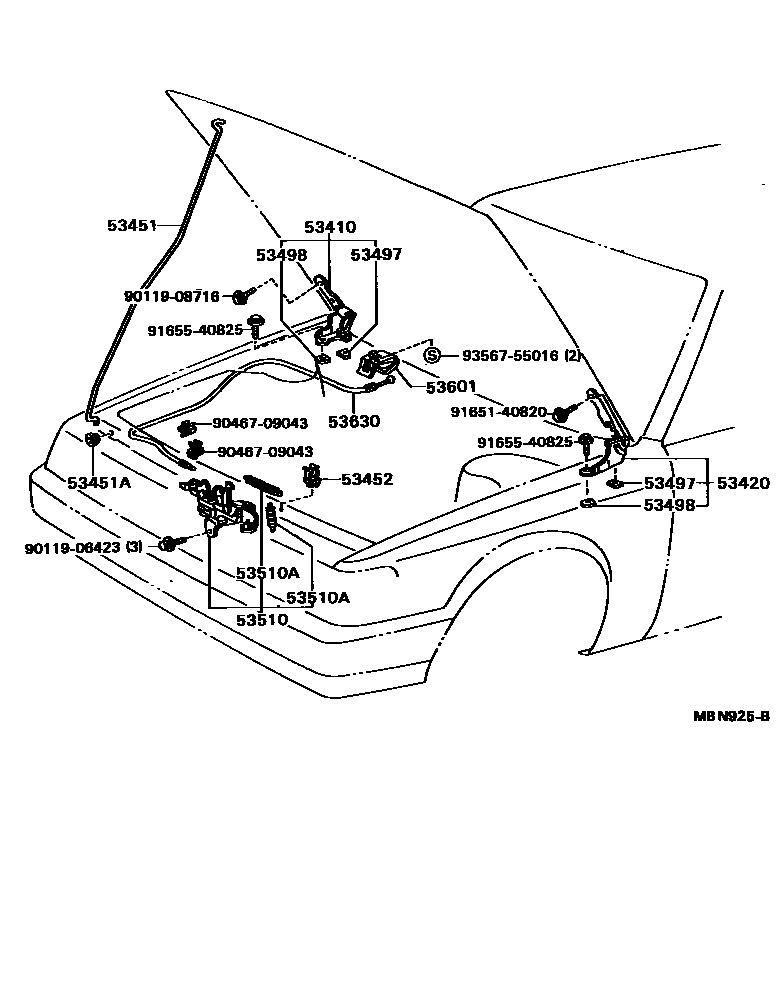

Toyota CAMRY — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-32031iVZV21¥2,250198808-199106

53420HINGE ASSY, HOOD, LH

main53420-32031iVZV21¥2,250198808-199106

53451ROD, HOOD SUPPORT

main53451-32030iVZV21¥2,170198808-199106

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15011iVZV21¥320198808-199106

53452HOLDER, HOOD STAY

main53452-32010iVZV21¥240198808-199106

53497PAD, HOOD HINGE, NO.1

main53497-17011iVZV21¥140198808-199106

53498PAD, HOOD HINGE, NO.2

main53498-12011iVZV21¥160198808-199106

53510LOCK ASSY, HOOD

main53510-32070iVZV21¥3,200198808-199106

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iVZV21¥300198808-199106

WD=0.9,L=39.6,WD=9.0

main90506-20054iVZV21¥260198808-199106

WD=2.0,CW=17,L=60,WD=14.5

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-13iVZV21198808-199106

MEDIUM GRAY,TRIM1#

sub53601-10020¥2,700

sub53601-20060¥2,590

main53601-10020-24iVZV21198808-198809

DARK BLUE,TRIM8#

sub53601-10020¥2,700

sub53601-20060¥2,590

main53601-10020-J0iVZV21198809-199106

DARK BLUE,TRIM8#

sub53601-10020¥2,700

sub53601-20060¥2,590

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-32070iVZV21¥1,650198808-199106

9011906423

main90119-06423¥70

9011908716

main90119-08716¥100

9046709043

main90467-09043¥160

9165140820

main91651-40820¥90

9165540825

main91655-40825¥170

9356755016

main93567-55016¥110

17 parts on this diagram · 1 diagram in section
