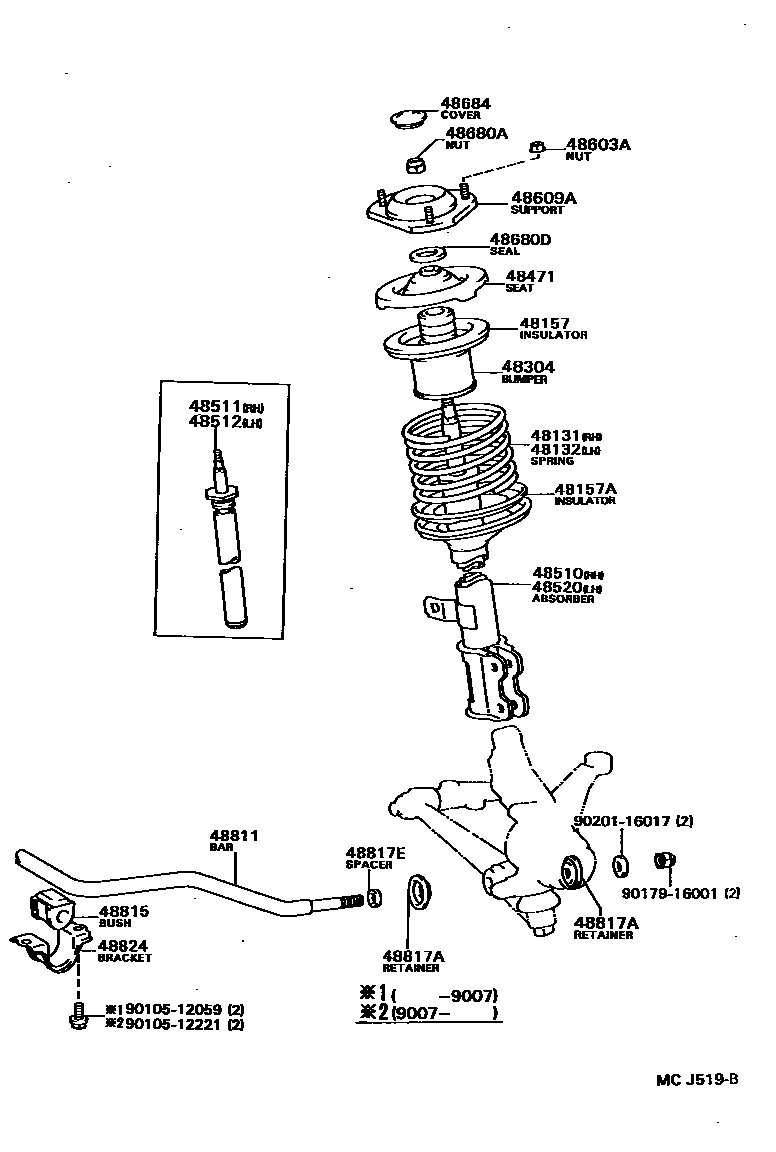

Toyota CAMRY — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157INSULATOR, FRONT COIL SPRING, UPPER
48157AINSULATOR, FRONT COIL SPRING, LOWER
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
48471SEAT, FRONT SPRING, UPPER
48510ABSORBER ASSY, SHOCK, FRONT RH
48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
48520ABSORBER ASSY, SHOCK, FRONT LH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817ESPACER(FOR STABILIZER BAR)
48824BRACKET, STABILIZER, FRONT
9010512059
9010512221
9017916001
9020116017
24 parts on this diagram · 1 diagram in section
