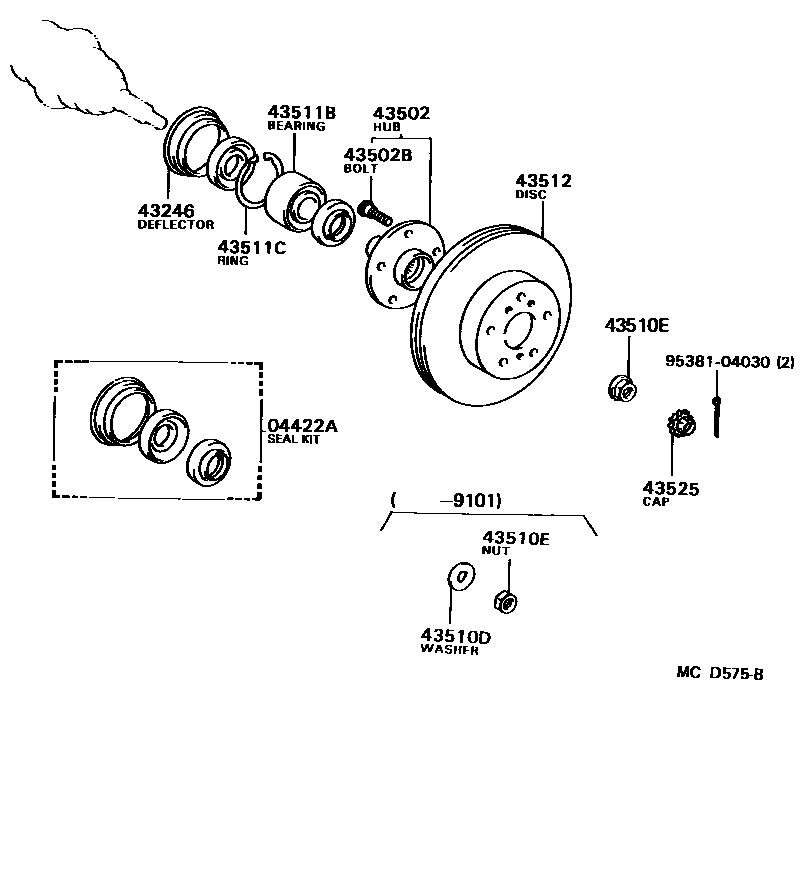

Toyota CAMRY — FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-32010iVZV21¥2,450198808-199106

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-32011iVZV21¥1,870198808-199106

43502HUB SUB-ASSY, FRONT AXLE

main43502-32040iVZV21¥9,900198808-198908

sub43502-32050¥9,900

main43502-32050iVZV21¥9,900198908-199106

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02049iVZV21¥240198808-199106

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20012iVZV21¥340198808-199101

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001iVZV21¥320198808-199101

main90179-22020iVZV21¥310199101-199106

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003iVZV21¥7,000198808-199106

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002iVZV21¥140198808-199106

OD=79

main90521-79003iVZV21¥250198808-199106

T=2.50-2.57

main90521-79004iVZV21¥250198808-199106

T=2.57-2.62

main90521-79005iVZV21¥250198808-199106

T=2.62-2.67

main90521-79006iVZV21¥250198808-199106

T=2.67-2.72

43512DISC, FRONT

main43512-32120iVZV21¥12,900198808-199106

sub43512-32200¥12,900

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iVZV21¥250198808-199101

main43525-20030iVZV21¥300199101-199106

9538104030

main95381-04030¥50

11 parts on this diagram · 1 diagram in section
