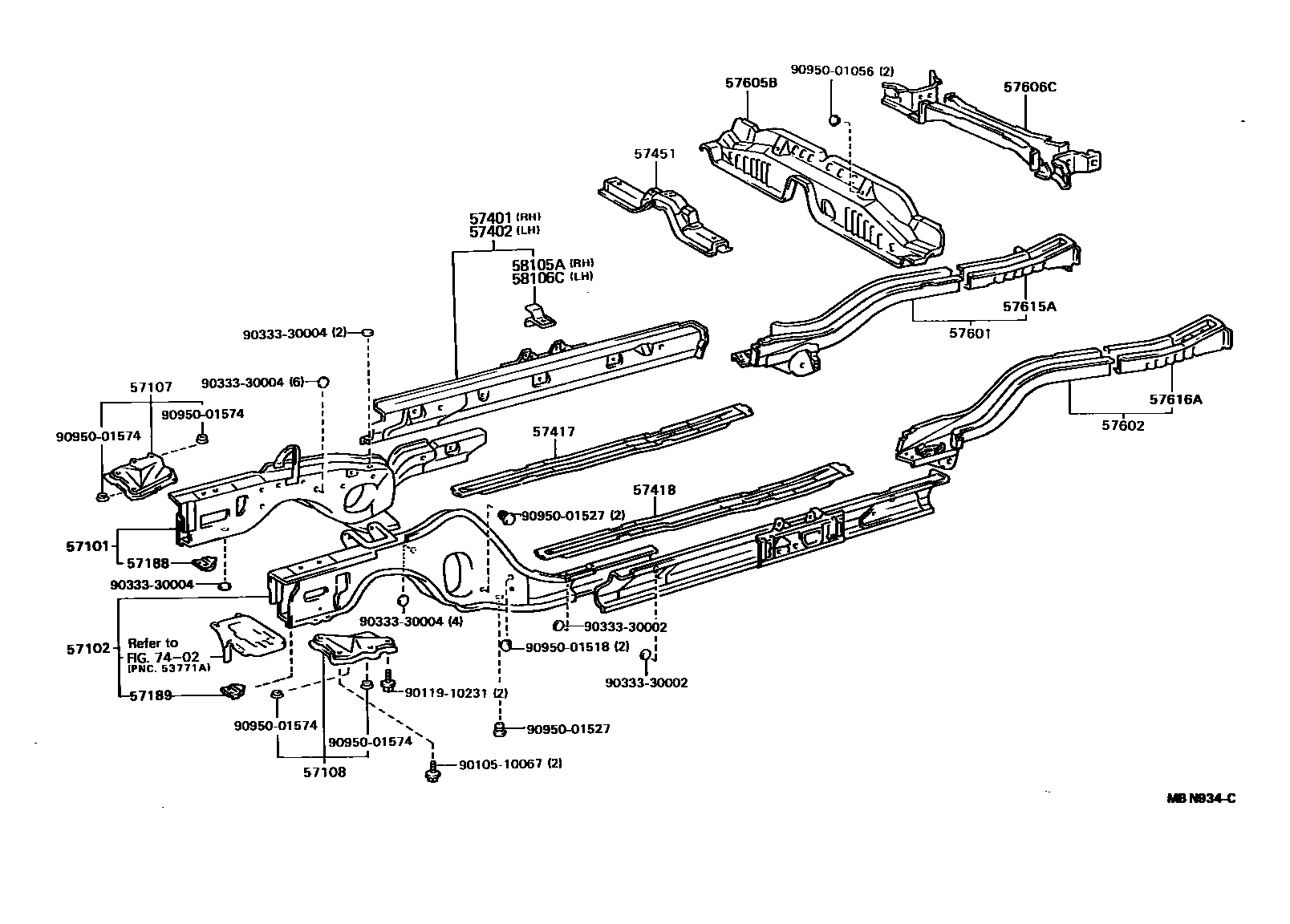

Toyota CAMRY — FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
57188REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57451MEMBER, FRONT FLOOR CROSS
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
58105ABRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE, RH
58106CBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
7402
9010510067
9011910231
9033330002
9033330004
9095001056
9095001518
9095001527
9095001574
28 parts on this diagram · 1 diagram in section
