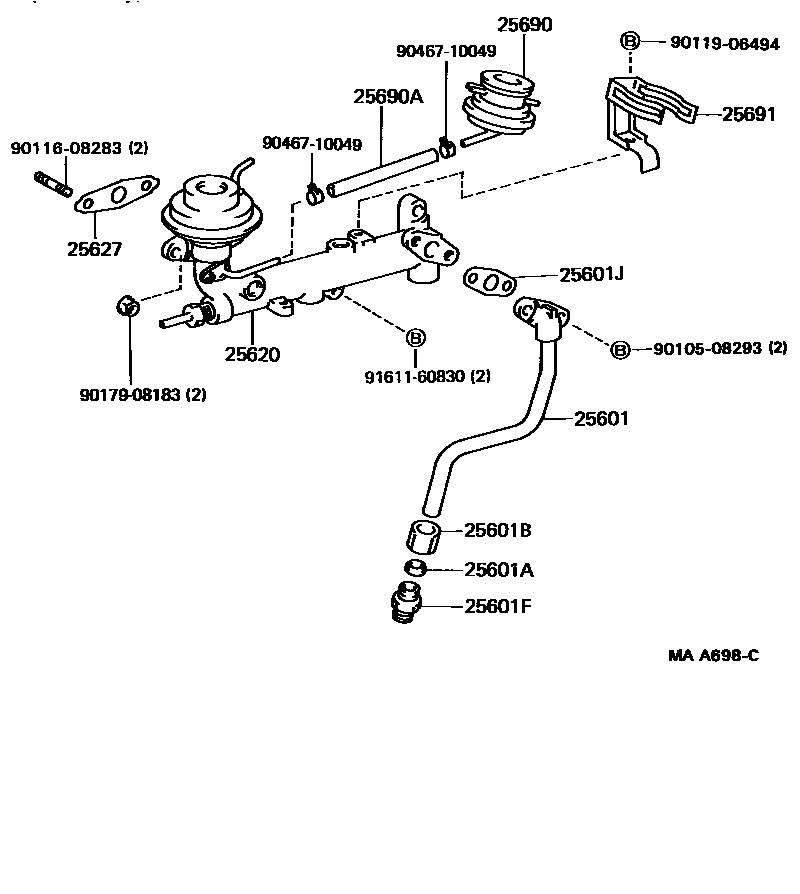

Toyota CAMRY — EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-62010i2VZFE..VZV21¥6,400198808-199106

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-16001i2VZFE..VZV21¥990198808-199106

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22012i2VZFE..VZV21¥720198808-199106

25601FUNION(FOR EGR PIPE, NO.1)

main90404-22003i2VZFE..VZV21¥1,880198808-199106

25601JGASKET(FOR EGR PIPE, NO.1)

main25627-62010i2VZFE..VZV21¥370198808-199106

25620VALVE ASSY, EGR

main25620-62020i2VZFE..VZV21¥28,900198808-199106

25627GASKET, EGR VALVE

main25627-62010i2VZFE..VZV21¥370198808-199106

25690MODULATOR ASSY, EGR VACUUM

main25870-62010i2VZFE..VZV21¥7,900198808-199106

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-62010i2VZFE..VZV21¥800198808-199106

25691BRACKET, EGR VACUUM MODULATOR

main25691-62010i2VZFE..VZV21¥620198808-199106

9010508293

main90105-08293¥140

9011608283

main90116-08283¥180

9011906494

main90119-06494¥120

9017908183

main90179-08183¥160

9046710049

main90467-10049¥140

9161160830

main91611-60830¥100

16 parts on this diagram · 1 diagram in section
