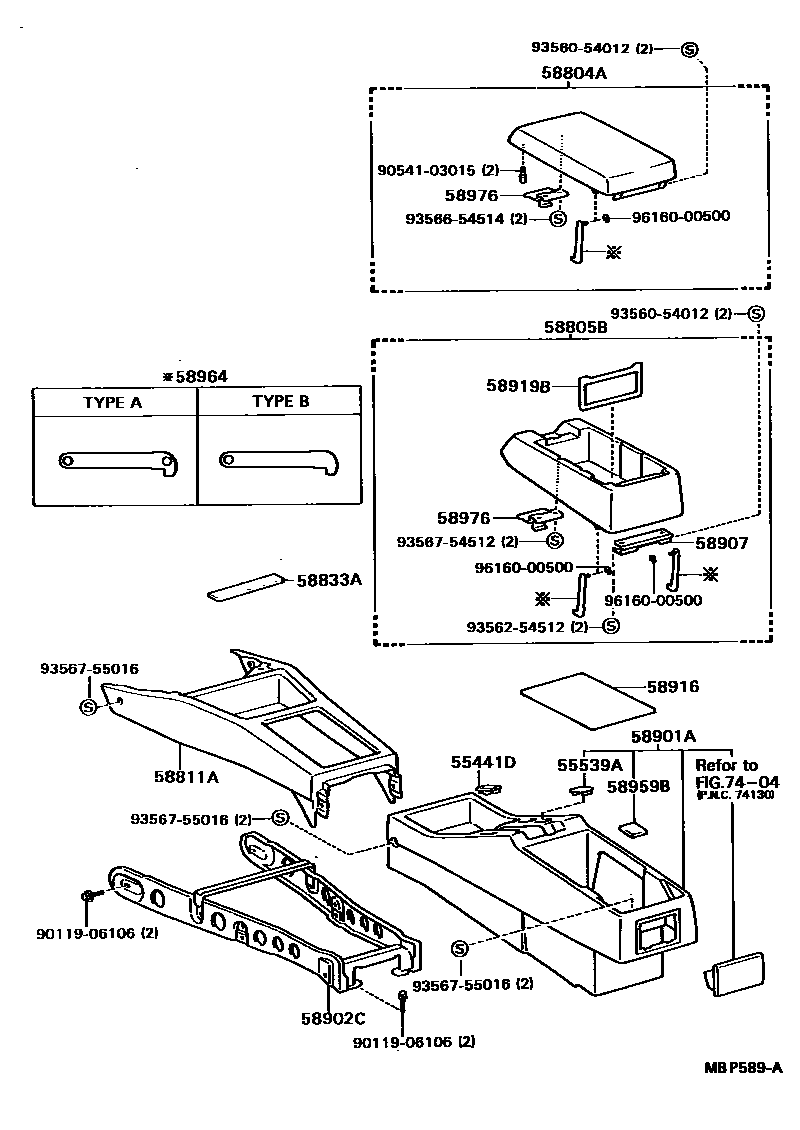

Toyota CAMRY — CONSOLE BOX & BRACKET
55441DBOX, INSTRUMENT PANEL COIN
55539ACOVER, SPARE SWITCH HOLE
58804APANEL SUB-ASSY, CONSOLE, UPPER
58805BPANEL SUB-ASSY, CONSOLE, LOWER
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
58811ABOX, CONSOLE, FRONT
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
58833ACOVER, CONSOLE, UPPER
58901ABOX SUB-ASSY, CONSOLE, REAR
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58916MAT, BOX BOTTOM
58919BPLATE, CONSOLE BOX
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
TYPE A
TYPE B
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
7404
9011906106
9054103015
9356054012
9356254512
main93562-54512
9356654514
9356754512
9356755016
9616000500
23 parts on this diagram · 1 diagram in section
