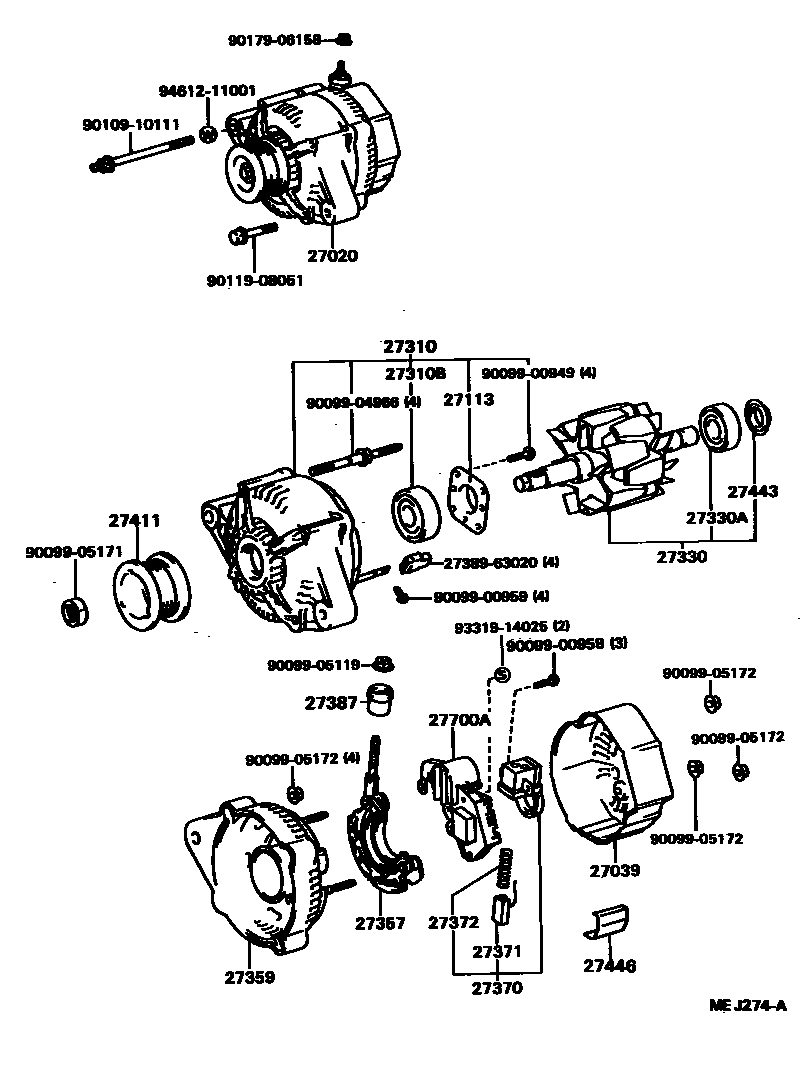

Toyota CAMRY — ALTERNATOR

27020ALTERNATOR ASSY

main27060-62012i2VZFE..VZV21¥117,000198808-199106

12V 70A

27039COVER, ALTERNATOR REAR END

main27039-72010i2VZFE..VZV21198808-199106

sub27039-15170

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-70200i2VZFE..VZV21198808-199106

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-62011i2VZFE..VZV21198808-199106

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i2VZFE..VZV21198808-199106

27330ROTOR ASSY, ALTERNATOR

main27330-72101i2VZFE..VZV21198808-199106

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i2VZFE..VZV21198808-199106

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i2VZFE..VZV21¥0198808-199106

27359FRAME, ALTERNATOR RECTIFIER END

main27359-70200i2VZFE..VZV21198808-199106

sub27359-43160

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-63021i2VZFE..VZV21198808-199106

sub27370-70300

27371BRUSH, ALTERNATOR

main27371-63020i2VZFE..VZV21198808-199106

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-72100i2VZFE..VZV21198808-199001

sub27372-63020

27387INSULATOR, TERMINAL

main27387-70170i2VZFE..VZV21198808-199106

27411PULLEY, ALTERNATOR

main27411-62011i2VZFE..VZV21198808-199106

sub27411-22080

27443COVER, ALTERNATOR BEARING

main27443-63020i2VZFE..VZV21198808-199106

27446CLIP, ALTERNATOR CORD

main27446-62012i2VZFE..VZV21198808-199106

27700AREGULATOR ASSY, GENERATOR

main27700-70030i2VZFE..VZV21¥19,600198808-199106

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966¥0

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010910111

main90109-10111¥400

9011908051

main90119-08051¥190

9017906158

main90179-06158¥70

9331914025

main93319-14025¥70

9461211001

main94612-11001¥60

29 parts on this diagram · 1 diagram in section
