Toyota CAMRY — AIR CLEANER

17700CLEANER ASSY, AIR

main17700-62020i2VZFE..VZV21¥25,100198808-199106

17705CAP SUB-ASSY, AIR CLEANER

main17705-62020i2VZFE..VZV21198808-199106

17783PLATE, AIR CLEANER BAFFLE

main17783-74030i2VZFE..VZV21¥620198808-199106

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74020i2VZFE..VZV21¥3,050198808-199106

17881HOSE, AIR CLEANER, NO.1

main17881-62020i2VZFE..VZV21¥5,700198808-199106

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i2VZFE..VZV21¥190198808-199106

NO.1

main96111-10900i2VZFE..VZV21¥410198808-199106

NO.2

17883HOSE, AIR CLEANER, NO.3

main17882-63110i2VZFE..VZV21¥8,000198808-199106

17884HOSE, AIR CLEANER, NO.4

main17883-62010i2VZFE..VZV21¥6,200198808-198908

sub17883-62011¥4,970

main17883-62011i2VZFE..VZV21¥4,970198908-199106

17893RESONATOR, INTAKE AIR

main17893-62010i2VZFE..VZV21¥3,590198808-199106

22250METER ASSY, INTAKE AIR FLOW

main22250-62020i2VZFE..VZV21¥68,100198808-199106

22275GASKET, AIR FLOW METER

main22275-43010i2VZFE..VZV21¥890198808-199106

9009904995

main90099-04995

9011906123

main90119-06123¥100

9017906115

main90179-06115¥120

9017906226

main90179-06226

9020106023

main90201-06023

9038507002

main90385-07002¥140

9038907014

main90389-07014¥200

91655F0625

main91655-F0625¥110

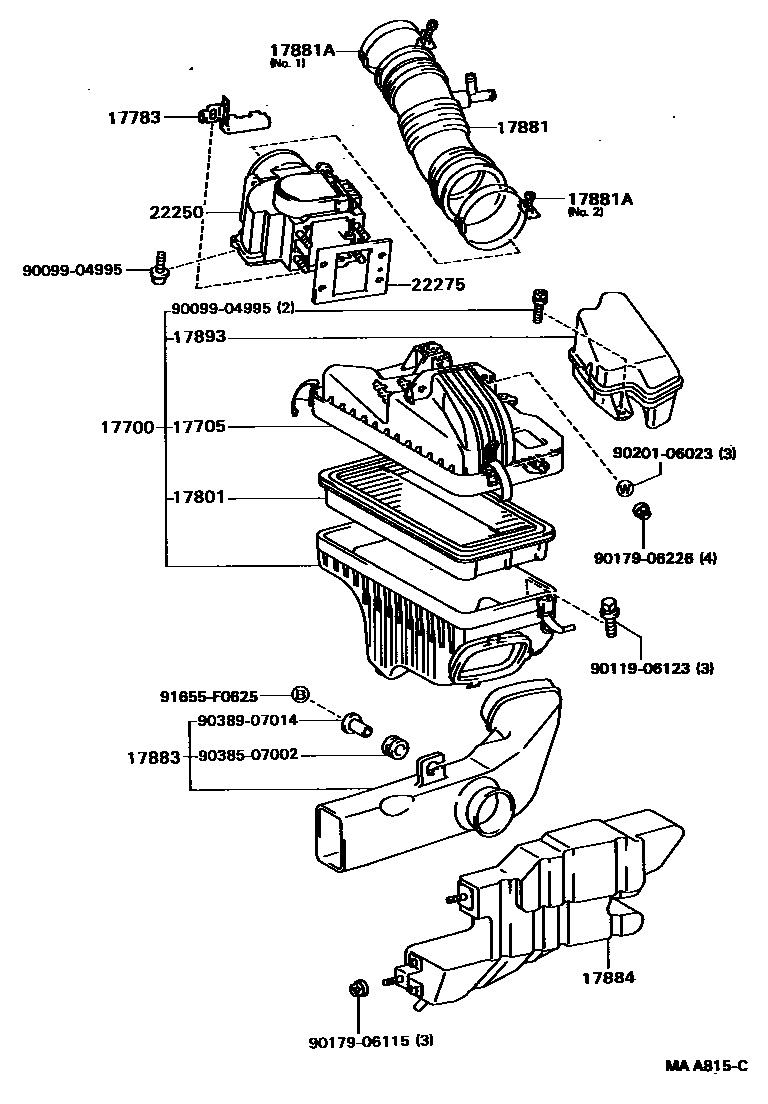

19 parts on this diagram · 1 diagram in section
