Toyota CAMRY — V-BELT

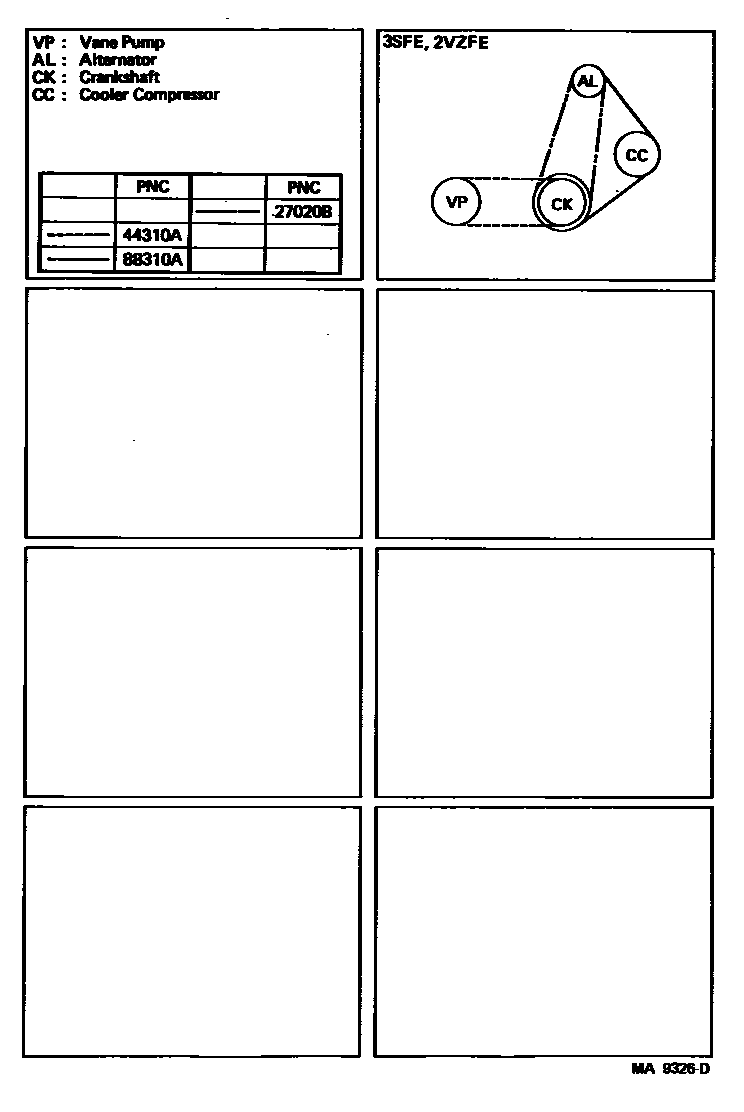

Parts diagram

27020BBELT, V(FOR ALTERNATOR)

main90916-02219i¥3,850198803-198808

sub90916-02295¥3,850

main99365-01000i¥3,040198608-198803

sub99365-81000¥3,040

main99366-50940i¥3,650198802-198808

sub99366-80940¥3,650

44310ABELT, V(FOR VANE PUMP)

main90916-02177i¥1,850198802-198808

main99363-50760i¥1,450198608-198808

sub99363-80760¥1,450

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99365-51110i¥3,650198608-198808

sub99365-81110¥3,650

main99366-01050i¥3,970198802-198808

W(A/C-MANUAL A/C)

sub90916-02373¥5,100

3 parts on this diagram · 1 diagram in section
