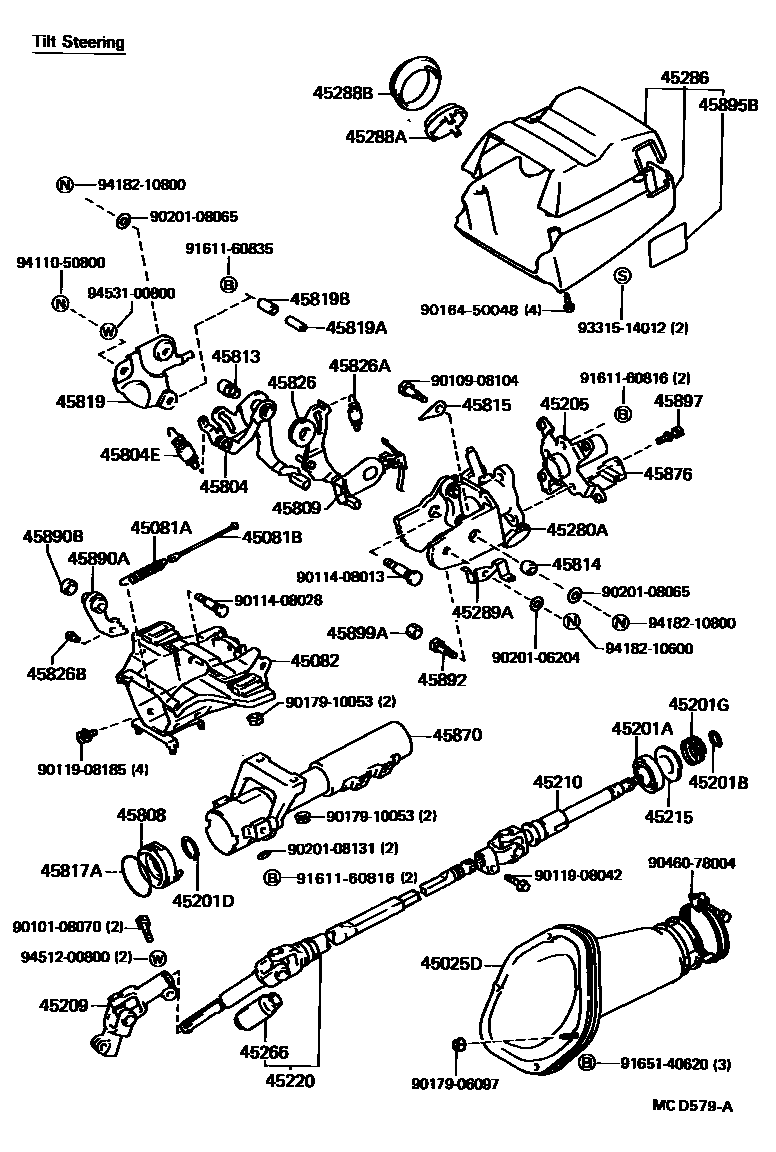

Toyota CAMRY — STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45081ASPRING, TENSION(FOR TILT STEERING)
45081BCORD(FOR TILT STEERING)
L=122,W(TILT STEERING)
L=122
L=122,L=124.75
L=123,W(TILT STEERING)
L=123,L=125.75
L=123
45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
T=1.20
T=1.20,W(TILT STEERING)
T=1.35-1.45
45201DRING(FOR STEERING MAIN SHAFT)
W(TILT STEERING)
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
W(TILT STEERING)
W/TILT STEERING
45215COLLAR, MAIN SHAFT BEARING THRUST
45220SHAFT ASSY, STEERING INTERMEDIATE
45266COVER, STEERING INTERMEDIATE SHAFT DUST
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
MAROON,W/TILT STEERING,MAROON,TRIM3#
GRAY,W/TILT STEERING,MEDIUM GRAY,TRIM1#
BLUE,W/TILT STEERING,DARK BLUE,TRIM8#
BEIGE,W/TILT STEERING,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
W(POWER STEERING),MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
45288ASPACER, COLUMN COVER
45288BCOVER, STEERING COLUMN, UPPER
45289ASUPPORT, STEERING COLUMN COVER
45804LEVER SUB-ASSY, STEERING TILT
45804ESPRING, TENSION(FOR STEERING TILT LEVER)
45808STOPPER SUB-ASSY, STEERING SHAFT THRUST
45809COVER SUB-ASSY, ADJUSTER MEMORY
45813COLLAR, TILT STEERING SUPPORT, NO.1
OD=17.996-18.003
45814COLLAR, TILT STEERING SUPPORT, NO.2
OD=18.000-17.993,OD=17.993-18.000
OD=18.000-17.993
OD=18.000-17.993,W(TILT STEERING)
OD=18.018-18.011,W(TILT STEERING)
OD=18.018-18.011,OD=18.011-18.018
OD=18.018-18.011
45815SHIM, TILT STEERING SUPPORT
T=0.2,T=0.2
T=0.2
T=0.5
T=0.5,T=0.5
T=0.8
T=0.8,T=0.8
T=1.4
T=1.4,T=1.4
T=1.8,T=1.8
T=1.8
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
45819RETAINER, TILT LEVER
45819ACOLLAR(FOR TILT LEVER RETAINER)
45819BCUSHION(FOR TILT LEVER RETAINER)
45826LEVER, STEERING TILT
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826BPIN(FOR STEERING TILT LEVER)
45870TUBE ASSY, STEERING COLUMN
W(TILT STEERING)
W/TILT STEERING
45876GUIDE, TURN SIGNAL CORD
45890APAWL ASSY, TILT STEERING
45890BSPACER(FOR TILT STEERING PAWL)
45892BOLT, TILT STEERING SUPPORT STOPPER
45895BPLATE, TILT LEVER INSTRUCTION
45897BOLT, STEERING LOCK SET
W(TILT STEERING)
45899ACOVER, TILT STEERING SUPPORT STOPPER
9010108070
9010908104
9011408013
9011408028
9011908042
9011908185
9016450048
9017906097
9017910053
9020106204
9020108065
9020108131
9046078004
9161160816
9161160835
9165140620
9331514012
9411050800
9418210600
9418210800
9451200800
9453100800
63 parts on this diagram · 2 diagrams in section
