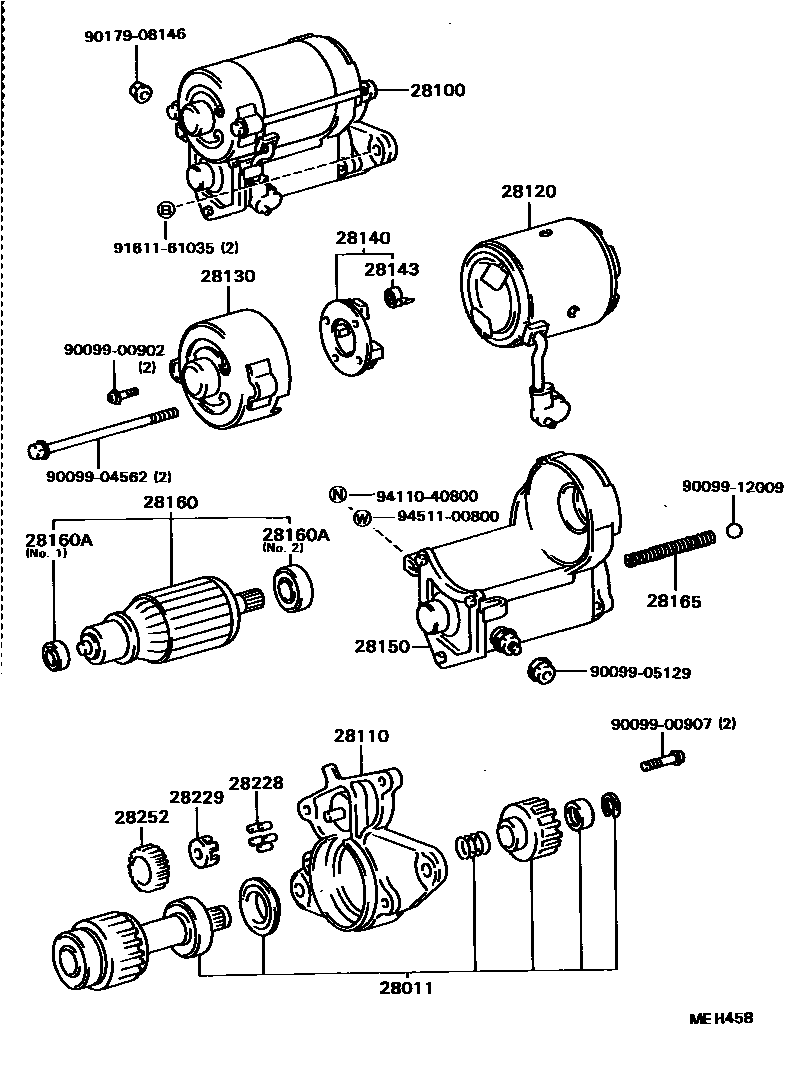

Toyota CAMRY — STARTER

0001 112V 1.0KW 0002 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-74010i3SFE..SV21¥21,700198608-198710

12V 1.0KW,1.4KW

sub28011-74011¥18,500

main28011-74010i3SFE,2VZFE..SV2#,VZV21¥21,700198710-198805

12V 1.0KW,1.4KW

sub28011-74011¥18,500

main28011-74011i3SFE,2VZFE..SV2#,VZV21¥18,500198805-198808

12V 1.0KW,1.4KW

sub28011-74060¥18,300

28100STARTER ASSY

main28100-62010i2VZFE..VZV21..USA¥95,200198802-198805

12V 1.0KW

sub28100-62011¥94,600

main28100-62011i2VZFE..VZV21..USA¥94,600198805-198808

12V 1.0KW

sub28100-74070¥93,200

main28100-62021i2VZFE..VZV21¥105,000198805-198808

12V 1.4KW

sub28100-74050¥111,000

main28100-74010i3SFE..SV2#..(DX,LE)..USA¥95,200198710-198805

12V 1.0KW

sub28100-74011¥94,600

main28100-74010i3SFE..SV21..USA¥95,200198608-198710

12V 1.0KW,12V 1.0KW

sub28100-74011¥94,600

main28100-74011i3SFE..SV21..STD..USA¥94,600198805-198808

12V 1.0KW

main28100-74020i3SFE..SV21¥111,000198608-198710

12V 1.4KW,12V 1.4KW

sub28100-74021¥105,000

main28100-74021i3SFE..SV2#..DX,LE;3SFE..SV21..STD..CND¥105,000198805-198808

12V 1.4KW

sub28100-74090¥105,000

28110HOUSING ASSY, STARTER DRIVE

main28110-62010i2VZFE..VZV21..USA¥4,090198802-198808

12V 1.0KW

main28110-62020i2VZFE..VZV21¥6,600198802-198808

12V 1.4KW

main28110-74010i3SFE..SV2#..(DX,LE)..USA¥6,600198710-198808

12V 1.0KW

main28110-74010i3SFE..SV21..USA¥6,600198608-198710

12V 1.0KW

main28110-74020i3SFE..SV21..STD..USA¥8,200198710-198808

12V 1.4KW

main28110-74020i3SFE..SV21¥8,200198608-198710

12V 1.4KW

28120YOKE ASSY, STARTER

main28120-15090i3SFE..SV21..STD..CND;3SFE,2VZFE..SV2#,VZV21..DX,LE198710-198808

12V 1.4KW

main28120-15090i3SFE..SV21198608-198710

12V 1.4KW

main28120-26071i3SFE..SV21..USA198608-198710

12V 1.0KW

main28120-26071i3SFE..SV21..STD..USA198710-198808

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-62020i2VZFE..VZV21¥4,160198802-198808

12V 1.4KW

main28130-74010i3SFE..SV21..STD..USA¥2,370198710-198808

12V 1.0KW

main28130-74010i3SFE..SV21..USA¥2,370198608-198710

12V 1.0KW

main28130-74020i3SFE..SV21..STD..USA¥3,330198710-198808

12V 1.4KW

main28130-74020i3SFE..SV21¥3,330198608-198710

12V 1.4KW

28140HOLDER ASSY, STARTER BRUSH

main28140-74010i3SFE..SV21..USA198608-198710

12V 1.0KW

main28140-74010i3SFE,2VZFE..SV2#,VZV21..(DX,LE)..USA198710-198808

12V 1.0KW

main28140-74020i3SFE..SV21198608-198710

12V 1.4KW

main28140-74020i3SFE..SV21..STD..USA198710-198808

12V 1.4KW

28143SPRING, STARTER BRUSH

main90099-17112i3SFE..SV21198608-198710

12V 1,0KW,1.4KW

main90099-17112i3SFE,2VZFE..SV2#,VZV21198710-198808

12V 1.0KW,1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-74010i3SFE..SV21..STD..USA¥25,700198710-198808

12V 1.0KW

main28150-74010i3SFE..SV21..USA¥25,700198608-198710

12V 1.0KW

main28150-74020i3SFE..SV21..STD..CND;3SFE,2VZFE..SV2#,VZV21..DX,LE¥25,700198710-198808

12V 1.4KW

main28150-74020i3SFE..SV21¥25,700198608-198710

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-15090i3SFE..SV21¥24,100198608-198710

12V 1.4KW

sub28160-15091

main28160-15090i3SFE..SV21..STD..USA¥24,100198710-198808

12V 1.4KW

sub28160-15091

main28160-26070i3SFE,2VZFE..SV2#,VZV21..(DX,LE)..USA¥24,100198710-198808

12V 1.0KW

sub28160-26071

main28160-26070i3SFE..SV21..USA¥24,100198608-198710

12V 1.0KW

sub28160-26071

28160ABEARING, STARTER ARMATURE

main28253-45020i3SFE..SV21..STD..USA198710-198808

12V 1.0KW,NO.1

main28253-45020i3SFE..SV21..USA198608-198710

NO.1,12V 1.0KW

main90099-10113i3SFE,2VZFE..SV2#,VZV21..(DX,LE)..USA198710-198808

12V 1.0KW,NO.2

main90099-10113i3SFE..SV21..USA198608-198710

NO.2,12V 1.0KW

main90099-10143i3SFE..SV21..STD..CND;3SFE,2VZFE..SV2#,VZV21..DX,LE198710-198808

12V 1.4KW,NO.2

main90099-10143i3SFE..SV21198608-198710

NO.2,12V 1.4KW

main90099-10144i3SFE..SV21198608-198710

NO.1,12V 1.4KW

main90099-10144i3SFE..SV21..STD..USA198710-198808

12V 1.4KW,NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-74010i3SFE,2VZFE..SV2#,VZV21¥0198710-198808

12V 1.0KW,1.4KW

main28165-74010i3SFE..SV21¥0198608-198710

12V 1.0KW,1.4KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i3SFE..SV21198608-198710

12V 1.0KW,1.4KW

main28228-26040i3SFE,2VZFE..SV2#,VZV21198710-198808

12V 1.0KW,1.4KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i3SFE..SV21198608-198710

12V 1.0KW,1.4KW

main28229-26040i3SFE,2VZFE..SV2#,VZV21198710-198808

12V 1.0KW,1.4KW

28252GEAR, STARTER IDLE

main28254-45020i3SFE..SV21198608-198710

12V 1.0KW,1.4KW

main28254-45020i3SFE..SV2#198710-198808

12V 1.0KW,1.4KW

main28254-54070i2VZFE..VZV21198802-198808

12V 1.0KW,1.4KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146¥180

9161161035

main91611-61035¥130

9411040800

main94110-40800¥120

9451100800

main94511-00800¥100

23 parts on this diagram · 2 diagrams in section
