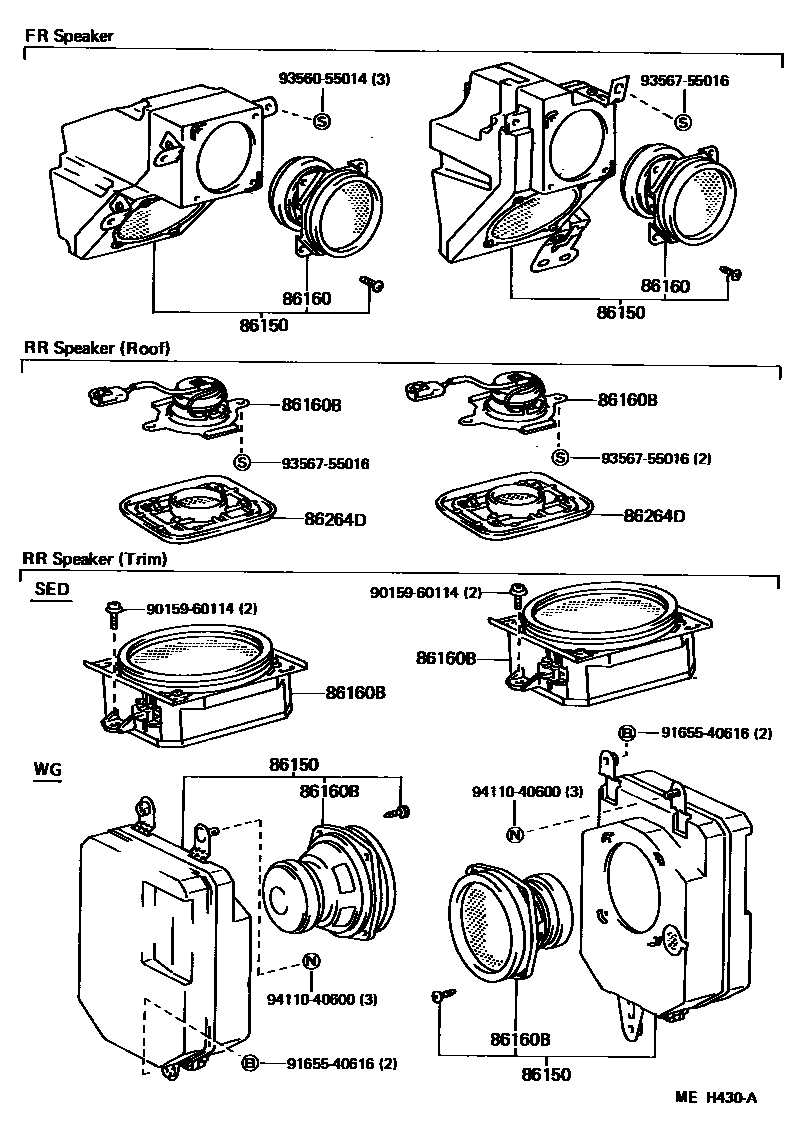

Toyota CAMRY — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-32060iSV21..(DX,STD)..CND¥10,600198710-198808

FR,RH

main86150-32060iSV21..CND¥10,600198608-198710

FR,RH

main86150-32070iSV21..(DX,STD)..CND¥10,600198710-198808

FR,LH

main86150-32070iSV21..CND¥10,600198608-198710

FR,LH

main86150-32100iSV21..USA¥10,700198608-198610

FR,LH

sub86150-32101¥10,800

main86150-32101iSV2#..LE..USA¥10,800198710-198712

FR,LH

sub86150-32102

main86150-32101iSV21..USA¥10,800198610-198710

FR,LH

sub86150-32102

main86150-32102iSV2#,VZV21..LE..USA198712-198806

FR,LH

main86150-32110iSV21..STD..USA¥10,800198710-198712

FR,RH

sub86150-32111

main86150-32110iSV21..USA¥10,800198608-198710

FR,RH

sub86150-32111

main86150-32111iSV2#,VZV21..LE..USA198712-198806

FR,RH

main86150-32120iSV21,VZV21..WG..LE¥14,700198710-198808

RR,RH

main86150-32120iSV21..WG¥14,700198608-198710

RR,RH

main86150-32130iSV21,VZV21..WG..LE¥14,700198710-198808

RR,LH

main86150-32130iSV21..WG¥14,700198608-198710

RR,LH

main86150-32140iSV21..STD..USA198806-198808

FR,RH

main86150-32150iSV21..STD..USA198806-198808

FR,LH

86160SPEAKER ASSY, FRONT NO.1

main86160-32130iSV2#,VZV21..LE..CND¥6,600198710-198808

main86160-32130iSV21..CND¥6,600198608-198710

main86160-32140iSV21..STD..USA¥6,600198710-198712

sub86160-32141¥6,600

main86160-32140iSV21..USA¥6,600198608-198710

sub86160-32141¥6,600

main86160-32141iSV21..STD..USA¥6,600198712-198808

86160BSPEAKER ASSY, REAR

main86160-32150iSV21,VZV21..WG..DX¥8,500198710-198808

SIDE

main86160-32150iSV21..WG¥8,500198608-198710

SIDE

main86160-32160iSV21,VZV21..WG..LE¥5,900198710-198808

ROOF

main86160-32160iSV21..WG¥5,900198608-198710

ROOF

main86160-32170iSV2#,VZV21..SED..LE¥9,300198710-198808

sub86160-32180¥9,200

main86160-32170iSV21..SED¥9,300198608-198710

sub86160-32180¥9,200

86264DGRILLE, SPEAKER, ROOF

main86269-32020-02iVZV21..WG..DX198710-198808

MAROON,TRIM3#

main86269-32020-02iSV21..WG..USA198608-198710

MAROON,MAROON,TRIM3#

main86269-32020-03iSV21..WG;VZV21..WG..LE198710-198808

LIGHT GRAY,TRIM1#

main86269-32020-03iSV21..WG198608-198710

GRAY,LIGHT GRAY,TRIM1#,8#

main86269-32020-03iVZV21..WG..DX198710-198808

LIGHT GRAY,TRIM1#,8#

main86269-32020-04iSV21..WG198608-198710

BLUE,LIGHT BLUE,TRIM8#

main86269-32020-04iVZV21..WG..DX198710-198808

LIGHT BLUE,TRIM8#

main86269-32020-05iSV21..WG;VZV21..WG..LE198710-198808

LIGHT BEIGE,TRIM4#

main86269-32020-05iSV21..WG198608-198710

BEIGE,LIGHT BEIGE,TRIM4#

9015960114

main90159-60114¥130

9165540616

main91655-40616¥120

9356055014

main93560-55014¥60

9356755016

main93567-55016¥110

9411040600

main94110-40600¥80

9 parts on this diagram · 1 diagram in section
