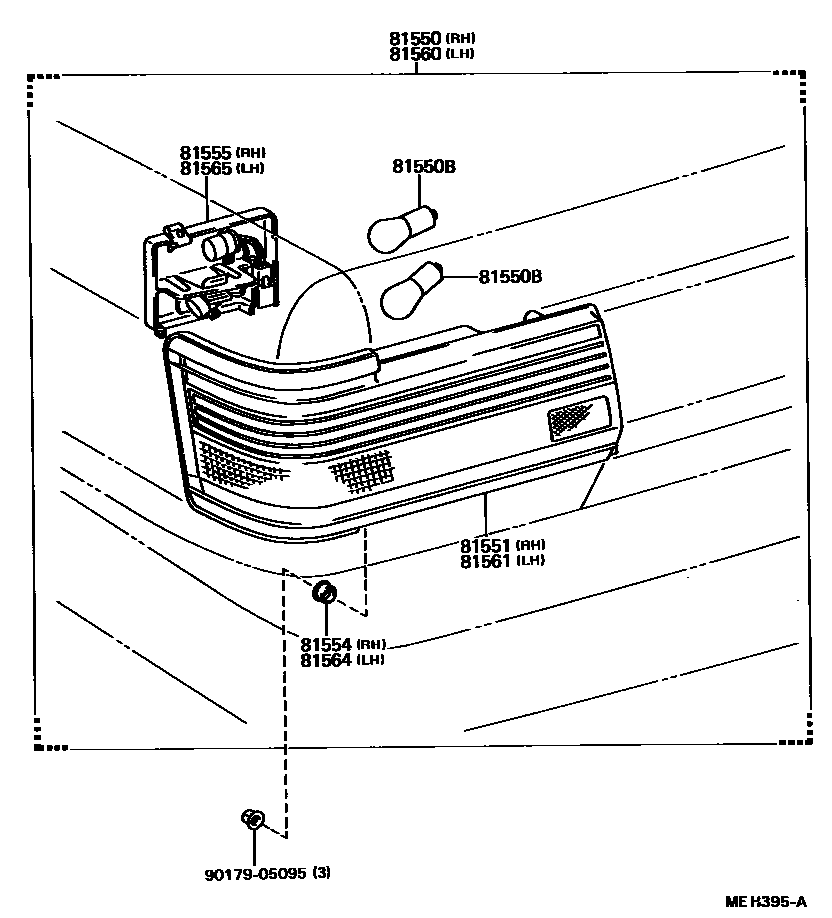

Toyota CAMRY — REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-32140iSV2#,VZV21..SED¥20,400198608-198808

main81550-32170iSV21..WG¥11,400198608-198808

sub81551-32170¥7,400

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11270iSV2#,VZV21¥210198710-198808

12V 27W

main99132-11270iSV21¥210198608-198710

12V 27W,12V 27W(TURN)

main99132-21270iSV2#,VZV21¥270198710-198808

12V 27/8W

main99132-21270iSV21¥270198608-198710

12V 27/8W,12V 27/8W(STOP & TAIL)

81551LENS, REAR COMBINATION LAMP, RH

main81551-32140iSV21..SED¥16,800198608-198808

main81551-32170iSV21..WG¥7,400198608-198808

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81558-20720iSV21..SED¥310198608-198808

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-32140iSV2#,VZV21..SED¥2,520198608-198808

main81555-32160iSV21,VZV21..WG¥2,520198608-198808

81560LAMP ASSY, REAR COMBINATION, LH

main81560-32140iSV21..SED¥20,400198608-198808

main81560-32170iSV21..WG¥11,400198608-198808

81561LENS, REAR COMBINATION LAMP, LH

main81561-32140iSV2#,VZV21..SED¥16,800198608-198808

main81561-32170iSV21..WG¥7,400198608-198808

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81558-20720iSV21..SED¥310198608-198808

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-32140iSV21..SED¥2,520198608-198808

main81565-32160iSV21,VZV21..WG¥2,500198608-198808

sub81555-32160¥2,520

9017905095

main90179-05095¥240

10 parts on this diagram · 2 diagrams in section
