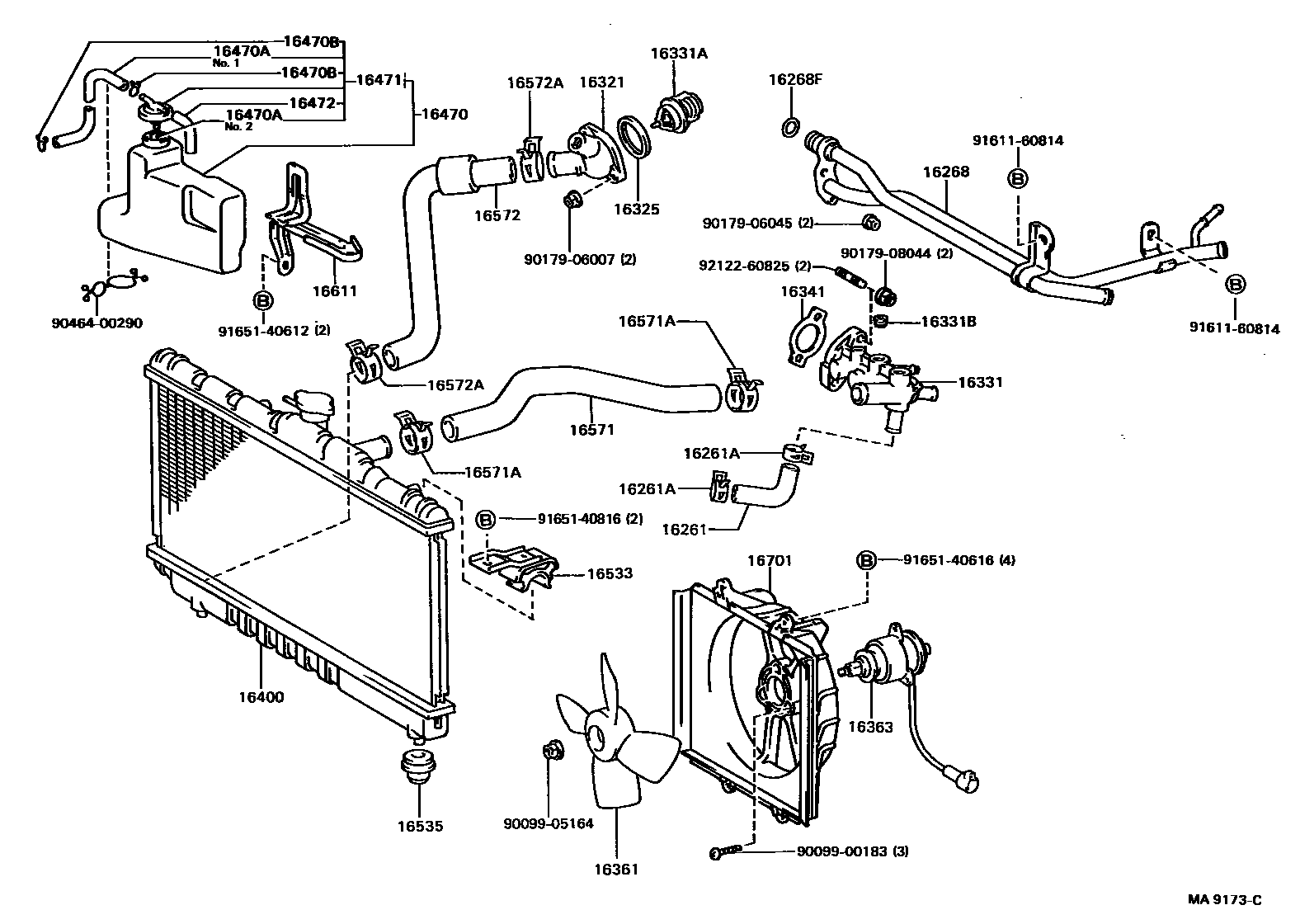

Toyota CAMRY — RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
16331BPLUG(FOR WATER OUTLET)
16341GASKET, WATER OUTLET
16361FAN
16363MOTOR, COOLING FAN
NO.1
NO.2
16400RADIATOR ASSY
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600
L=600(*H,L=170),NO.2
L=1800(*H,L=450),NO.1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
9009900183
main90099-00183
9009905164
9017906007
9017906045
9017908044
9046400290
9161160814
9165140612
9165140616
9165140816
9212260825
37 parts on this diagram · 3 diagrams in section
