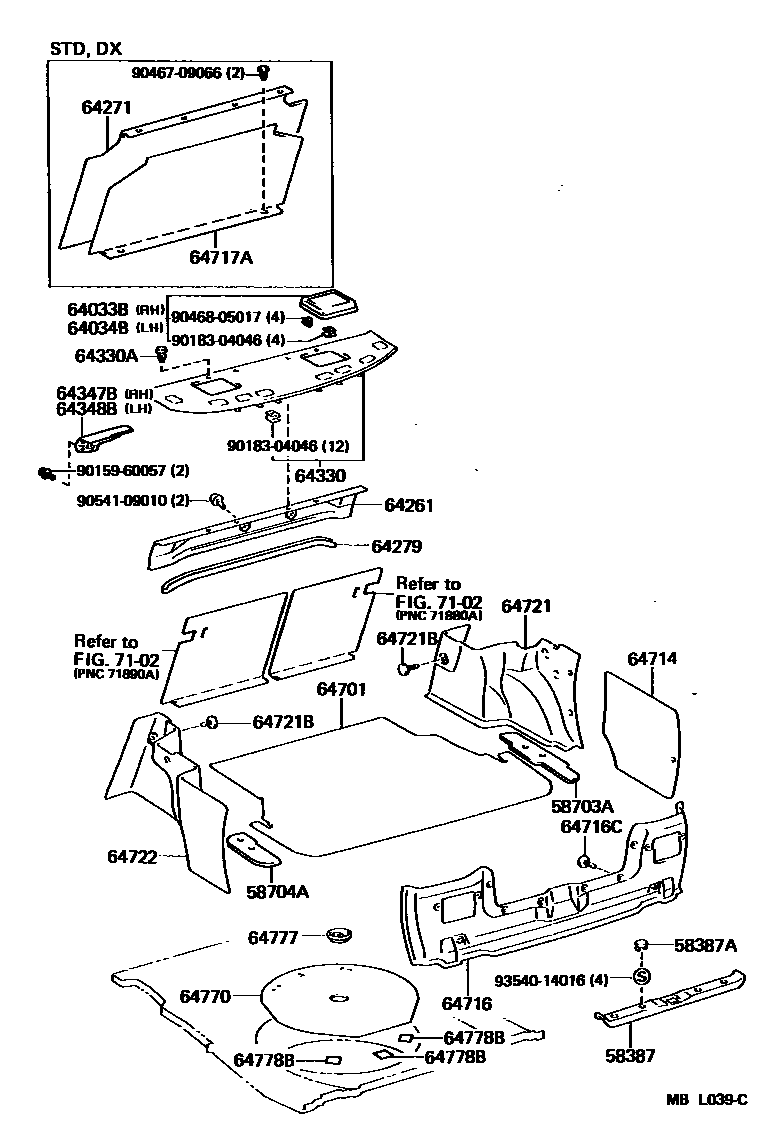

Toyota CAMRY — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
LIGHT GRAY,TRIM1#,3#,4#,8#
GRAY,LIGHT GRAY,TRIM1#
58387APLUG, HOLE(FOR REAR FLOOR FINISH PLATE)
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
MAROON,TRIM3#
MAROON,MEDIUM GRAY,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BLUE,DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
MAROON,TRIM3#
MAROON,MEDIUM GRAY,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BLUE,DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
64261GARNISH, ROOM PARTITION
64271BOARD, ROOM PARTITION, NO.1
64279PROTECTOR, ROOM PARTITION
MAROON,TRIM3#
MAROON,MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BLUE,DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
64330PANEL ASSY, PACKAGE TRAY TRIM
W/O SPEAKER GRILLE,MAROON,MAROON,TRIM3#
W/O SPEAKER GRILLE,GRAY,MEDIUM GRAY,TRIM1#
W/O SPEAKER GRILLE,BLUE,DARK BLUE,TRIM8#
W/O SPEAKER GRILLE,BEIGE,DARK BEIGE,TRIM4#
W/O SPEAKER GRILLE,MAROON,MAROON,TRIM3#
W/O SPEAKER GRILLE,GRAY,MEDIUM GRAY,TRIM1#
W/O SPEAKER GRILLE,BLUE,DARK BLUE,TRIM8#
W/O SPEAKER GRILLE,BEIGE,DARK BEIGE,TRIM4#
W/SPEAKER GRILLE,MAROON,MAROON,TRIM3#
W/SPEAKER GRILLE,GRAY,MEDIUM GRAY,TRIM1#
W/SPEAKER GRILLE,BEIGE,DARK BEIGE,TRIM4#
W(SPEAKER GRILLE),MAROON,TRIM3#
W/SPEAKER GRILLE,MAROON,MAROON,TRIM3#
W(SPEAKER GRILLE),MEDIUM GRAY,TRIM1#
W/SPEAKER GRILLE,GRAY,MEDIUM GRAY,TRIM1#
W(SPEAKER GRILLE),DARK BLUE,TRIM8#
W(SPEAKER GRILLE),DARK BEIGE,TRIM4#
W/SPEAKER GRILLE,BEIGE,DARK BEIGE,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
64347BBRACKET, PACKAGE TRAY REINFORCEMENT, RH
64348BBRACKET, PACKAGE TRAY REINFORCEMENT, LH
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
LIGHT GRAY,TRIM1#,3#,4#,8#
BASE GRADE,GRAY,LIGHT GRAY,TRIM1#
GRAY,LIGHT GRAY,TRIM1#
GRAY,LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#,3#,4#,8#
64714COVER, LUGGAGE COMPARTMENT, RH
LIGHT GRAY,TRIM1#,3#,4#,8#
GRAY,LIGHT GRAY,TRIM1#
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
LIGHT GRAY,TRIM1#,3#,4#,8#
GRAY,LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#,3#,4#,8#
LIGHT GRAY,TRIM1#,3#,8#
LIGHT GRAY,TRIM1#,3#,4#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
GRAY,LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#,3#,4#,8#
LIGHT GRAY,TRIM1#,3#,8#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
GRAY,LIGHT GRAY,TRIM1#
GRAY,LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#,3#,4#,8#
LIGHT GRAY,TRIM1#,3#,4#,8#
GRAY,TRIM1#,3#,8#
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
GRAY,TRIM1#,3#,4#,8#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
GRAY,LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#,3#,4#,8#
GRAY,LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#,3#,4#,8#
GRAY,TRIM1#,3#,8#
64770COVER ASSY, SPARE WHEEL
64777CLAMP, SPARE WHEEL COVER
64778BPROTECTOR, SPARE WHEEL
BASE GRADE
7102
9015960057
9018304046
9046709066
9046805017
9054109010
9354014016
31 parts on this diagram · 2 diagrams in section
