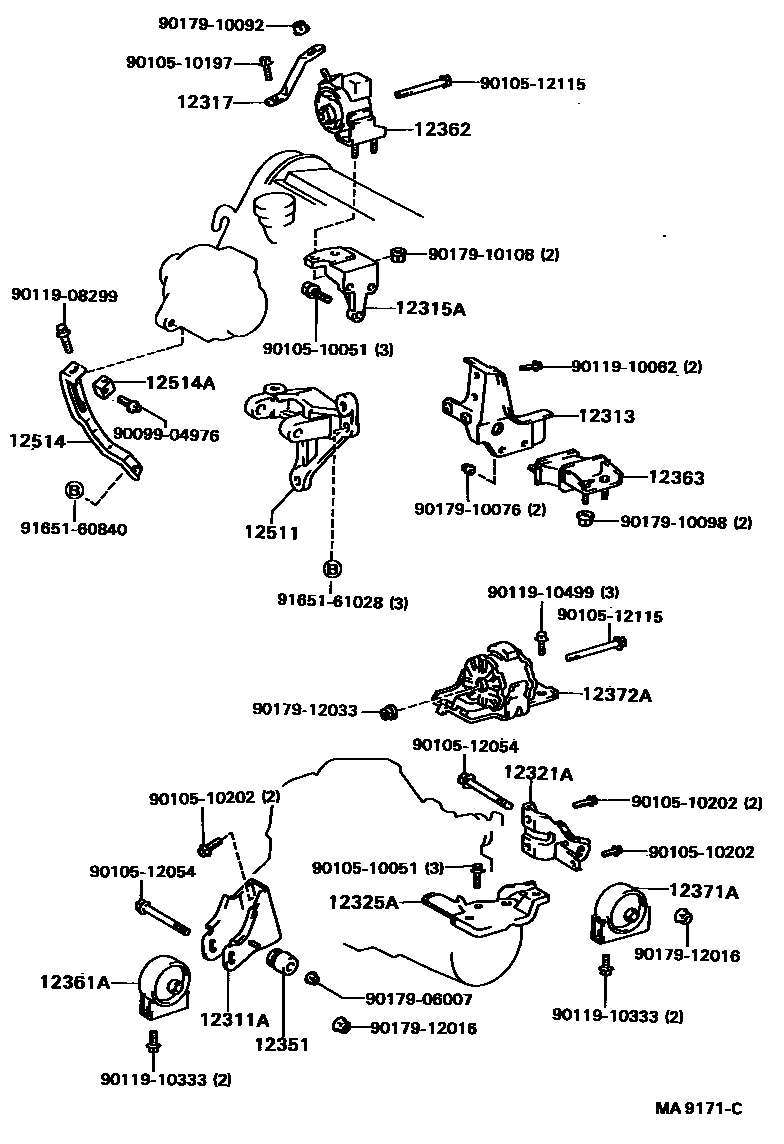

Toyota CAMRY — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-62010i2VZFE..VZV21¥3,310198802-198808

main12311-74030i3SFE..SV21¥2,500198608-198805

main12311-74030i3SFE..SV21¥2,500198805-198808

main12311-74050i3SFE..SV25¥2,510198710-198808

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-62010i2VZFE..VZV21¥2,510198802-198808

main12313-74020i3SFE..SV21¥2,510198808-198808

sub12313-74021¥1,970

main12313-74020i3SFE..SV21¥2,510198608-198805

sub12313-74021¥1,970

main12313-74020i3SFE..SV21..5F¥2,510198805-198808

sub12313-74021¥1,970

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-62020i2VZFE..VZV21¥6,500198802-198808

main12315-74030i3SFE..SV2#¥3,480198710-198805

main12315-74030i3SFE..SV2#¥3,480198805-198808

main12315-74030i3SFE..SV21¥3,480198608-198710

12317STAY, ENGINE MOUNTING, RH

main12317-62020i2VZFE..VZV21¥3,270198802-198808

main12317-74010i3SFE..SV2#¥1,960198710-198808

main12317-74010i3SFE..SV21¥1,960198608-198710

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-62010i2VZFE..VZV21..5F¥1,560198802-198808

main12321-62030i2VZFE..VZV21..4FC¥1,560198802-198808

main12321-64110i3SFE..SV21..5F¥2,490198608-198808

main12321-64120i3SFE..SV21..4FC¥1,560198608-198808

main12321-74060i3SFE..SV25¥1,550198710-198808

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-62010i2VZFE..VZV21..5F¥3,310198710-198808

main12325-62020i2VZFE..VZV21..4FC¥2,490198802-198808

main12325-74030i3SFE..SV21..5F¥2,510198608-198808

sub12325-74031¥2,490

main12325-74031i3SFE..SV21..5F¥2,490198808-198808

main12325-74040i3SFE..SV21..4FC¥2,050198608-198706

sub12325-74041¥2,030

main12325-74041i3SFE..SV21..4FC¥2,030198706-198808

12351DAMPER, ENGINE MOUNTING

main12351-63010i3SFE..SV25¥3,010198710-198808

main12351-64020i3SFE..SV21..4FC¥3,310198710-198808

main12351-64020i3SFE..SV21¥3,310198608-198710

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-62011i2VZFE..VZV21..5F¥8,800198802-198808

main12361-62020i2VZFE..VZV21..4FC¥7,500198802-198808

sub12361-64120¥8,800

main12361-64120i3SFE..SV21..4FC¥8,800198608-198808

main12361-74010i3SFE..SV25¥7,900198710-198808

sub12361-74150¥7,900

main12361-74020i3SFE..SV21..5F¥8,800198608-198808

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-62020i2VZFE..VZV21¥13,600198802-198808

main12362-74030i3SFE..SV21¥16,500198608-198808

main12362-74060i3SFE..SV25¥16,500198710-198808

12363INSULATOR, ENGINE MOUNTING, CENTER

main12363-74010i3SFE..SV21..4FC¥7,100198805-198808

MARUYASU

main12363-74010i2VZFE..VZV21¥7,100198710-198805

MARUYASU

main12363-74030i3SFE..SV21..4FC¥7,100198805-198808

TOYO GOMU

main12363-74030i3SFE..SV21¥7,100198608-198710

main12363-74030i3SFE..SV21¥7,100198710-198805

TOYO GOMU

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-62011i2VZFE..VZV21..5F¥8,800198802-198808

main12371-62020i2VZFE..VZV21..4FC¥6,700198802-198808

main12371-64100i3SFE..SV21..4FC¥7,100198608-198805

main12371-74030i3SFE..SV21..5F¥8,800198608-198808

main12371-74060i3SFE..SV25¥6,000198710-198808

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-62010i2VZFE..VZV21..5F¥19,700198802-198808

sub12372-62030¥10,800

main12372-62020i2VZFE..VZV21..4FC¥19,700198802-198808

sub12372-62040¥10,800

main12372-74040i3SFE..SV21..5F¥19,700198608-198808

main12372-74050i3SFE..SV21..4FC¥19,700198710-198802

main12372-74050i3SFE..SV21..4FC¥19,700198608-198710

main12372-74052i3SFE..SV21..4FC¥20,600198802-198805

sub12372-64071¥19,700

main12372-74080i3SFE..SV25¥16,500198710-198808

main12372-74190i3SFE..SV21..4FC¥11,200198805-198808

12511BRACKET, ALTERNATOR, NO.1

main12511-74020i3SFE..SV21¥3,560198608-198710

sub12511-74051¥6,400

main12511-74020i3SFE..SV2#¥3,560198710-198808

sub12511-74051¥6,400

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-74010i3SFE..SV21¥1,270198608-198710

sub12514-74011¥1,260

main12514-74010i3SFE..SV2#¥1,270198710-198808

sub12514-74011¥1,260

12514ASLIDER, FAN BELT ADJUSTING

main16385-64011i3SFE..SV21¥910198608-198710

main16385-64011i3SFE..SV2#¥910198710-198808

9009904976

main90099-04976¥0

9010510051

main90105-10051¥210

9010510197

main90105-10197¥160

9010510202

main90105-10202¥250

9010512054

main90105-12054¥370

9010512115

main90105-12115¥520

9011908299

main90119-08299¥190

9011910062

main90119-10062¥250

9011910333

main90119-10333¥200

9011910499

main90119-10499¥200

9017906007

main90179-06007¥80

9017910076

main90179-10076¥200

9017910092

main90179-10092¥140

9017910098

main90179-10098¥230

9017910108

main90179-10108¥150

9017912016

main90179-12016¥140

9017912033

main90179-12033¥370

9165160840

main91651-60840¥90

9165161028

main91651-61028¥90

34 parts on this diagram · 5 diagrams in section
