Toyota CAMRY — MIRROR

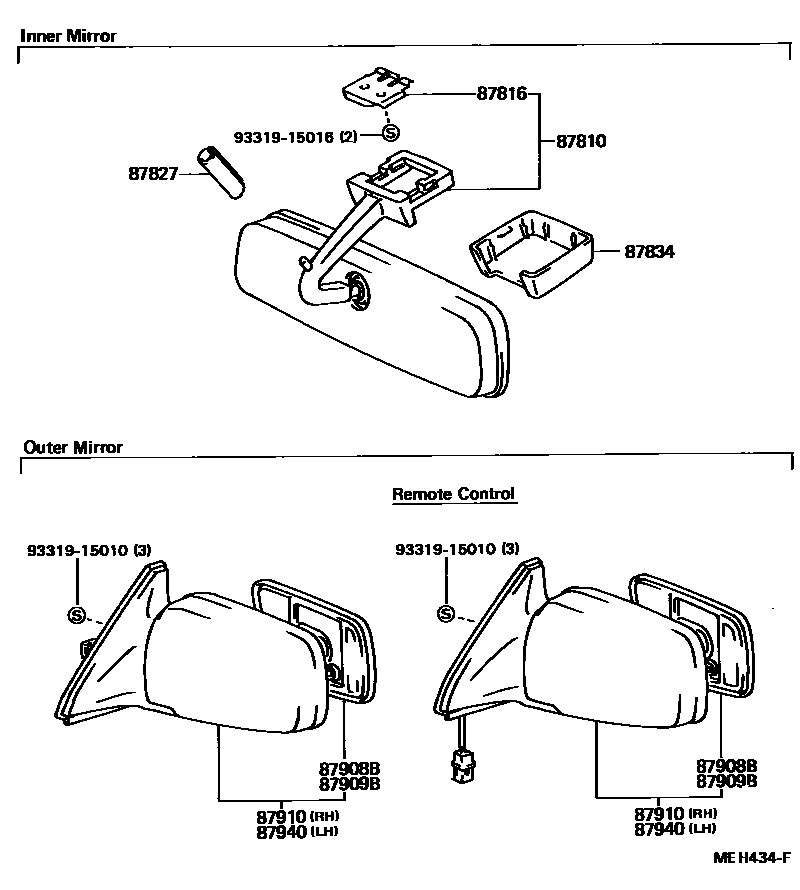

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-22190-02i198710-198808
MAROON,TRIM3#
sub87810-22190¥8,000
main87810-22190-02i198608-198710
MAROON,MAROON,TRIM3#
sub87810-22190¥8,000
main87810-22190-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub87810-22190¥8,000
main87810-22190-04i198710-198807
DARK BLUE,TRIM8#
sub87810-22190¥8,000
main87810-22190-13i198710-198807
MEDIUM GRAY,TRIM1#
sub87810-22190¥8,000
main87810-22190-13i198608-198710
GRAY,MEDIUM GRAY,TRIM1#
sub87810-22190¥8,000
main87810-22190-15i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub87810-22190¥8,000
main87810-22190-15i198710-198808
DARK BEIGE,TRIM4#
sub87810-22190¥8,000
main87810-22190-B0i198807-198808
MEDIUM GRAY,MEDIUM GRAY,TRIM1#
sub87810-22190¥8,000
main87810-22190-J0i198807-198808
DARK BLUE,DARK BLUE,TRIM8#
sub87810-22190¥8,000
87816SPRING, INNER REAR VIEW MIRROR
main74372-30030i¥190198608-198710
main74372-30030i¥190198710-198808
87827ABSORBER, INNER REAR VIEW MIRROR
main87828-87003i¥380198610-198710
L=44
main87828-87003i¥380198710-198808
L=44
main87828-87005i¥440198608-198710
L=49
main87828-87005i¥440198710-198808
L=49
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-20080-12i198710-198808
MAROON,TRIM3#
sub87834-20080¥260
main87834-20080-12i198608-198710
MAROON,MAROON,TRIM3#
sub87834-20080¥260
main87834-20080-33i198608-198710
GRAY,GRAY,TRIM1#,8#
sub87834-20080¥260
main87834-20080-33i198710-198808
GRAY,TRIM1#,8#
sub87834-20080¥260
main87834-20080-34i198802-198808
DEEP BLUE,TRIM8#
sub87834-20080¥260
main87834-20080-34i198608-198710
BLUE,DEEP BLUE,TRIM8#
sub87834-20080¥260
main87834-20080-34i198710-198802
DEEP BLUE,TRIM8#
sub87834-20080¥260
main87834-20080-55i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub87834-20080¥260
87908BMIRROR SUB-ASSY, RH
main87931-32210i¥2,170198710-198808
main87931-32210i¥2,170198608-198710
main87931-32220i¥2,170198710-198808
main87931-32220i¥2,170198608-198710
87909BMIRROR SUB-ASSY, LH
main87961-32220i¥2,170198710-198808
main87961-32220i¥2,170198608-198710
main87961-32230i¥2,170198608-198710
main87961-32230i¥2,170198710-198808
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-32210i¥15,700198710-198808
LEVER *RCM
main87910-32210i¥15,700198608-198710
LEVER *RCM
main87910-32220-01i198608-198708
BLACK,BLACK
sub87910-32340¥20,700
main87910-32340-01i198710-198808
BLACK,202
sub87910-32340¥20,700
main87910-32340-01i198708-198710
BLACK,BLACK
sub87910-32340¥20,700
main87910-32340-02i198710-198808
DARK RED MC,3H3
sub87910-32340¥20,700
main87910-32340-02i198708-198710
DARK RED M.,DARK RED MC
sub87910-32340¥20,700
main87910-32340-03i198608-198708
GRAY,GRAY METALLIC,TRIM1#
sub87910-32340¥20,700
main87910-32340-03i198708-198710
GRAY,GRAY METALLIC,TRIM1#
sub87910-32340¥20,700
main87910-32340-03i198710-198808
GRAY METALLIC,167
sub87910-32340¥20,700
main87910-32340-04i198708-198710
BLUE M.,BLUE MICA,TRIM8#
sub87910-32340¥20,700
main87910-32340-04i198710-198808
BLUE MICA,21C ,8E3
sub87910-32340¥20,700
main87910-32340-04i198608-198708
BLUE M.,BLUE MICA,TRIM8#
sub87910-32340¥20,700
main87910-32340-05i198708-198710
GRAYISH BROWN M.,GRAYISH BROWN-M,TRIM1#
sub87910-32340¥20,700
main87910-32340-05i198710-198808
GRAYISH BROWN-M,26G
sub87910-32340¥20,700
main87910-32340-08i198708-198710
SUPER WHITE,SUPER WHITE
sub87910-32340¥20,700
main87910-32340-08i198710-198808
SUPER WHITE,040
sub87910-32340¥20,700
main87910-32340-12i198708-198710
RED M.,RED MC
sub87910-32340¥20,700
main87910-32340-12i198710-198808
RED MC,3H4
sub87910-32340¥20,700
main87910-32340-13i198710-198808
SILVER-M,164
sub87910-32340¥20,700
main87910-32340-13i198708-198710
SILVER M.,SILVER-M
sub87910-32340¥20,700
main87910-32340-14i198708-198710
LIGHT BLUE M.,LIGHT BLUE-M,TRIM8#
sub87910-32340¥20,700
main87910-32340-14i198710-198808
LIGHT BLUE-M,8D8
sub87910-32340¥20,700
main87910-32340-23i198710-198808
ROSE GRAY-M,3C7
sub87910-32340¥20,700
main87910-32340-23i198708-198710
ROSE GRAY M.,ROSE GRAY-M,TRIM1#
sub87910-32340¥20,700
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-32200i198708-198710
FIXED TYPE
main87940-32200i198710-198808
FIX TYPE
main87940-32200i198612-198708
FIXED TYPE
main87940-32220i¥15,700198710-198808
LEVER *RCM
main87940-32220i¥15,700198608-198710
LEVER *RCM
main87940-32230-01i198608-198708
BLACK,BLACK
sub87940-32350¥20,700
main87940-32350-01i198710-198808
BLACK,202
sub87940-32350¥20,700
main87940-32350-01i198708-198710
BLACK,BLACK
sub87940-32350¥20,700
main87940-32350-02i198708-198710
DARK RED M.,DARK RED MC
sub87940-32350¥20,700
main87940-32350-02i198710-198808
DARK RED MC,3H3
sub87940-32350¥20,700
main87940-32350-03i198710-198808
GRAY METALLIC,167
sub87940-32350¥20,700
main87940-32350-03i198608-198708
GRAY,GRAY METALLIC,TRIM1#
sub87940-32350¥20,700
main87940-32350-03i198708-198710
GRAY,GRAY METALLIC,TRIM1#
sub87940-32350¥20,700
main87940-32350-04i198710-198808
BLUE MICA,21C ,8E3
sub87940-32350¥20,700
main87940-32350-04i198608-198708
BLUE M.,BLUE MICA,TRIM8#
sub87940-32350¥20,700
main87940-32350-04i198708-198710
BLUE M.,BLUE MICA,TRIM8#
sub87940-32350¥20,700
main87940-32350-05i198708-198710
GRAYISH BROWN M.,GRAYISH BROWN-M,TRIM1#
sub87940-32350¥20,700
main87940-32350-05i198710-198808
GRAYISH BROWN-M,26G
sub87940-32350¥20,700
main87940-32350-08i198708-198710
SUPER WHITE,SUPER WHITE
sub87940-32350¥20,700
main87940-32350-08i198710-198808
SUPER WHITE,040
sub87940-32350¥20,700
main87940-32350-12i198708-198710
RED M.,RED MC
sub87940-32350¥20,700
main87940-32350-12i198710-198808
RED MC,3H4
sub87940-32350¥20,700
main87940-32350-13i198710-198808
SILVER-M,164
sub87940-32350¥20,700
main87940-32350-13i198708-198710
SILVER M.,SILVER-M
sub87940-32350¥20,700
main87940-32350-14i198710-198808
LIGHT BLUE-M,8D8
sub87940-32350¥20,700
main87940-32350-14i198708-198710
LIGHT BLUE M.,LIGHT BLUE-M,TRIM8#
sub87940-32350¥20,700
main87940-32350-23i198710-198808
ROSE GRAY-M,3C7
sub87940-32350¥20,700
main87940-32350-23i198708-198710
ROSE GRAY M.,ROSE GRAY-M,TRIM1#
sub87940-32350¥20,700
9331915010
main93319-15010¥70
9331915016
main93319-15016¥140

10 parts on this diagram · 1 diagram in section
