Toyota CAMRY — FRONT FENDER APRON & DASH PANEL

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-32010iSV2#,VZV21¥8,400198608-198808

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-32040iSV21¥3,540198608-198804

main53208-32090iSV2#,VZV21¥3,540198805-198808

sub53208-32040¥3,540

53211SUPPORT, RADIATOR, RH

main53211-32900iSV21¥8,400198608-198808

53212SUPPORT, RADIATOR, LH

main53212-32900iSV21¥8,400198608-198808

53217BBRACE, RADIATOR SUPPORT TO CROSSMEMBER

main53217-32030iSV21¥1,680198608-198808

RH

main53218-32030iSV21¥1,680198608-198808

LH

53382BUMPER, HOOD, FRONT

main53382-12040iSV21¥510198608-198711

main53382-32020iSV2#,VZV21¥390198708-198808

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-32909iSV21¥39,400198608-198808

sub53701-32911¥39,400

main53701-32910iSV25..LE¥39,800198710-198802

W(UNTI-LOCK BRAKE SYSTEM)

sub53701-32912¥39,400

sub78195-32051¥2,170

sub90119-10487¥190

main53701-32911iVZV21¥39,400198802-198808

main53701-32912iSV25..LE¥39,400198802-198808

W(UNTI-LOCK BRAKE SYSTEM)

sub53701-32911¥39,400

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-32908iSV21¥39,400198608-198808

sub53702-32911¥32,500

53709ADAMPER SUB-ASSY, FRONT FENDER APRON

main53709-32020iSV2#,VZV21¥6,000198608-198808

53711BAPRON, FRONT FENDER, FRONT RH

main53711-32030iSV21¥9,100198608-198808

sub53711-32080¥9,100

main53711-32070iSV25..LE¥9,100198710-198802

W(UNTI-LOCK BRAKE SYSTEM)

sub53711-32071¥9,100

sub78195-32051¥2,170

sub90119-10487¥190

main53711-32071iSV25..LE¥9,100198802-198808

W(UNTI-LOCK BRAKE SYSTEM)

sub53711-32080¥9,100

main53711-32080iVZV21¥9,100198802-198808

53712BAPRON, FRONT FENDER, FRONT LH

main53712-32030iSV21¥9,100198608-198808

53717APLATE, FENDER APRON

main53717-32010iVZV21¥620198802-198808

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-32020iSV21¥6,700198608-198808

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-32020iSV21¥6,700198608-198808

53736SEAL, FRONT FENDER APRON, RH

main53736-32020iSV21¥4,590198608-198808

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-09063iSV21¥120198608-198808

53737BSEAL, FRONT FENDER APRON, LH

main53737-32020iSV21¥4,590198608-198808

53738ASEAL, FRONT FENDER APRON, REAR RH

main53738-32020iSV21¥850198608-198808

55101PANEL SUB-ASSY, DASH

main55101-32111iSV21,VZV21..4FC¥25,700198710-198808

sub55101-32112¥25,700

main55101-32170iSV21..5F¥28,200198608-198710

sub55101-32171¥28,200

main55101-32180iSV21..4FC¥28,200198608-198710

sub55101-32210¥25,700

main55101-32191iSV2#,VZV21..5F¥28,200198802-198808

sub55101-32192¥28,700

55210INSULATOR ASSY, DASH PANEL

main55210-32040iSV2#,VZV21¥25,500198608-198808

55223AINSULATOR, DASH PANEL, OUTER

main55223-32040iVZV21¥16,300198802-198808

sub55223-32041¥16,300

57161CROSSMEMBER, FRONT

main57104-32901iSV21¥14,800198608-198808

sub57104-32905¥20,400

57167GUSSET, FRONT CROSSMEMBER, UPPER RH

main57167-32030iSV2#,VZV21¥2,230198710-198808

57168GUSSET, FRONT CROSSMEMBER, UPPER LH

main57168-32030iSV2#,VZV21¥2,230198710-198808

57173AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH

main57173-32020iSV2#,VZV21¥400198710-198808

57174AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH

main57174-32010iSV2#,VZV21¥400198710-198808

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-32060iSV21..5F¥18,200198608-198808

main57301-32070iSV21,VZV21..4FC¥18,200198608-198808

9017008028

main90170-08028¥120

9017908061

main90179-08061¥80

9033330002

main90333-30002¥70

9095001060

main90950-01060¥200

9095001148

main90950-01148¥120

9095001189

main90950-01189¥240

9095001518

main90950-01518¥110

9095001539

main90950-01539¥110

9165140612

main91651-40612¥70

9165140618

main91651-40618¥260

9165160612

main91651-60612¥90

9165640616

main91656-40616¥100

9412040800

main94120-40800¥90

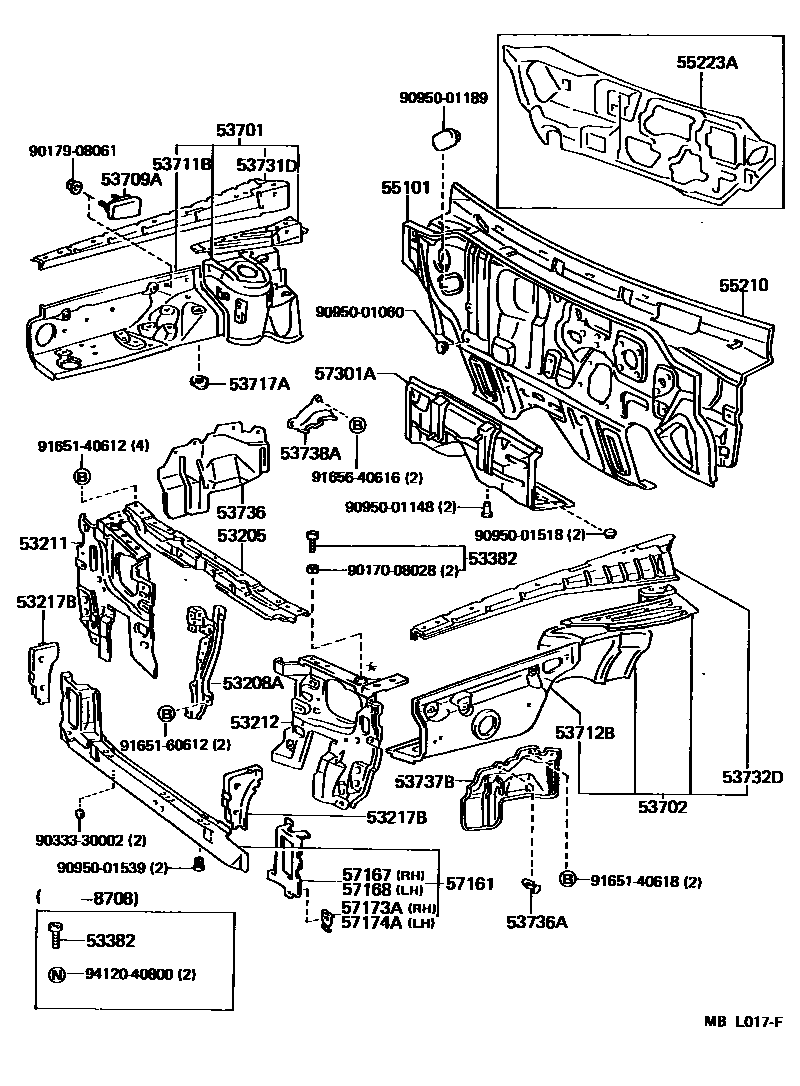

40 parts on this diagram · 1 diagram in section
