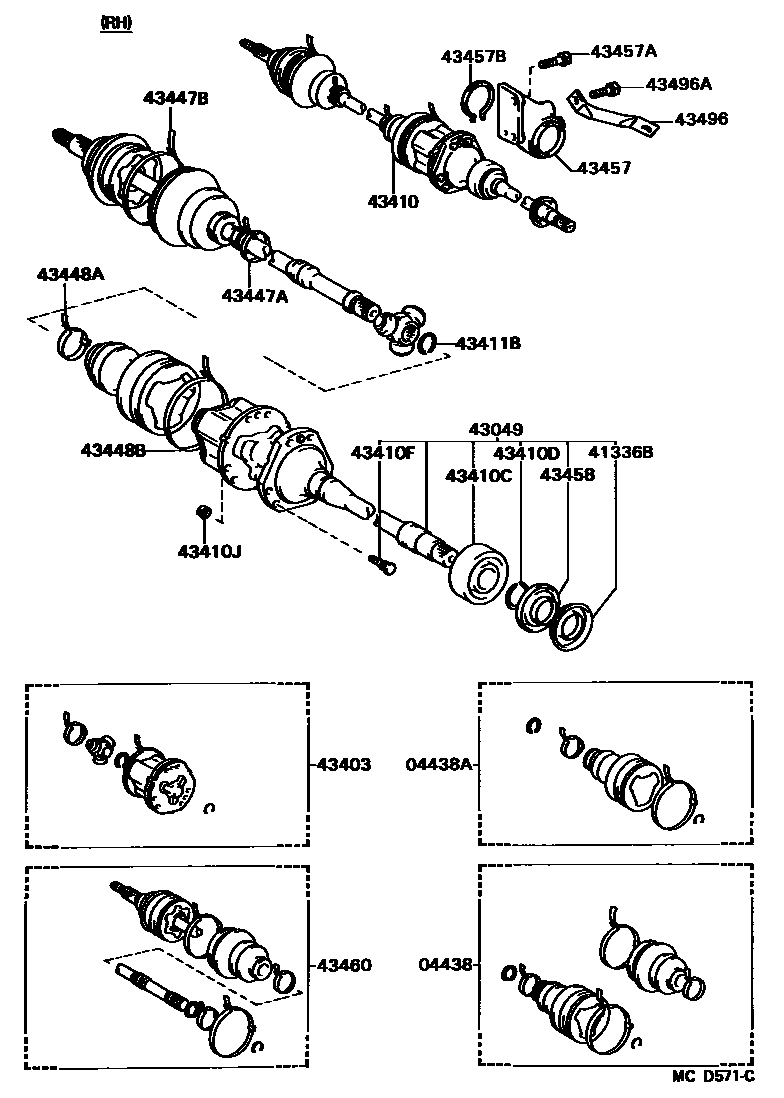

Toyota CAMRY — FRONT DRIVE SHAFT
04438BOOT KIT, FRONT DRIVE SHAFT
04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
41336BCOVER, DUST(FOR FRONT DRIVE SHAFT)
RH
W(UNTI-LOCK BRAKE SYSTEM),LH
LH
W(UNTI-LOCK BRAKE SYSTEM),RH
LH
43049SHAFT SUB-ASSY, FRONT DRIVE FLANGE
43403JOINT SET, FRONT AXLE INBOARD, RH
43410SHAFT ASSY, FRONT DRIVE, RH
W(ANTI-LOCK BRAKE SYSTEM)
43410CBEARING (FOR FRONT DRIVE SHAFT)
43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)
43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)
43410JNUT (FOR FRONT DRIVE SHAFT)
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
W(ANTI-LOCK BRAKE SYSTEM)
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
W(ANTI-LOCK BRAKE SYSTEM)
43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
W(ANTI-LOCK BRAKE SYSTEM)
43457BRACKET, DRIVE SHAFT BEARING
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX19.8-8.3,*10-1.25PX14.8-8.3
43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
43458COVER, FRONT DRIVE SHAFT DUST
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43496STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.1
43496ABOLT (FOR DRIVE SHAFT BEARING BRACKET STAY)
22 parts on this diagram · 7 diagrams in section
