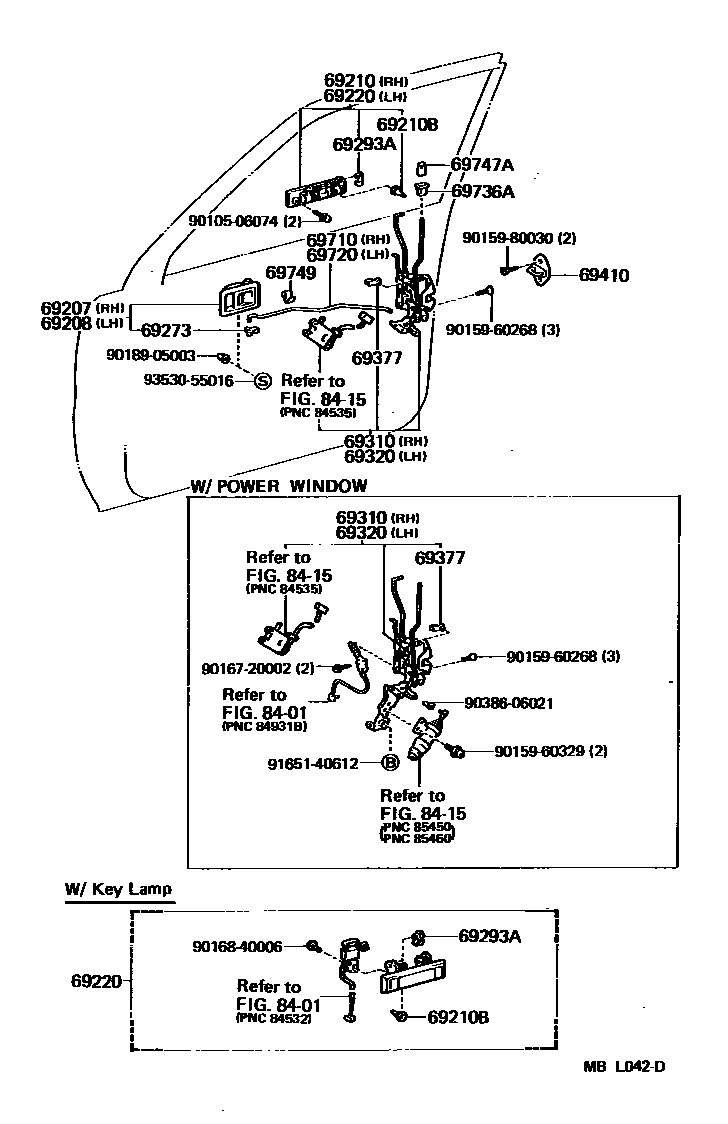

Toyota CAMRY — FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-32020-02iSV2#,VZV21..(DX,STD)..USA198710-198808

MAROON,TRIM3#

sub69205-32020¥1,920

main69205-32020-02iSV21..(DX,STD)..USA198608-198710

MAROON,MAROON,TRIM3#

sub69205-32020¥1,920

main69205-32020-03iSV21..DX,STD198608-198710

GRAY,MEDIUM GRAY,TRIM1#

sub69205-32020¥1,920

main69205-32020-03iSV2#,VZV21..DX,STD198710-198808

MEDIUM GRAY,TRIM1#

sub69205-32020¥1,920

main69205-32020-04iSV21..DX,STD198608-198710

BLUE,DARK BLUE,TRIM8#

sub69205-32020¥1,920

main69205-32020-04iSV2#,VZV21..DX,STD198710-198808

DARK BLUE,TRIM8#

sub69205-32020¥1,920

main69205-32020-05iSV21..DX,STD198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub69205-32020¥1,920

main69205-32020-05iSV21,VZV21..DX,STD198710-198808

DARK BEIGE,TRIM4#

sub69205-32020¥1,920

main69205-32030-02iSV2#,VZV21..LE..USA198710-198808

MAROON,TRIM3#

sub69205-32030¥2,290

main69205-32030-02iSV21..LE..USA198608-198710

MAROON,MAROON,TRIM3#

sub69205-32030¥2,290

main69205-32030-03iSV2#,VZV21..LE198710-198808

MEDIUM GRAY,TRIM1#

sub69205-32030¥2,290

main69205-32030-03iSV21..LE198608-198710

GRAY,MEDIUM GRAY,TRIM1#

sub69205-32030¥2,290

main69205-32030-04iSV21..LE198608-198710

BLUE,DARK BLUE,TRIM8#

sub69205-32030¥2,290

main69205-32030-04iSV2#,VZV21..LE198710-198808

DARK BLUE,TRIM8#

sub69205-32030¥2,290

main69205-32030-05iSV21..LE198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub69205-32030¥2,290

main69205-32030-05iSV2#,VZV21..LE198710-198808

DARK BEIGE,TRIM4#

sub69205-32030¥2,290

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-32020-02iSV2#,VZV21..(DX,STD)..USA198710-198808

MAROON,TRIM3#

sub69206-32020¥1,920

main69206-32020-02iSV21..(DX,STD)..USA198608-198710

MAROON,MAROON,TRIM3#

sub69206-32020¥1,920

main69206-32020-03iSV21..DX,STD198608-198710

GRAY,MEDIUM GRAY,TRIM1#

sub69206-32020¥1,920

main69206-32020-03iSV2#,VZV21..DX,STD198710-198808

MEDIUM GRAY,TRIM1#

sub69206-32020¥1,920

main69206-32020-04iSV21..DX,STD198608-198710

BLUE,DARK BLUE,TRIM8#

sub69206-32020¥1,920

main69206-32020-04iSV2#,VZV21..DX,STD198710-198808

DARK BLUE,TRIM8#

sub69206-32020¥1,920

main69206-32020-05iSV21..DX,STD198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub69206-32020¥1,920

main69206-32020-05iSV21,VZV21..DX,STD198710-198808

DARK BEIGE,TRIM4#

sub69206-32020¥1,920

main69206-32030-02iSV2#,VZV21..LE..USA198710-198808

MAROON,TRIM3#

sub69206-32030¥2,290

main69206-32030-02iSV21..LE..USA198608-198710

MAROON,MAROON,TRIM3#

sub69206-32030¥2,290

main69206-32030-03iSV21..LE198608-198710

GRAY,MEDIUM GRAY,TRIM1#

sub69206-32030¥2,290

main69206-32030-03iSV2#,VZV21..LE198710-198808

MEDIUM GRAY,TRIM1#

sub69206-32030¥2,290

main69206-32030-04iSV21..LE198608-198710

BLUE,DARK BLUE,TRIM8#

sub69206-32030¥2,290

main69206-32030-04iSV2#,VZV21..LE198710-198808

DARK BLUE,TRIM8#

sub69206-32030¥2,290

main69206-32030-05iSV21..LE198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub69206-32030¥2,290

main69206-32030-05iSV2#,VZV21..LE198710-198808

DARK BEIGE,TRIM4#

sub69206-32030¥2,290

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-32030iSV21¥3,620198608-198710

main69210-32030iSV2#,VZV21¥3,620198710-198808

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iSV21¥310198608-198710

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-32030iSV21..DX,STD¥3,620198608-198710

main69220-32030iSV2#,VZV21..DX,STD¥3,620198710-198808

main69220-32040iSV21..LE¥6,700198608-198710

sub69220-32030¥3,620

main69220-32040iSV2#,VZV21..LE¥6,700198710-198808

sub69220-32030¥3,620

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-14050iSV21..DX,STD¥180198608-198710

RH

main69759-14050iSV2#,VZV21..DX,STD¥180198710-198808

RH

main69759-24010iSV2#,VZV21..LE¥180198710-198808

RH

main69759-24010iSV21..LE¥180198608-198710

RH

main69759-24020iSV2#,VZV21..LE¥180198710-198808

LH

main69759-24020iSV21..LE¥180198608-198710

LH

main69759-24070iSV21..DX,STD¥180198608-198710

LH

main69759-24070iSV2#,VZV21..DX,STD¥180198710-198808

LH

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iSV21¥200198608-198710

RH

main69293-12050iSV2#,VZV21..DX,STD¥200198710-198808

RH

main69293-12060iSV21¥200198608-198710

LH

main69293-12060iSV2#,VZV21..DX,STD¥200198710-198808

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-32140iSV21..USA¥9,100198608-198708

W/O *PW

main69310-32141iSV21..USA¥9,900198708-198710

W/O *PW

main69310-32141iSV2#,VZV21..USA¥9,900198710-198808

main69310-32170iSV21..LE..USA¥9,900198608-198708

W/*PW

main69310-32171iSV2#,VZV21..(DX,LE)..USA¥12,200198710-198808

W(POWER WINDOW)

main69310-32171iSV21..(DX,LE)..USA¥12,200198708-198710

W/*PW

main69310-32180iSV21..CND¥6,800198608-198708

W/O *PW

main69310-32181iSV21..CND¥9,900198708-198710

W/O *PW

main69310-32181iSV2#,VZV21..CND¥9,900198710-198808

main69310-32230iSV21..LE..CND¥7,600198608-198708

W/*PW

main69310-32231iSV21..(DX,LE)..CND¥9,900198708-198710

W/*PW

main69310-32231iSV2#,VZV21..(DX,LE)..CND¥9,900198710-198808

W(POWER WINDOW)

69320LOCK ASSY, FRONT DOOR, LH

main69320-32120iSV21..USA¥9,100198608-198708

W/O *PW

main69320-32121iSV2#,VZV21..USA¥9,900198710-198808

main69320-32121iSV21..USA¥9,900198708-198710

W/O *PW

main69320-32160iSV21..LE..USA¥9,900198608-198708

W/*PW

main69320-32161iSV2#,VZV21..(DX,LE)..USA¥12,200198710-198808

W(POWER WINDOW)

main69320-32161iSV21..(DX,LE)..USA¥12,200198708-198710

W/*PW

main69320-32170iSV21..CND¥6,800198608-198708

W/O *PW

main69320-32171iSV21..CND¥9,900198708-198710

W/O *PW

main69320-32171iSV2#,VZV21..CND¥9,900198710-198808

main69320-32220iSV21..LE..CND¥7,600198608-198708

W/*PW

main69320-32240iSV2#,VZV21..(DX,LE)..CND¥9,900198710-198808

W(POWER WINDOW)

main69320-32240iSV21..(DX,LE)..CND¥9,900198708-198710

W/*PW

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-24050iSV21¥240198608-198710

LH

main69759-24050iSV2#,VZV21¥240198710-198808

LH

main69759-24060iSV21¥290198608-198710

RH

main69759-24060iSV2#,VZV21¥290198710-198808

RH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iSV2#,VZV21¥710198710-198808

main69410-87001iSV21¥710198608-198710

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-32030iSV21¥640198608-198710

main69711-32030iSV2#,VZV21¥640198710-198808

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-32020iSV21¥640198608-198710

main69712-32020iSV2#,VZV21¥640198710-198808

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030iSV2#,VZV21¥450198710-198808

main69736-12030iSV21¥450198608-198710

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-32020-02iSV21..USA198608-198710

MAROON,MAROON,TRIM3#

sub69741-32020¥340

main69741-32020-02iSV2#,VZV21..USA198710-198808

MAROON,TRIM3#

sub69741-32020¥340

main69741-32020-03iSV2#,VZV21198710-198808

MEDIUM GRAY,TRIM1#

sub69741-32020¥340

main69741-32020-03iSV21198608-198710

GRAY,MEDIUM GRAY,TRIM1#

sub69741-32020¥340

main69741-32020-04iSV21198608-198710

BLUE,DARK BLUE,TRIM8#

sub69741-32020¥340

main69741-32020-04iSV2#,VZV21198710-198808

DARK BLUE,TRIM8#

sub69741-32020¥340

main69741-32020-05iSV21198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub69741-32020¥340

main69741-32020-05iSV25..LE;SV21,VZV21198710-198808

DARK BEIGE,TRIM4#

sub69741-32020¥340

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30020iSV21¥280198608-198710

main69749-30020iSV2#,VZV21¥280198710-198808

8401

8415

9010506074

main90105-06074¥120

9015960268

main90159-60268¥130

9015960329

main90159-60329¥120

9015980030

main90159-80030¥120

9016720002

main90167-20002¥120

9016840006

main90168-40006¥80

9018905003

main90189-05003¥130

9038606021

main90386-06021¥110

9165140612

main91651-40612¥70

9353055016

main93530-55016¥90

28 parts on this diagram · 2 diagrams in section
