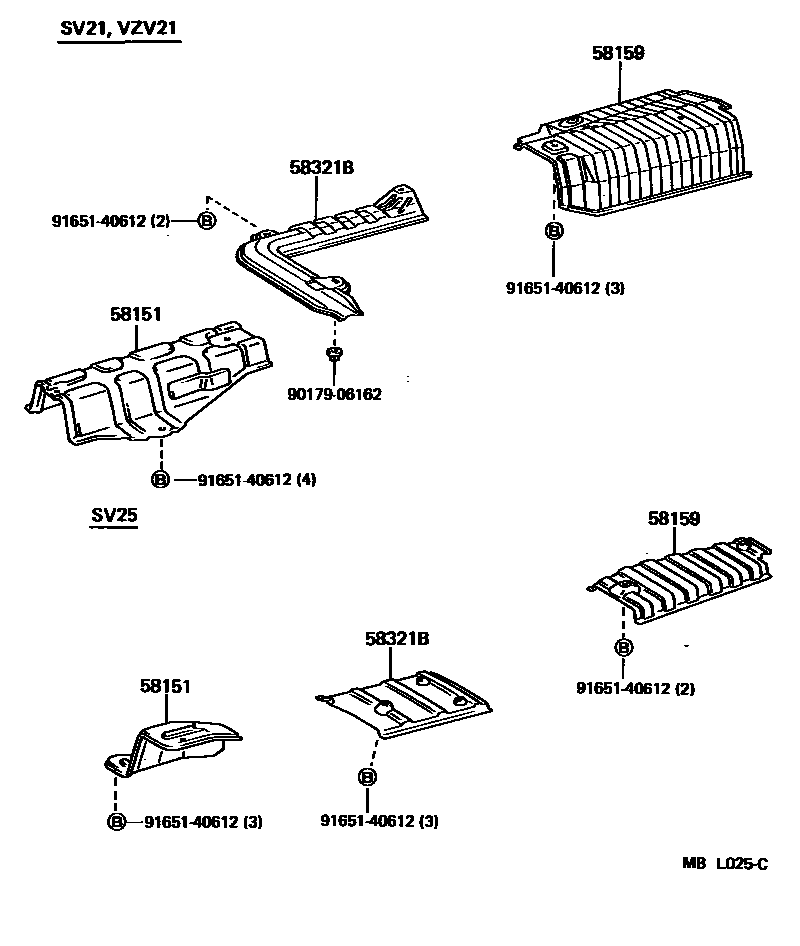

Toyota CAMRY — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58152-32020iVZV21¥6,600198802-198808

main58152-32030iSV25¥2,760198710-198808

58159INSULATOR, MAIN MAFFLAR HEAT

main58327-32020iSV21¥2,440198608-198808

main58327-32030iSV25¥1,850198710-198808

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-20040iSV25¥1,280198710-198808

main58321-32010iSV21¥1,950198608-198808

9017906162

main90179-06162¥130

9165140612

main91651-40612¥70

5 parts on this diagram · 1 diagram in section
