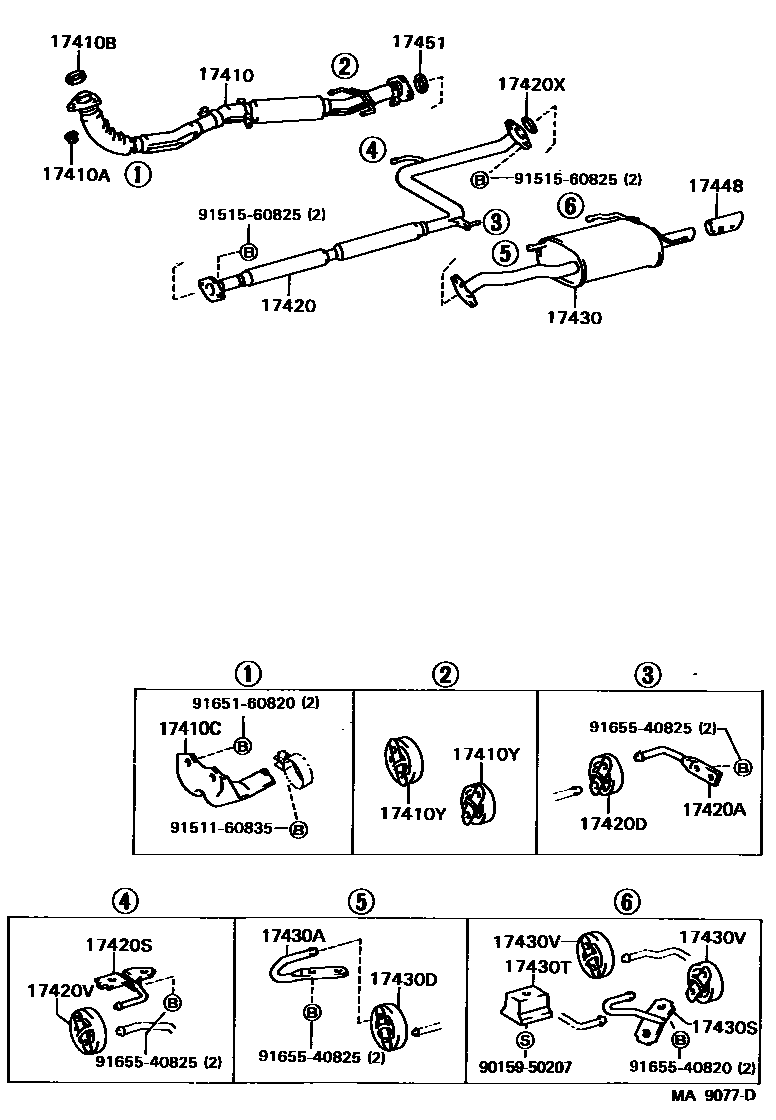

Toyota CAMRY — EXHAUST PIPE
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17420PIPE ASSY, EXHAUST, CENTER
17420ABRACKET, EXHAUST PIPE CENTER, FRONT
17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT
17420SBRACKET, EXHAUST PIPE CENTER, REAR
17420VBOLT OR RING, EXHAUST PIPE CENTER, REAR
17420XGASKET, EXHAUST PIPE, CENTER
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17448BAFFLE, TAILPIPE
17451GASKET, EXHAUST PIPE
9015950207
9151160835
9151560825
9165160820
9165540820
9165540825
25 parts on this diagram · 3 diagrams in section
