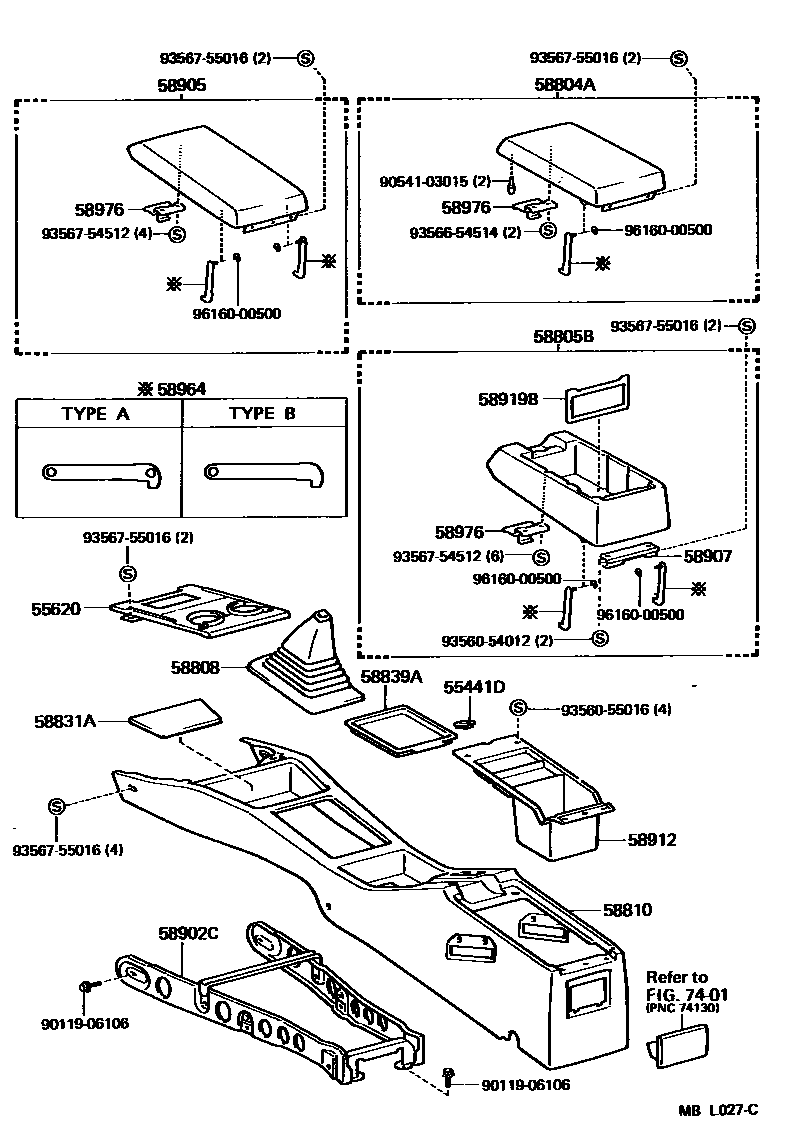

Toyota CAMRY — CONSOLE BOX & BRACKET
55441DBOX, INSTRUMENT PANEL COIN
BEIGE,TRIM4#
GRAY,TRIM1#
DARK BLUE,TRIM8#
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
58805BPANEL SUB-ASSY, CONSOLE, LOWER
MAROON,MAROON,TRIM3#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
58810CONSOLE ASSY
MAROON,TRIM3#
MAROON,MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
58839ACOVER, CONSOLE BOX HOLE
DARK BEIGE,TRIM4#
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BLUE,DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58912BOX, REAR CONSOLE, NO.2
58919BPLATE, CONSOLE BOX
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
TYPE A
LH
TYPE A
TYPE A
TYPE A
TYPE B
RH
TYPE B
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
7401
9011906106
9054103015
9356054012
9356055016
9356654514
9356754512
9356755016
9616000500
24 parts on this diagram · 2 diagrams in section
