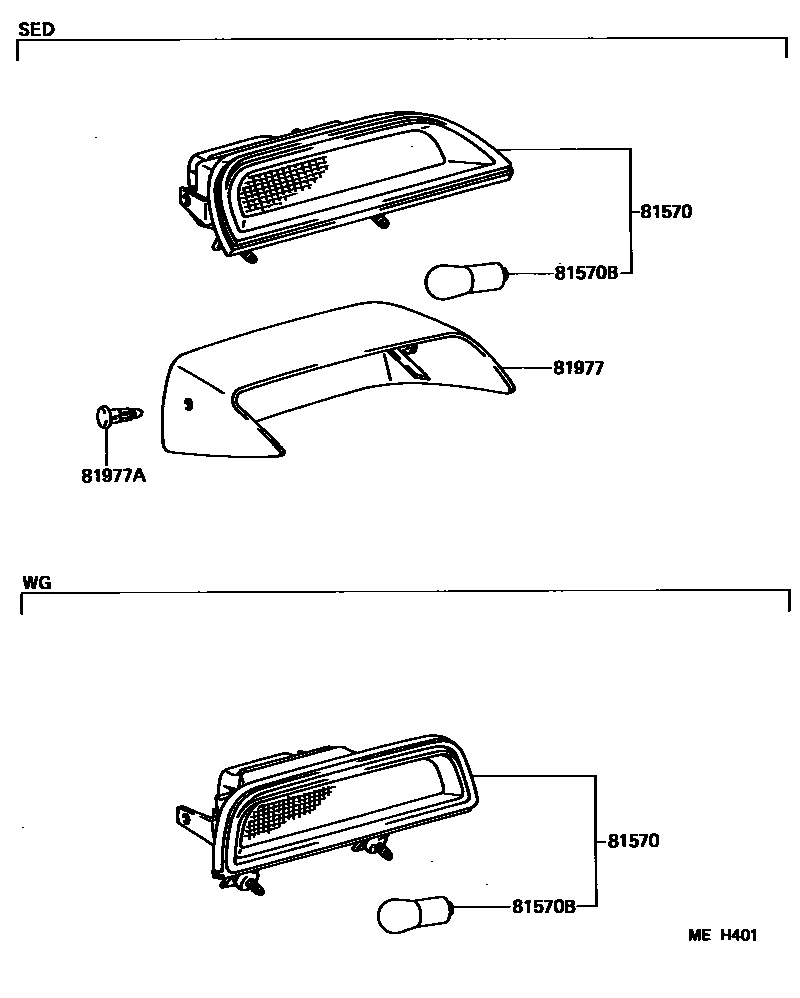

Toyota CAMRY — CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-32030iSV2#,VZV21..SED¥7,900198608-198808

main81570-32040iSV21..WG¥7,900198608-198808

81570BBULB (FOR CENTER STOP LAMP)

main99132-11270iSV21¥210198608-198710

12V 27W,12V 27W

main99132-11270iSV2#,VZV21¥210198710-198808

12V 27W

81977COVER, CENTER STOP LAMP

main81977-32030-02iSV21..SED..USA198608-198710

MAROON,MAROON,TRIM3#

sub81977-32030¥2,160

main81977-32030-02iSV2#,VZV21..SED..USA198710-198808

MAROON,TRIM3#

sub81977-32030¥2,160

main81977-32030-03iSV2#,VZV21..SED198710-198808

MEDIUM GRAY,TRIM1#

sub81977-32030¥2,160

main81977-32030-03iSV21..SED198608-198710

GRAY,MEDIUM GRAY,TRIM1#

sub81977-32030¥2,160

main81977-32030-04iSV21..SED198608-198710

BLUE,DARK BLUE,TRIM8#

sub81977-32030¥2,160

main81977-32030-04iSV2#,VZV21..SED198710-198808

DARK BLUE,TRIM8#

sub81977-32030¥2,160

main81977-32030-05iSV21..SED198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub81977-32030¥2,160

main81977-32030-05iSV25..LE;SV21,VZV21..SED198710-198808

DARK BEIGE,TRIM4#

sub81977-32030¥2,160

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07055-22iSV21..SED..USA198608-198710

MAROON,MAROON,TRIM3#

sub90467-07055¥160

main90467-07055-22iSV2#,VZV21..SED..USA198710-198807

MAROON,TRIM3#

sub90467-07055¥160

main90467-07055-24iSV21..SED198608-198710

BLUE,DARK BLUE,TRIM8#

sub90467-07055¥160

main90467-07055-24iSV2#,VZV21..SED198710-198807

DARK BLUE,TRIM8#

sub90467-07055¥160

main90467-07055-25iSV25..LE;SV21,VZV21..SED198710-198808

DARK BEIGE,TRIM4#

sub90467-07055¥160

main90467-07055-25iSV21..SED198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub90467-07055¥160

main90467-07055-43iSV2#,VZV21..SED198710-198807

MEDIUM GRAY,TRIM1#

sub90467-07055¥160

main90467-07055-43iSV21..SED198608-198710

GRAY,MEDIUM GRAY,TRIM1#

sub90467-07055¥160

4 parts on this diagram · 1 diagram in section
